Mosmatic

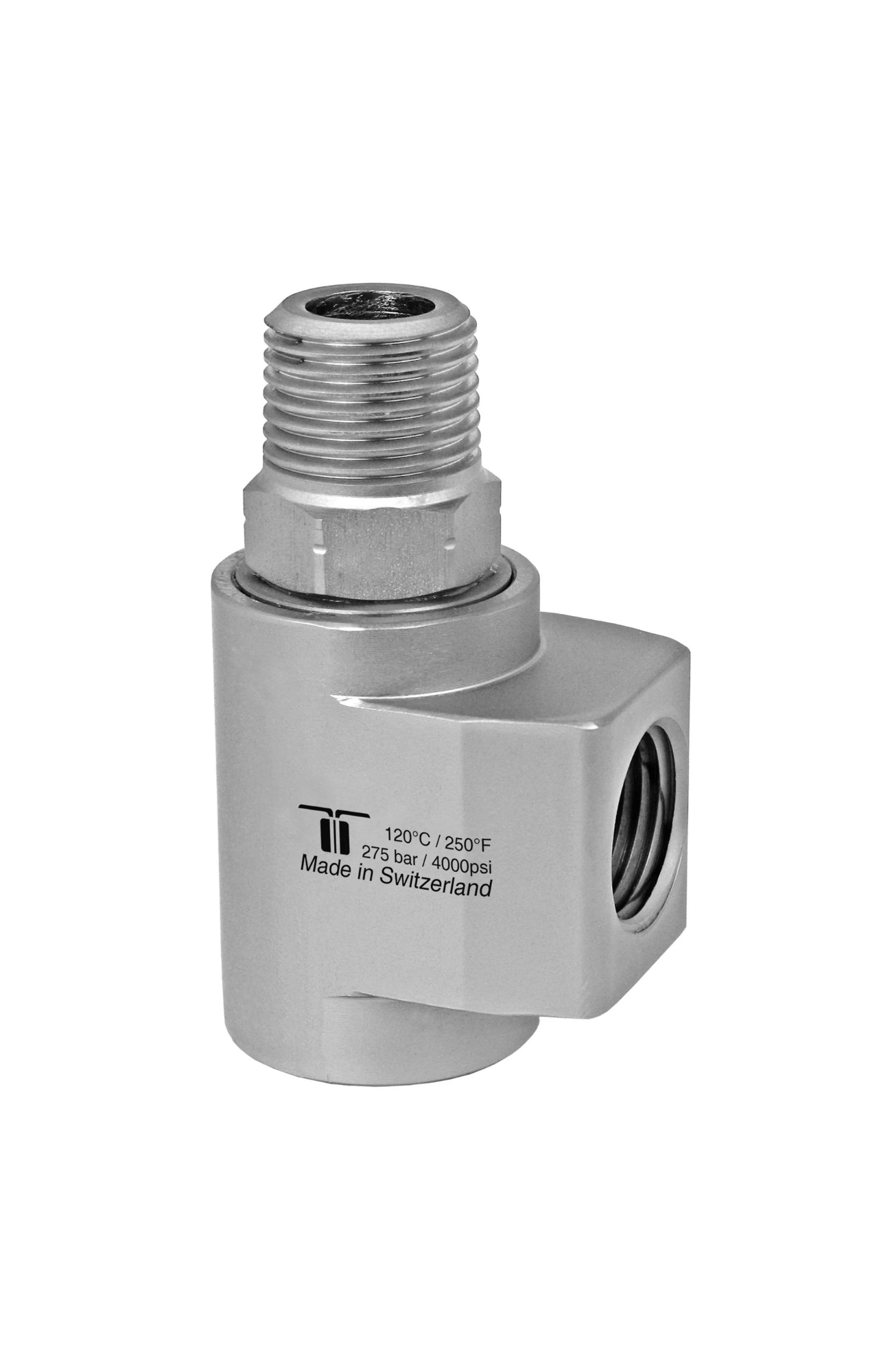

Mosmatic WDCL Swivel - 43.902 - G1 3/8" NPTF to G2 1/4" NPTF
$214.00 USD
Unit price perThe Mosmatic WDCL Swivel 43.902 is a high-performance nickel-plated brass swivel, engineered for precision and reliability in high-pressure hose reels, ceiling booms, and pressure cleaning systems. Designed to endure demanding environments, this swivel features 2 radial ball bearings for smooth rotation and extended lifespan, even under continuous high-speed operation.
With a G1 3/8" NPTF inlet and ¼" NPTF outlet, this swivel offers flexible compatibility with various system setups. It measures 1.81" in height and 2.48" in length, with a nominal width of …œ", and is rated for up to 4000 PSI, 200 RPM, and 250°F. The integrated NBR O-ring seal ensures dependable, leak-proof performance under high pressure and temperature.
Applications
-
High-pressure hose reels
-
Overhead and ceiling-mounted boom systems
-
Industrial pressure washers and cleaning stations
-
Car wash and automotive detailing systems
-
Rotating tools and spray bar connections
Features
-
Made from nickel-plated brass for durability and corrosion resistance
-
Equipped with 2 radial ball bearings for high-speed, stable rotation
-
Sealed with NBR O-ring for reliable leak protection
-
Thread configuration: G1 3/8" NPTF (IN) to ¼" NPTF (OUT)
-
Dimensions: 1.81" height, 2.48" overall length, …œ" NW
-
Supports 4000 PSI, 200 RPM, and 250°F temperature
-
Ideal for high-performance, rotating hose and cleaning applications
Specs
Pressure: 4000 psi
Temperature: 250°
RPM: 200 max
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 1/4" NPTF
Nominal Width (NW): 3/8"
Wrench Size (SW): 0.87
Height (H): 1.81"
Length 1 (L1) : 1.77"
Length 2 (L2) (overall length): 2.48"
Length 3 (L3) : 1.14"
Length 4 (L4) : 1.57"
Length 5 (L5) : 0.47"
Weight: 14.6 oz
Mosmatic WDCL Swivel - 43.902 - G1 3/8" NPTF to G2 1/4" NPTF
$214.00 USD
Unit price perFind out more about our returns policy or warranty policy.
$214.00 USD
Unit price per- Description
- Specs
The Mosmatic WDCL Swivel 43.902 is a high-performance nickel-plated brass swivel, engineered for precision and reliability in high-pressure hose reels, ceiling booms, and pressure cleaning systems. Designed to endure demanding environments, this swivel features 2 radial ball bearings for smooth rotation and extended lifespan, even under continuous high-speed operation.
With a G1 3/8" NPTF inlet and ¼" NPTF outlet, this swivel offers flexible compatibility with various system setups. It measures 1.81" in height and 2.48" in length, with a nominal width of …œ", and is rated for up to 4000 PSI, 200 RPM, and 250°F. The integrated NBR O-ring seal ensures dependable, leak-proof performance under high pressure and temperature.
Applications
-
High-pressure hose reels
-
Overhead and ceiling-mounted boom systems
-
Industrial pressure washers and cleaning stations
-
Car wash and automotive detailing systems
-
Rotating tools and spray bar connections
Features
-
Made from nickel-plated brass for durability and corrosion resistance
-
Equipped with 2 radial ball bearings for high-speed, stable rotation
-
Sealed with NBR O-ring for reliable leak protection
-
Thread configuration: G1 3/8" NPTF (IN) to ¼" NPTF (OUT)
-
Dimensions: 1.81" height, 2.48" overall length, …œ" NW
-
Supports 4000 PSI, 200 RPM, and 250°F temperature
-
Ideal for high-performance, rotating hose and cleaning applications
Pressure: 4000 psi
Temperature: 250°
RPM: 200 max
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 1/4" NPTF
Nominal Width (NW): 3/8"
Wrench Size (SW): 0.87
Height (H): 1.81"
Length 1 (L1) : 1.77"
Length 2 (L2) (overall length): 2.48"
Length 3 (L3) : 1.14"
Length 4 (L4) : 1.57"
Length 5 (L5) : 0.47"
Weight: 14.6 oz
