The Mosmatic Wall Boom WAE (68.509) is a high-performance, wall-mounted boom designed for wash bays and outdoor cleaning areas where ceiling-mounted booms are not practical. With a length of 4 ft 9 in, this boom features a precision-engineered 180° smooth rotation and a return-to-rest wall bracket that ensures consistent positioning when not in use.

Equipped with a 3/8" NPTF inlet (top and side) and 3/8" outlet, the WAE boom supports a throughput medium of water, oil, and air across a pH range of 3–12. Rated for up to 4000 PSI and 250°F, it comes pre-installed with a durable, insulated high-pressure (HP) hose for enhanced operator safety and performance. Environmentally friendly and built to withstand heavy use, the WAE boom is a trusted solution for a variety of commercial and industrial cleaning operations.

Applications

• Outdoor vehicle wash areas

• Self-service and automated car washes

• Industrial equipment cleaning stations

• Fleet wash bays with limited ceiling access

• Food processing and manufacturing washdown areas

Key Features

• 4 ft 9 in wall-mounted boom

• 180° smooth rotation with return-to-rest bracket

• Insulated high-pressure (HP) hose included

• 3/8" NPTF inlets (top and side) + 3/8" outlet

• Rated for 4000 PSI and 250°F

• Handles water, oil, and air (pH 3–12)

• Environmentally friendly and industrial-grade

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Lenght: 4'9"

Throughput/medium: water, oil, air at pH 3-12

Weight: 22 lbs

The Mosmatic Wall Boom Extension WSA (60.532) is engineered to deliver maximum flexibility and extended reach for demanding wash environments. With a base length of 8 ft 2 in and a maximum reach of 7 ft 5 in, this extension arm is ideal for truck wash bays, aircraft hangars, mining operations, and industrial manufacturing plants.

When paired with the Mosmatic DKP ceiling boom (sold separately), this unit enables a working radius of up to 39 feet, offering operators exceptional coverage and smooth, reliable motion. Designed for single-medium flow, it features one internal pipe with 3/8" NPTF inlets (top and side) and a 3/8" NPTM outlet. Built to handle up to 4000 PSI and 250°F, the WSA extension is compatible with water, oil, and air (pH 3–12). Durable, environmentally conscious, and easy to integrate, it's a top-tier solution for expanding your operational range.

Applications

• Truck and fleet vehicle wash bays

• Aircraft maintenance and service areas

• Mining and heavy-duty equipment washdown

• Industrial manufacturing and processing plants

• Extended-reach wash applications with ceiling boom integration

Key Features

• 8 ft 2 in wall boom extension, 7 ft 5 in max reach

• Enables up to 39 ft working radius with DKP ceiling boom (sold separately)

• Single pipe = one inlet system for controlled medium flow

• 3/8" NPTF inlets (top and side) and 3/8" NPTM outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Built for smooth operation, solid durability, and environmental efficiency

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTM

B: 8'2"

Max. Lenght: 7'5"

Throughput/medium: water, oil, air at pH 3-12

Weight: 56 lbs

The Mosmatic Wall Boom WAE (68.519) is a powerful and space-efficient cleaning solution ideal for outdoor wash areas, self-service bays, and industrial applications where ceiling-mounted booms are not practical. With a length of 5 ft 3 in, this wall-mounted boom provides a 180° smooth rotation and features a precision wall bracket that automatically returns the boom to its selected resting position when not in use.

Built for high-pressure systems, the WAE is rated for up to 4000 PSI and 250°F, and is compatible with water, oil, and air within a pH range of 3–12. It includes a durable insulated high-pressure (HP) hose for user safety and efficient operation. The boom is equipped with 3/8" NPTF top and side inlets and a 3/8" outlet, offering flexible installation options. Environmentally conscious and designed for industrial-grade reliability, this boom is perfect for demanding wash environments.

Applications

• Outdoor self-service car wash bays

• Fleet and truck wash stations

• Industrial equipment cleaning zones

• Washdown areas with limited ceiling access

• Food and beverage processing environments

Key Features

• 5 ft 3 in wall-mounted boom

• 180° smooth rotation with return-to-rest wall bracket

• Includes insulated high-pressure (HP) hose

• 3/8" NPTF inlet (top and side) and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Environmentally friendly and built for high performance

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Lenght: 5'3"

Throughput/medium: water, oil, air at pH 3-12

Weight: 24 lbs

Replacement spring for the Mosmatic boom. It sits at the end of the boom between the boom and the gun.

The Mosmatic Wall Boom Extension WSA (60.542) is built for operations that require maximum flexibility and extended reach. With a base length of 9 ft 10 in and a maximum working extension of 9 ft, this extension is ideal for truck wash bays, mining operations, aircraft maintenance, and industrial facilities where full mobility and long reach are essential.

When paired with a Mosmatic DKP ceiling boom (sold separately), the WSA enables a total working radius of up to 39 ft, providing broad coverage while ensuring smooth and controlled movement. Designed for single-medium applications, it includes one internal pipe with 3/8" NPTF inlets (top and side) and a 3/8" NPTM outlet. Rated to handle up to 4000 PSI and temperatures up to 250°F, the WSA is compatible with water, oil, and air (pH 3–12). Built for durability, performance, and environmental responsibility.

Applications

• Truck and heavy vehicle wash systems

• Aircraft hangar maintenance operations

• Mining facility washdown

• Industrial cleaning and fluid delivery

• Extended-reach bay installations with ceiling boom compatibility

Key Features

• 9 ft 10 in boom extension, 9 ft max working reach

• Enables 39 ft working radius with DKP ceiling boom (sold separately)

• Single internal pipe design (1 inlet = 1 medium)

• 3/8" NPTF top/side inlets, 3/8" NPTM outlet

• Handles 4000 PSI pressure and 250°F temperatures

• Suitable for water, oil, and air (pH range 3–12)

• Supports environmentally friendly, high-efficiency wash operations

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTM

B: 9'10"

Max. Lenght: 9'

Throughput/medium: water, oil, air at pH 3-12

Weight: 63 lbs

The Mosmatic Wall Boom WAE (68.529) is a premium wall-mounted boom designed for use in wash bays, outdoor cleaning zones, and industrial environments where ceiling installation isn’t feasible. With a length of 5 ft 9 in, this boom delivers 180° smooth rotation and features a specialized wall bracket that ensures the boom reliably returns to a preset resting position when not in use.

Built for performance and safety, the boom includes a robust insulated high-pressure (HP) hose and is rated for up to 4000 PSI and 250°F. It supports water, oil, and air across a pH range of 3–12, making it highly adaptable to various high-demand applications. Equipped with 3/8" NPTF top and side inlets and a 3/8" outlet, this environmentally friendly boom is ready for industrial-grade use and effortless integration.

Applications

• Outdoor self-service car wash bays

• Fleet wash and truck wash stations

• Washdown areas in food and industrial plants

• Equipment cleaning where ceiling mounting isn't an option

• Commercial cleaning facilities

Key Features

• 5 ft 9 in wall-mounted boom

• 180° smooth swivel with auto return-to-rest bracket

• Comes with insulated high-pressure (HP) hose

• 3/8" NPTF inlets (top and side) + 3/8" outlet

• Rated for 4000 PSI and 250°F

• Handles water, oil, and air (pH 3–12)

• Eco-conscious construction, built for heavy-duty use

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Lenght: 5'9"

Throughput/medium: water, oil, air at pH 3-12

Weight: 24 lbs

Specifications:

Nominal Width (NW): 5/16"

Pressure: 5800psi

Temperature: 300°F

Total Length: L=66"

2 x cut ring fitt.

The Mosmatic Wall Boom Extension WSA (60.522) is the ideal solution for applications requiring extended reach and maximum flexibility. Designed for demanding environments such as truck wash bays, mining operations, aircraft maintenance, and manufacturing plants, this extension arm enables a working radius of up to 39 feet when paired with a compatible Mosmatic DKP ceiling boom (sold separately).

With a base length of 6 ft 8 in and a maximum extension of 6 ft 3 in, the WSA provides smooth, controlled operation and rugged reliability. Featuring a 3/8" NPTF inlet (top and side) and 3/8" NPTM outlet, it is designed for a single-medium flow through one internal pipe. It handles pressures up to 4000 PSI and temperatures up to 250°F, and supports water, oil, and air within a pH range of 3–12. Built for durability and environmental responsibility, this extension is the go-to choice for extended cleaning reach in industrial settings.

Applications

• Truck and trailer wash bays

• Aircraft maintenance and detailing facilities

• Mining and heavy equipment cleaning

• Manufacturing and industrial washdown stations

• Locations requiring long-range boom configurations

Key Features

• 6 ft 8 in wall boom extension with 6 ft 3 in max reach

• Enables up to 39 ft working radius when paired with DKP ceiling boom

• Single internal pipe = one inlet design

• 3/8" NPTF inlets (top and side) and 3/8" NPTM outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Smooth operation, solid construction, environmentally friendly

• Note: DKP ceiling boom sold separately

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTM

B: 6'8"

Max. Lenght: 6'3"

Throughput/medium: water, oil, air at pH 3-12

Weight: 53 lbs

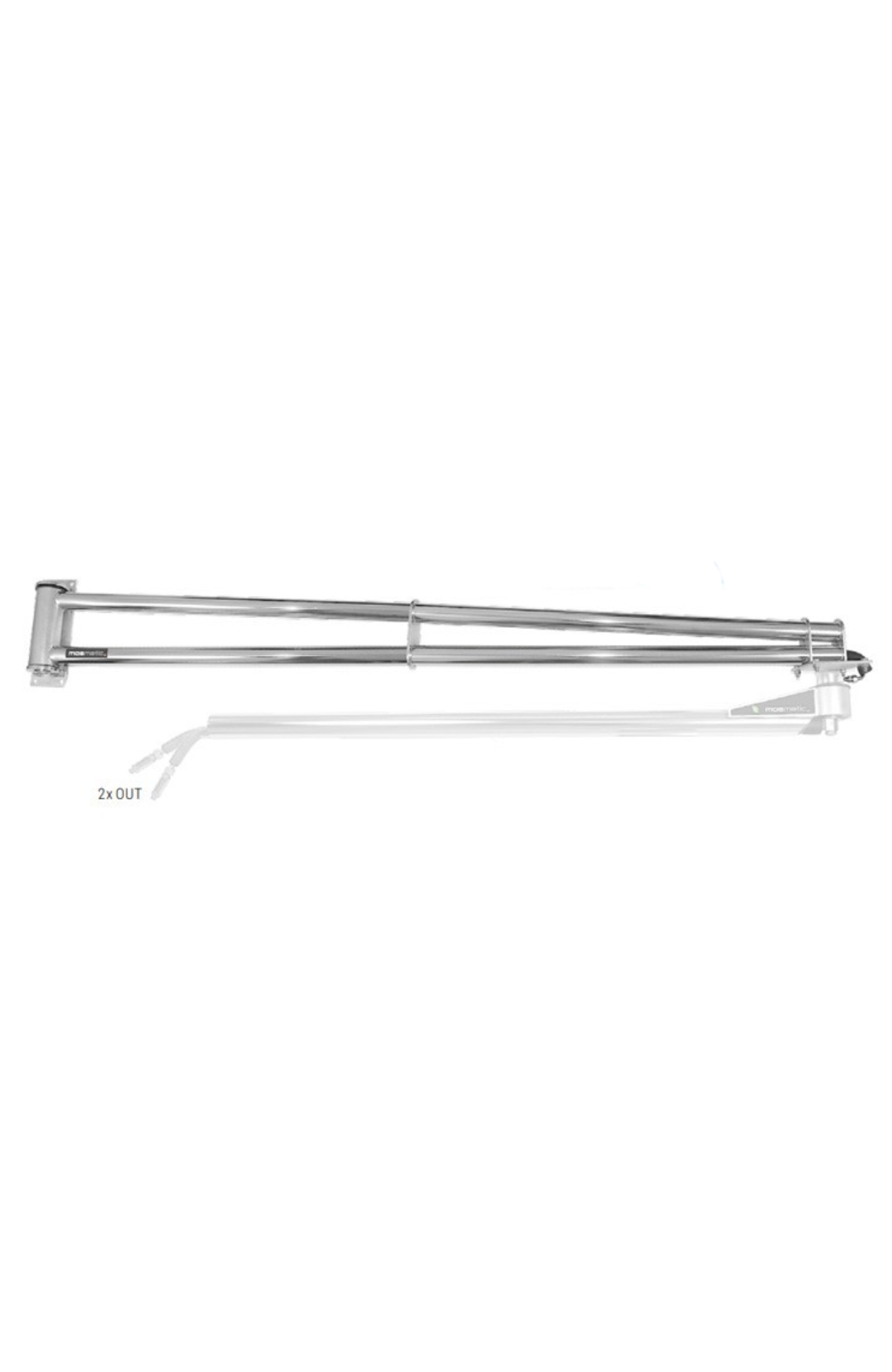

The Mosmatic WSA-2R Wall Boom Extension (60.910) delivers maximum flexibility and extended reach for demanding wash environments. With a boom length of 6 ft 8 in and a maximum reach of 6 ft 3 in, this dual-pipe extension is engineered for industrial-grade applications requiring two separate media lines. Ideal for use in truck wash bays, aircraft maintenance, mining sites, and manufacturing facilities, this extension enhances efficiency and operator convenience.

Built for durability and smooth operation, the WSA-2R features a dual-pipe design with two inlets for managing separate fluids, and is capable of handling up to 4000 psi and 250°F. It is compatible with Mosmatic DP2 ceiling booms (sold separately) to create a complete high-performance wash system. The boom ensures a clean, clutter-free bay and a working radius up to 39 feet when configured correctly.

Applications

• Commercial truck and fleet wash bays

• Mining and heavy equipment maintenance

• Aircraft cleaning stations

• Industrial manufacturing facilities

• Any dual-medium fluid application requiring extended reach

Key Features

• 6 ft 8 in boom length, max reach 6 ft 3 in

• Two inner pipes for dual-medium operation (2 inlets)

• Compatible with Mosmatic DP2 ceiling boom (sold separately)

• Smooth, comfortable rotation and maneuverability

• Handles up to 4000 psi and 250°F

• Throughput medium: water, oil, air (pH 3–12)

• Wall-mounted for space efficiency and safety

• Environmentally friendly construction and materials

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTM

B: 6'8"

Max. Lenght: 6'.3"

Throughput/medium: water, oil, air at pH 3-12

Weight: 55 lbs

The Mosmatic WSA-2R Wall Boom Extension 60.911 is the ideal solution for applications requiring extended reach and dual-fluid functionality. With a boom length of 8 ft 2 in and a maximum operating length of 7 ft 5 in, this high-performance extension is engineered for demanding environments such as truck wash bays, mining facilities, aircraft maintenance areas, and industrial plants.

Designed with two inner pipes to handle separate media lines, this extension supports dual-inlet operation—perfect for setups involving simultaneous use of high and low-pressure systems. Built to operate at up to 4000 psi and 250°F, the WSA-2R ensures a durable, efficient, and environmentally friendly wash solution. Combine it with a Mosmatic DP2 Ceiling Boom (sold separately) to maximize your wash bay's working radius—up to 39 feet when configured correctly.

Applications

• Commercial truck and fleet wash stations

• Mining and heavy equipment maintenance

• Aircraft service and cleaning bays

• Manufacturing and industrial washing operations

• Dual-medium cleaning setups (air/water, hot/cold, etc.)

Key Features

• 8 ft 2 in boom length, 7 ft 5 in max reach

• Dual pipe system: 2 inner pipes = 2 inlets

• Compatible with Mosmatic DP2 Ceiling Boom (sold separately)

• Wall-mounted for optimized space and mobility

• Handles up to 4000 psi and 250°F

• Media support: water, oil, air, pH 3–12

• Smooth operation with durable construction

• Designed for environmentally responsible operations

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTM

B: 8'2"

Max. Lenght: 7'5"

Throughput/medium: water, oil, air at pH 3-12

Weight: 60 lbs

The Mosmatic WSA-2R Wall Boom Extension 60.912 delivers unmatched reach and dual-medium capacity, making it the ideal upgrade for demanding commercial and industrial wash bays. With a boom length of 9 ft 10 in and a maximum operating length of 9 ft, this extension ensures wide coverage and enhanced flexibility.

Featuring two internal pipes for separate media lines, this dual-inlet system is perfect for combining functions like high and low-pressure systems. It operates at up to 4000 psi and 250°F, making it suitable for tough cleaning jobs across a range of industries. For maximum reach—up to a 39-foot working radius—pair it with a Mosmatic DP2 Ceiling Boom (sold separately). Built for durability and smooth, reliable operation.

Applications

• Truck and fleet wash stations

• Aircraft maintenance and cleaning

• Mining and heavy-duty equipment wash bays

• Industrial manufacturing plants

• Dual-function washing setups (e.g., water/air or hot/cold pressure)

Key Features

• Boom length: 9'10", max working length: 9'

• Two internal pipes: supports 2 inlets for dual media

• Wall-mounted for maximum reach and flexibility

• Designed for use with DP2 Ceiling Boom (sold separately)

• Rated to 4000 psi and 250°F

• Compatible with water, oil, and air, pH 3–12

• Durable, environmentally conscious construction

• Smooth operation for extended work range

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTM

B: 9'10"

Max. Lenght: 9'

Throughput/medium: water, oil, air at pH 3-12

Weight: 66 lbs

Note: This item must be freight shipped due to it being oversized. Our price includes freight shipping to continental USA.

Whenever extended lengths and maximum flexibility are required, the wall-boom-extension is perfect for the job. Prime examples are truck wash bays, mining facilities, air craft maintenance and manufacturing plants. When combined correctly, a working radius of 39' is possible.

• Smooth, comfortable operation
• Extended work radius
• Solid construction
• Add ceiling boom: DKP

B 19'8", L max 19'8", Weight 127 lbs

Technical data:

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

 DKP Ceiling Boom Sold Separately.

Note: This item must be freight shipped due to it being oversized. Our price includes freight shipping to continental USA.

Whenever extended lengths and maximum flexibility are required, the wall-boom-extension is perfect for the job. Prime examples are truck wash bays, mining facilities, air craft maintenance and manufacturing plants. When combined correctly, a working radius of 39' is possible.

• Smooth, comfortable operation
• Extended work radius
• Solid construction
• Add ceiling boom: DKP

B 14'9", L max 9'10", Weight 114 lbs

Technical data:

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

 DKP Ceiling Boom Sold Separately.

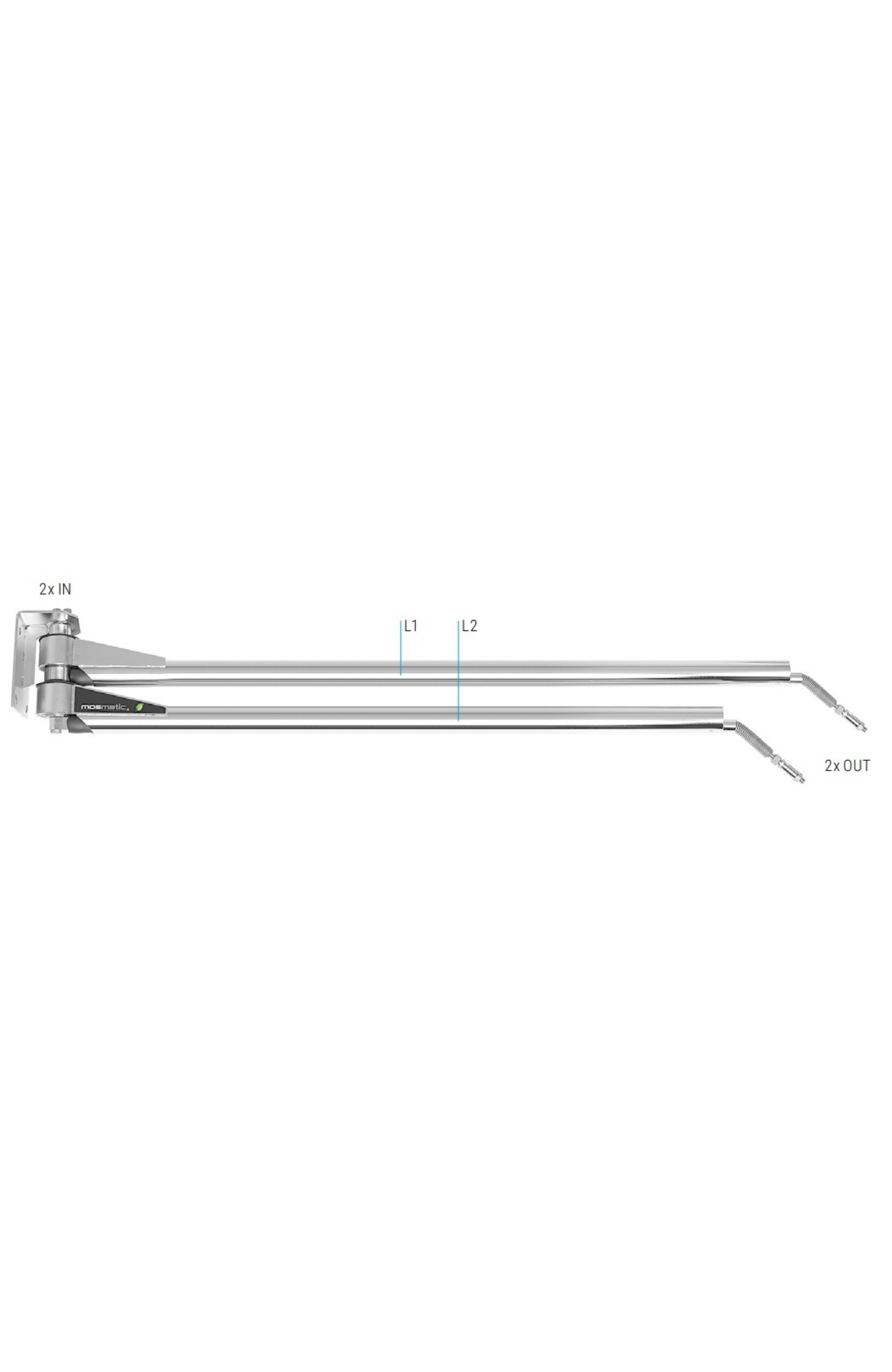

The Mosmatic Wall Boom WAD (61.409) is a dual-arm, wall-mounted boom engineered for high-efficiency use in outdoor wash bays, fleet cleaning stations, and industrial environments where ceiling mounting is not possible. With dual booms measuring 5 ft 3 in and 4 ft 9 in, this unit provides extended reach and flexible cleaning functionality. Each arm offers 180° smooth rotation, and the built-in wall bracket ensures the booms return to their preset resting positions after use.

Ideal for applications requiring both high and low pressure, this model is designed with low pressure routed through the upper boom for optimal safety and control. It features an insulated high-pressure (HP) hose, handles up to 4000 PSI, and withstands temperatures up to 250°F. Compatible with water, oil, and air across a pH range of 3–12, the WAD boom is a durable, environmentally friendly solution for dual-function cleaning setups.

Applications

• Self-service and commercial car wash bays

• Truck and fleet wash stations

• Industrial and agricultural equipment cleaning

• Washdown areas requiring dual high/low pressure setups

• Locations with no ceiling mount capability

Key Features

• Dual-arm boom: 5 ft 3 in + 4 ft 9 in

• 180° smooth rotation on each arm with return-to-rest wall bracket

• Designed for dual pressure applications (low pressure on upper boom)

• Insulated high-pressure (HP) hose included

• 3/8" NPTF inlets (top and side) and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Eco-friendly and industrial-grade performance

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Lenght 1: 5'3"

Lenght 2: 4'9"

Throughput/medium: water, oil, air at pH 3-12

Weight: 42 lbs
