The Mosmatic DXF Swivel - 38.153 is a high-performance stainless steel swivel designed for high-RPM and high-pressure cleaning equipment. Built for longevity and reliability, it is ideal for self-rotating tools, surface cleaners, parts washers, and tire cleaning systems. This swivel features a precision-engineered triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth and consistent rotation. A durable ceramic seal system ensures long-term leak protection under extreme conditions, while integrated weep holes serve as an early warning system for seal failure. Its flange mount allows for quick and secure installation.

Applications:

• High-RPM self-rotating cleaning equipment

• Surface cleaners for industrial and commercial use

• Tire and wheel washing systems

• Parts washers and cleaning stations

Key Features:

• Stainless steel construction for corrosion resistance and durability

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Advanced ceramic seal system for high-speed applications

• Integrated weep holes for seal failure detection

• Flange mount for quick and stable installation

• Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTM

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Pressure rating: Up to 2500 PSI

• Max RPM: 2000

• Operating temperature: 40°F to 250°F

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 3/8"NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.47

Weight: 13.5oz

The Mosmatic DXF Swivel - 38.063 is a high-performance stainless steel swivel designed for high-RPM, self-rotating cleaning applications. Ideal for use in surface cleaners, tire and wheel cleaning systems, and industrial parts washers, this swivel ensures reliable performance under demanding conditions. It features a precision-engineered triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, long-lasting rotation. The integrated ceramic seal system offers exceptional resistance to pressure and temperature, while built-in weep holes provide early warning of seal failure. Its flange mount design ensures fast and secure installation in any setup.

Applications:

• Self-rotating cleaning tools

• Surface cleaners for industrial and commercial use

• Tire and wheel cleaning systems

• Parts washers and high-RPM cleaning applications

Key Features:

• Stainless steel body for maximum corrosion resistance

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Durable ceramic seal for extended high-RPM use

• Seal failure indicator via integrated weep holes

• Flange mount for easy and secure installation

• Thread IN: G1 1/4" NPTF | Thread OUT: G2 G3/8" Male

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Pressure rating: Up to 2500 PSI

• Max RPM: 2000

• Temperature Range: 40°F to 250°F

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 G3/8"M

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.39

Weight: 13.0oz

The Mosmatic DXF Swivel - 38.051 is a precision-engineered stainless steel swivel designed for high-RPM and high-performance cleaning systems. Ideal for self-rotating tools, surface cleaners, parts washers, and tire cleaning equipment, this swivel features a triple bearing system—two radial ball bearings and one thrust ball bearing—for maximum rotational efficiency and durability. The advanced ceramic seal system ensures extended service life under demanding conditions, while integrated weep holes provide seal failure detection for added safety. A flange mount design allows for quick and secure installation in a variety of industrial cleaning setups.

Applications:

• High-RPM self-rotating cleaning tools

• Surface cleaners

• Parts washers

• Tire and wheel cleaning equipment

Key Features:

• Stainless steel construction for superior corrosion resistance

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Durable ceramic seal system for high-speed applications

• Seal failure warning via integrated weep holes

• Flange mount for fast and easy installation

• Thread IN: G1 1/4" NPTF | Thread OUT: G2 1/4" NPTM

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.45"

• Pressure rated to 2500 PSI

• Max RPM: 2000

• Temperature range: 40°F to 250°F

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 1/4"NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.67

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.45

Length 2 (L2): 0.43

Weight: 12.1oz

The heart of a Mosmatic Steaminator is the swivel which is reinforced with self lubricating, stainless steel ball bearings and a high temperature seal system. The DXF is specially designed for high revolutions to ensure long lasting durability.

DXF M22x1,5-M M12x1-M

Technical Data:

Pressure 300 psi

Temperature 350 degrees

Inlet 3/8" NPTM

Throughput Medium - Steam

The Mosmatic DXF 90° Swivel - 38.463 is a stainless steel swivel engineered for high-RPM, high-pressure applications in self-rotating cleaning systems. Designed for use in surface cleaners, tire and wheel washers, and parts washers, this swivel provides smooth and consistent performance in demanding environments. It features a robust triple bearing system—two radial ball bearings and one thrust ball bearing—for stable, high-speed operation. The integrated ceramic seal system offers maximum durability and protection from wear, heat, and pressure. Built-in weep holes serve as a proactive seal failure warning, and the flange mount enables secure, easy installation.

Applications:

• High-RPM self-rotating cleaning tools

• Commercial and industrial surface cleaners

• Tire and wheel cleaning systems

• Parts washers and automated cleaning setups

Key Features:

• 90° swivel design for directional flow optimization

• Corrosion-resistant stainless steel construction

• Triple bearing system: 2x radial + 1x thrust ball bearing

• High-performance ceramic seal system

• Weep holes for early seal failure detection

• Flange mount for secure and quick installation

• Thread IN: 3/8" NPTF | Thread OUT: G3/8" Male

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Max Pressure: 2500 PSI

• Max RPM: 2000

• Temperature Range: 40°F to 250°F

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 G3/8"M

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.39

Weight: 15.7oz

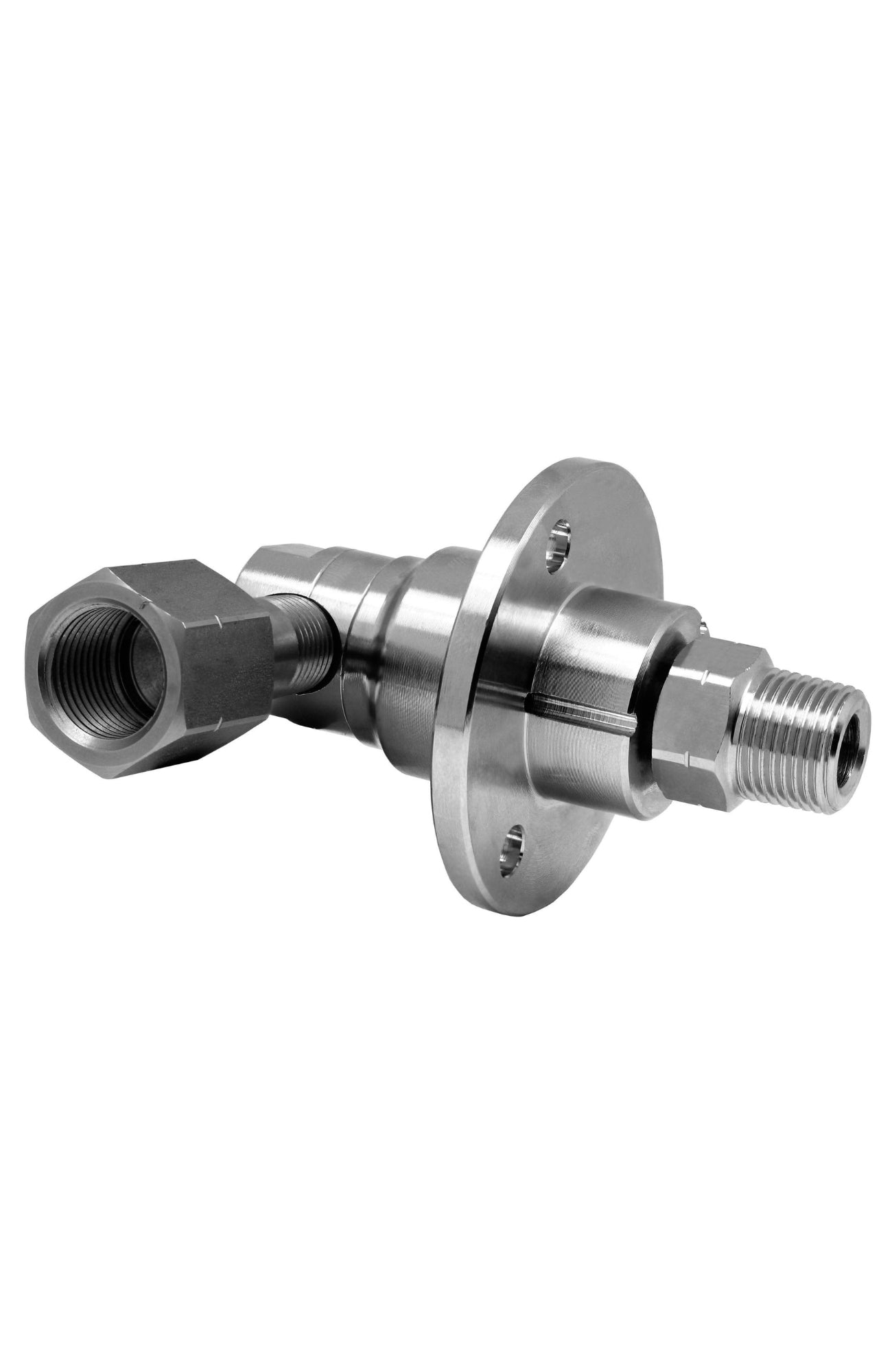

The Mosmatic DXF 90° Swivel - 38.453 is a high-efficiency stainless steel swivel designed for high-RPM, high-pressure cleaning systems that require a 90-degree flow path. Ideal for self-rotating applications like surface cleaners, parts washers, and tire cleaners, this swivel provides exceptional performance and long-lasting durability. It features a precision triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, stable operation at high speeds. A robust ceramic seal system offers superior resistance to pressure, heat, and wear. Built-in weep holes provide seal failure detection, while the flange mount ensures quick, secure installation.

Applications:

• High-RPM self-rotating cleaning tools

• Industrial and commercial surface cleaners

• Tire and wheel washing equipment

• Parts washers and automated cleaning systems

Key Features:

• 90° swivel design for directional flow control

• Corrosion-resistant stainless steel construction

• Triple bearing system: 2x radial + 1x thrust ball bearing

• High-durability ceramic seal system

• Integrated weep holes for early seal failure detection

• Flange mount for fast and stable installation

• Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTM

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Max Pressure: 2500 PSI

• Max RPM: 2000

• Temperature Range: 40°F to 250°F

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 3/8"NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.47

Weight: 17.8oz

The Mosmatic DXF 90° Swivel - 38.353 is a high-efficiency stainless steel swivel designed for high-RPM, high-pressure cleaning applications requiring a 90-degree flow configuration. Ideal for use in surface cleaners, tire washers, parts washers, and self-rotating tools, this swivel delivers long-lasting durability and smooth rotation. It features a precision-engineered triple bearing system—two radial ball bearings and one thrust ball bearing—to ensure stability and longevity in high-speed environments. The ceramic seal system provides exceptional resistance to heat and pressure, while integrated weep holes serve as early indicators of seal failure. The flange mount enables fast, secure installation.

Applications:

• Self-rotating high-RPM cleaning tools

• Industrial and commercial surface cleaners

• Tire and wheel washing equipment

• Parts washers and automated cleaning stations

Key Features:

• 90° swivel design for optimized flow routing

• Stainless steel construction for corrosion resistance

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Long-life ceramic seal system for high-performance use

• Weep holes for early seal failure detection

• Flange mount for quick and secure installation

• Thread IN: 1/4" NPTF | Thread OUT: 3/8" NPTM

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Max Pressure: 2500 PSI

• Max RPM: 2000

• Temperature Range: 40°F to 250°

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 3/8"NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.47

Weight: 14.2oz

The Mosmatic DXF Swivel - 38.351 is a high-performance stainless steel swivel engineered for high-RPM and high-pressure cleaning systems. Designed for self-rotating equipment such as surface cleaners, tire cleaners, and parts washers, this swivel delivers reliable, long-lasting performance in demanding environments. It features a precision triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, stable rotation. The integrated ceramic seal system offers superior durability under extreme temperature and pressure, while built-in weep holes provide early seal failure detection. A flange mount allows for quick and secure installation.

Applications:

• High-RPM self-rotating cleaning systems

• Commercial and industrial surface cleaners

• Tire and wheel washing equipment

• Parts washers and automated cleaning tools

Key Features:

• Stainless steel construction for corrosion resistance

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Durable ceramic seal system for long service life

• Weep holes for proactive seal failure warning

• Flange mount for fast and secure installation

• Thread IN: 1/4" NPTF | Thread OUT: 1/4" NPTM

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.45"

• Max Pressure: 2500 PSI

• Max RPM: 2000

• Operating Temperature Range: 40°F to 250°F

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 1/4"NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.67

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.45

Length 2 (L2): 0.43

Weight: 12.5oz

The Mosmatic DXF Swivel - 38.163 is a high-performance stainless steel swivel engineered for high-RPM, high-pressure cleaning applications. Designed for use in self-rotating systems, surface cleaners, tire washers, and parts washers, this swivel delivers exceptional durability and reliability. It features a robust triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth and efficient rotation under demanding conditions. A high-quality ceramic seal system offers superior wear and temperature resistance. Built-in weep holes serve as a seal failure warning system, and the flange mount ensures quick, secure installation.

Applications:

• Self-rotating high-RPM cleaning tools

• Surface cleaners for commercial and industrial use

• Parts washers and degreasing equipment

• Tire and wheel washing systems

Key Features:

• Heavy-duty stainless steel construction for corrosion resistance

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Durable ceramic seal system for high-speed performance

• Weep holes for early seal failure detection

• Flange mount for secure and easy installation

• Thread IN: 3/8" NPTF | Thread OUT: G3/8" Male

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Pressure Rating: 2500 PSI

• Max RPM: 2000

• Temperature Range: 40°F to 250°F

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 G3/8"M

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.39

Weight: 12.7oz

The Mosmatic DXFI Swivel - 38.157 is a premium stainless steel swivel engineered for high-RPM, high-pressure applications in demanding cleaning environments. Designed for surface cleaners, self-rotating tools, tire washers, and industrial parts washers, this swivel provides exceptional durability and smooth performance. Its precision triple bearing system—two radial ball bearings and one thrust ball bearing—ensures reliable, long-lasting rotation. A ceramic seal system offers superior resistance to heat, pressure, and wear. Integrated weep holes provide early seal failure detection, while the flange mount allows for quick, secure installation.

Applications:

• High-RPM self-rotating cleaning tools

• Industrial and commercial surface cleaners

• Tire and wheel cleaning equipment

• Parts washers and degreasing systems

Key Features:

• Durable stainless steel construction for corrosion resistance

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Long-lasting ceramic seal system for high-pressure use

• Weep holes for proactive seal failure detection

• Flange mount for quick and secure installation

• Thread IN: 3/8" NPTF | Thread OUT: 1/4" NPTF

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.65"

• Max Pressure: 2500 PSI

• Max RPM: 2000

• Temperature Range: 40°F to 250°F

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 3/8"NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.87

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.76

Weight: 10.0oz

The Mosmatic DXF Swivel - 38.152 is a high-performance stainless steel swivel engineered for high-RPM, high-pressure cleaning systems. Ideal for demanding self-rotating applications such as surface cleaners, tire washers, and parts washers, this swivel features a precision triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth and stable rotation. The integrated ceramic seal system delivers exceptional resistance to heat, pressure, and wear. Weep holes act as an early seal failure warning system, while the flange mount provides fast, secure installation for a wide range of industrial cleaning tools.

Applications:

• High-RPM self-rotating cleaning equipment

• Surface cleaners in industrial and commercial settings

• Tire and wheel washing systems

• Parts washers and degreasing units

Key Features:

• Stainless steel construction for maximum corrosion resistance

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Long-life ceramic seal system for high-pressure use

• Weep holes for proactive seal failure detection

• Flange mount for quick and secure installation

• Thread IN: 3/8" NPTF | Thread OUT: 1/4" NPTF

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.65"

• Max Pressure: 2500 PSI

• Max RPM: 2000

• Operating Temperature Range: 40°F to 250°F

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 1/4"NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.65

Weight: 9.6oz

The Mosmatic DXF Swivel - 38.151 is a precision-engineered stainless steel swivel designed for high-RPM and high-pressure cleaning applications. Built to withstand demanding use in surface cleaners, tire and wheel washers, parts washers, and other self-rotating equipment, this swivel combines durability with performance. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth rotation and extended service life. A ceramic seal system ensures reliable operation in high-temperature and high-pressure conditions, while integrated weep holes provide early warning of seal failure. The flange mount design allows for quick, secure installation.

Applications:

• High-RPM self-rotating cleaning tools

• Industrial and commercial surface cleaners

• Parts washers and degreasing equipment

• Tire and wheel cleaning systems

Key Features:

• Heavy-duty stainless steel construction for corrosion resistance

• Triple bearing system: 2x radial + 1x thrust ball bearing

• High-performance ceramic seal system

• Integrated weep holes for seal failure detection

• Flange mount for fast, secure installation

• Thread IN: 3/8" NPTF | Thread OUT: 1/4" NPTM

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.45"

• Pressure rating: 2500 PSI

• Max RPM: 2000

• Operating Temperature: 40°F to 250°F

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 1/4"NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.67

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.45

Length 2 (L2): 0.43

Weight: 11.7oz

The Mosmatic DXF Swivel - 38.054 is a high-performance stainless steel swivel built for high-RPM and high-pressure cleaning applications. Engineered for durability and precision, this swivel is ideal for self-rotating tools, surface cleaners, tire washers, and parts washers. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth and efficient rotation. The advanced ceramic seal system offers long-lasting leak protection, while built-in weep holes provide early warning in case of seal failure. A flange mount ensures easy and secure installation in a wide range of cleaning systems.

Applications:

• High-RPM self-rotating cleaning equipment

• Surface cleaners for industrial and commercial use

• Tire and wheel washing stations

• Parts washers and degreasing tools

Key Features:

• Corrosion-resistant stainless steel construction

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Long-life ceramic seal system for high-performance sealing

• Integrated weep holes for seal failure detection

• Flange mount for quick and secure installation

• Thread IN: 1/4" NPTF | Thread OUT: 3/8" NPTF

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.76"

• Max Pressure: 2500 PSI

• Max RPM: 2000

• Operating Temperature: 40°F to 250°F

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 3/8"NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.87

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.76"

Weight: 10.4oz

The Mosmatic DXF Swivel - 38.053 is a high-performance stainless steel swivel designed for high-RPM cleaning applications where durability and precision are critical. Ideal for use in surface cleaners, tire cleaners, self-rotating systems, and industrial parts washers, this swivel features a robust triple bearing system—two radial ball bearings and one thrust ball bearing—to ensure smooth, high-speed rotation under demanding conditions. A premium ceramic seal system offers extended seal life, while built-in weep holes provide early seal failure warning. The integrated flange allows for easy and secure installation in various cleaning assemblies.

Applications:

• High-RPM self-rotating cleaning tools

• Surface cleaners for industrial and commercial use

• Tire and wheel washing systems

• Parts washers and degreasing equipment

Key Features:

• Heavy-duty stainless steel body for superior corrosion resistance

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Advanced ceramic seal for durability under pressure and heat

• Seal failure warning via integrated weep holes

• Flange mount for fast, reliable installation

• Thread IN: 1/4" NPTF | Thread OUT: 3/8" NPTM

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Pressure rating: Up to 2500 PSI

• Max RPM: 2000

• Operating Temperature: 40°F to 250°F

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 3/8"NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.47

Weight: 13.9oz
