The Mosmatic WDEI Swivel 40.461B – Box of 25 pcs is a cost-effective, high-volume solution for outfitting hose reel systems with premium high-pressure swivel connectors. Crafted from stainless steel for exceptional strength and corrosion resistance, each swivel features a sliding bearing for smooth operation and is sealed with a durable O-ring NBR, with optional EPDM or FKM sealing materials available. Designed for 1/4” NPTF inlet to 1/4” NPTM outlet connections, these swivels support up to 5800 psi, 30 RPM, and 250°F, making this bulk pack ideal for service teams, OEMs, and facility maintenance crews.
Applications
-
High pressure hose reels
-
OEM and bulk maintenance supply
-
Industrial fluid handling systems
-
Equipment requiring high-pressure swivel assemblies
Features
-
Stainless steel body for high durability and corrosion resistance
-
Sliding bearing ensures low-friction, smooth rotation
-
Thread IN: ¼” NPTF | Thread OUT: ¼” NPTM
-
Bulk packaged: 25 swivel units per box
-
Dimensions per unit: Overall Diameter – 1.26” | Overall Length – 2.13”
-
Nominal Width (NW): ¼”
-
Rated for 5800 psi working pressure
-
Temperature limit of 250°F
-
Max RPM: 30
-
Includes O-ring NBR seal (with EPDM or FKM options upon request)
Specs
Pressure: 5800 psi (40 MPa)
Temperature: 250°F
RPM: 30
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4" NPTF
Thread Out: G2 1/4" NPTM
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.87
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 2.13
Length 3 (L3): 1.14
Length 4 (L4): 1.50
Diameter (D1): 1.26
Box: 25pcs
Weight: 9.2 oz
The Mosmatic WDB Swivel 43.905 is a compact, precision-engineered swivel crafted for high-pressure applications in commercial and industrial settings. Built from nickel-plated brass for exceptional corrosion resistance and longevity, this swivel features a sliding bearing for smooth operation under load. The integrated O-ring NBR seal ensures dependable leak prevention. Designed with ⅛” NPTF inlet and outlet ports, it delivers reliable performance in tight spaces, supporting up to 4000 psi, 30 RPM, and 250°F, making it a go-to component for smaller high-pressure systems.
Applications
-
Compact high-pressure hose reels
-
Ceiling booms in detailing bays or garages
-
Pressure washing equipment
-
Small-scale car wash and industrial cleaning systems
-
OEM applications requiring tight-space swivel integration
Key Features
-
Nickel-plated brass construction for durability and corrosion resistance
-
Sliding bearing for controlled, smooth rotational movement
-
Thread IN: 1/8” NPTF | Thread OUT: 1/8” NPTF
-
Compact profile: Height – 1.06” | Overall Length – 0.87”
-
Nominal Width (NW): 1/4”
-
Handles working pressures up to 4000 psi
-
Temperature tolerance up to 250°F
-
Supports rotational speeds up to 30 RPM
-
Equipped with a reliable O-ring NBR seal for leak-free performance
Specs
Pressure: 4000 psi
Temperature: 250°
RPM: 30
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/8" NPTF
Thread Out: G2 1/8" NPTF
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.87
Height (H): 1.06
Length 1 (L1) :1.77
Length 2 (L2) (overall length): 0.87
Length 3 (L3): 1.14
Length 4 (L4): 0.62
Weight:10.0 oz
The Mosmatic WDCS Swivel 43.374 is a robust, high-performance swivel designed for use in high-pressure systems such as hose reels, ceiling booms, and pressure cleaners. Constructed from brass with a corrosion-resistant nickel plating, this swivel delivers superior durability in demanding environments. It features 2x radial ball bearings for smooth, high-speed rotation and a protection plate to safeguard internal components. Sealed with an O-ring NBR, the swivel is engineered to handle pressures up to 4000 psi, rotational speeds up to 200 RPM, and temperatures reaching 250°F.
Applications
-
High-pressure hose reels
-
Ceiling booms in wash bays and automotive shops
-
Pressure washers for industrial and commercial use
-
Car wash tunnels and detailing systems
-
Equipment requiring durable, protected swivel performance
Key Features
-
Nickel-plated brass construction for strength and corrosion protection
-
Dual radial ball bearings for smooth, high-RPM operation
-
Integrated protection plate for added durability
-
Thread IN: 1/2” NPTF | Thread OUT: 1/2” NPTF
-
Dimensions: Height – 2.20” | Overall Length – 3.24”
-
Nominal Width (NW): 1/2”
-
Rated for 4000 psi maximum working pressure
-
Operates at temperatures up to 250°F
-
Supports rotational speeds up to 200 RPM
-
O-ring NBR seal ensures leak-proof performance
Specs
Pressure: 4000 psi
Temperature: 250°
RPM: 200
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2" NPTF
Thread Out: G2 1/2" NPTF
Nominal Width (NW): 1/2"
Wrench Size (SW): 0.87
Height (H): 2.20
Length 1 (L1) :1.77
Length 2 (L2) (overall length): 3.24
Length 3 (L3): 1.14
Length 4 (L4): 2.15
Length 5 (L5): 0.59
Weight:16.2 oz
The Mosmatic WDCS Swivel 43.373 is a premium-grade, high-pressure swivel engineered for high-demand cleaning applications. Made from nickel-plated brass, this swivel is built to resist corrosion and perform reliably under extreme pressure and temperature conditions. It features 2x radial ball bearings for smooth, consistent rotation and includes an integrated protection plate to shield critical components from debris and wear. Sealed with an O-ring NBR, this swivel is rated for 4000 psi, up to 250°F, and 200 RPM, making it an ideal choice for commercial and industrial setups.
Applications
-
High-pressure hose reels for industrial and commercial use
-
Ceiling boom systems in automotive garages and wash bays
-
Stationary and mobile pressure washer setups
-
Car wash tunnels and detailing stations
-
Heavy-duty cleaning systems in demanding environments
Key Features
-
Nickel-plated brass construction for strength and corrosion resistance
-
2x radial ball bearings ensure stable, smooth rotation
-
Protection plate adds durability and shields internal components
-
Thread IN: 1/2” NPTF | Thread OUT: 1/2” NPTM
-
Dimensions: Height – 2.20” | Overall Length – 3.24”
-
Nominal Width (NW): 1/2”
-
Handles up to 4000 psi operating pressure
-
Maximum working temperature of 250°F
-
Rated for 200 RPM in dynamic applications
-
Sealed with O-ring NBR for leak-proof operation
Specs
Pressure: 4000 psi
Temperature: 250°
RPM: 200
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2" NPTF
Thread Out: G2 1/2" NPTM
Nominal Width (NW): 1/2"
Wrench Size (SW): 0.87
Height (H): 2.20
Length 1 (L1) :1.77
Length 2 (L2) (overall length): 3.24
Length 3 (L3): 1.14
Length 4 (L4): 2.15
Length 5 (L5): 0.59
Weight:16.0 oz

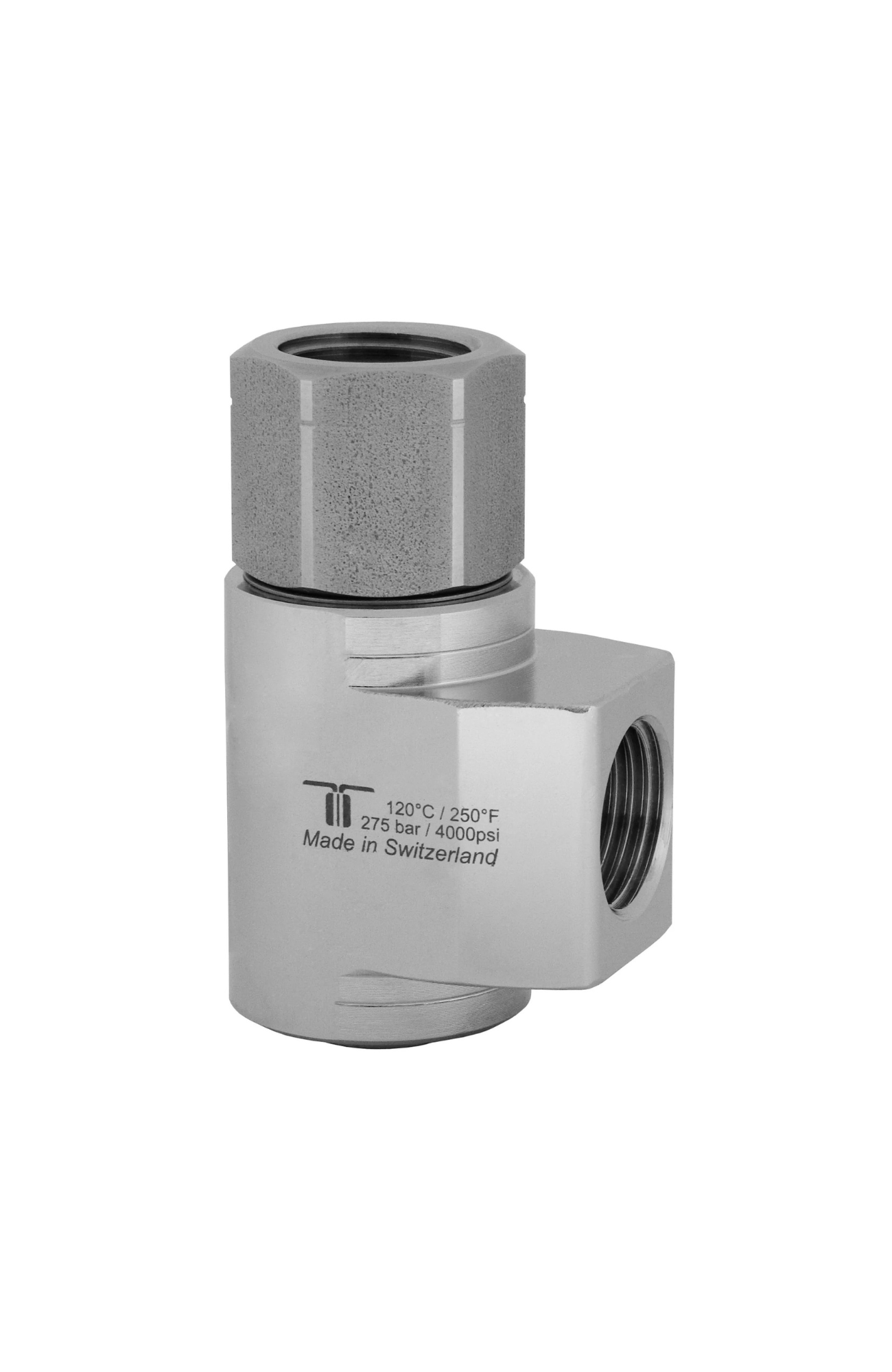

The Mosmatic WDCL Swivel 43.364 is a high-performance, industrial-grade swivel engineered for use in high-pressure cleaning systems. Built from durable brass with a nickel-plated finish, this swivel provides excellent resistance to wear and corrosion. Its dual radial ball bearings support smooth rotation at speeds up to 200 RPM, while the O-ring NBR seal ensures leak-free operation under high stress. With a working pressure of 4000 psi and temperature capacity of 250°F, the 43.364 is a reliable, long-lasting solution for demanding cleaning applications.
Applications
-
Commercial and industrial high-pressure hose reels
-
Ceiling boom arms for wash bays and garages
-
Professional and mobile pressure washing systems
-
Car wash tunnels and detailing equipment
-
Systems requiring smooth, high-RPM swivel rotation
Key Features
-
Nickel-plated brass construction for strength and corrosion resistance
-
Thread IN: ½” NPTF | Thread OUT: ½” NPTF
-
Dual radial ball bearings for high-speed, low-friction operation
-
Compact and efficient: Height – 1.81” | Overall Length – 2.87”
-
Nominal Width (NW): ½”
-
Rated for 4000 psi working pressure
-
Operates in temperatures up to 250°F
-
Supports up to 200 RPM for dynamic applications
-
O-ring NBR seal for reliable leak prevention
Specs
Pressure: 4000 psi
Temperature: 250°
RPM: 200
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2" NPTF
Thread Out: G2 1/2" NPTF
Nominal Width (NW): 1/2"
Wrench Size (SW): 1.06
Height (H): 1.81
Length 1 (L1) :1.77
Length 2 (L2) (overall length): 2.87
Length 3 (L3): 1.14
Length 4 (L4) :1.97
Length 5 (L5) :0.59
Weight:15.5 oz
The Mosmatic WDC Swivel 43.354 is a compact, high-performance swivel engineered for use in demanding high-pressure cleaning systems. Constructed from durable brass with a corrosion-resistant nickel plating, this swivel is equipped with a sliding bearing and O-ring NBR seal for dependable rotation and long service life. It supports pressures up to 4000 psi and operates efficiently in temperatures up to 250°F, making it a reliable solution for a wide range of industrial and commercial applications.
Applications
-
High pressure hose reels
-
Ceiling booms
-
High pressure cleaners
Key Features
-
Durable brass construction with nickel plating
-
Thread IN: ½” NPTF | Thread OUT: ½” NPTF
-
Compact profile: Height – 1.34” | Overall Length – 2.40”
-
Nominal Width (NW): ½”
-
Handles up to 4000 psi of pressure
-
Withstands temperatures up to 250°F
-
Max RPM: 30 for consistent rotation
-
Sliding bearing ensures smooth, controlled movement
-
O-ring NBR seal for reliable sealing and leak prevention
Specs
Pressure: 4000 psi
Temperature: 250°
RPM: 30
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2" NPTF
Thread Out: G2 1/2" NPTF
Nominal Width (NW): 1/2"
Wrench Size (SW): 0.87
Height (H): 1.34
Length 1 (L1) :1.77
Length 2 (L2) (overall length): 2.40
Length 3 (L3): 1.14
Length 4 (L4) :1.73
Length 5 (L5) :0.59
Weight:11.7 oz
The Mosmatic WDBS Swivel 43.272 is a high-performance swivel engineered for durability and smooth operation in high-pressure cleaning systems. Constructed from nickel-plated brass, this swivel is built to withstand harsh industrial conditions. It features 2x radial ball bearings for high-speed rotation, a sliding bearing for enhanced stability, and an integrated protection plate that shields internal components from debris and damage. Sealed with an O-ring NBR, this swivel supports 4000 psi, handles temperatures up to 250°F, and operates at 200 RPM. Its 3/8” NPTF inlet to 3/8” NPTM outlet threading ensures compatibility with standard hose configurations.
Applications
-
High-pressure hose reel assemblies
-
Ceiling booms for industrial and automotive wash bays
-
Pressure washers and cleaning systems
-
Car wash tunnels and self-serve stations
-
Equipment needing reinforced swivel with protection plate
Key Features
-
Nickel-plated brass body for strength and corrosion resistance
-
2x radial ball bearings for smooth, high-speed performance
-
Sliding bearing for added rotational stability
-
Integrated protection plate safeguards internal mechanisms
-
Thread IN: 3/8” NPTF | Thread OUT: 3/8” NPTM
-
Dimensions: Height – 2.20” | Overall Length – 3.07”
-
Nominal Width (NW): 3/8”
-
Rated for 4000 psi working pressure
-
Withstands temperatures up to 250°F
-
Operates at speeds up to 200 RPM
-
Sealed with O-ring NBR for leak-proof reliability
Specs
Pressure: 4000 psi
Temperature: 250°
RPM: 200
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTM
Nominal Width (NW): 3/8"
Wrench Size (SW): 0.87
Height (H): 2.20
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 3.07
Length 3 (L3): 1.14
Length 4 (L4): 1.70
Length 5 (L5): 0.43
Weight:18.5 oz
The Mosmatic WDBL Swivel 43.262 is a high-performance, nickel-plated brass swivel designed for industrial-grade pressure washing and cleaning systems. Engineered for strength, durability, and longevity, it features 2x radial ball bearings for smooth, high-speed rotation under load. Its sliding bearing adds rotational stability, while the O-ring NBR seal ensures a tight, leak-free seal. With ⅜” NPTF inlet and outlet ports, this swivel supports up to 4000 psi, operates at 200 RPM, and withstands temperatures up to 250°F, making it ideal for high-pressure hose reels, ceiling booms, and pressure cleaners.
Applications
-
Industrial high-pressure hose reels
-
Ceiling booms in wash bays and garages
-
Professional-grade pressure washers
-
Car wash systems
-
High-pressure cleaning systems in commercial settings
Key Features
-
Rugged nickel-plated brass construction for corrosion resistance
-
2x radial ball bearings for smooth, stable high-speed rotation
-
Sliding bearing for added support and rotational control
-
Thread IN: ⅜” NPTF | Thread OUT: ⅜” NPTF
-
Size: Height – 1.81” | Overall Length – 2.72”
-
Nominal Width (NW): ⅜”
-
Rated for 4000 psi working pressure
-
Temperature resistant up to 250°F
-
High-RPM capability: 200 RPM max
-
Reliable sealing with O-ring NBR
Specs
Pressure: 4000 psi
Temperature: 250°
RPM: 200
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTM
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.87
Height (H): 1.06
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 1.89
Length 3 (L3): 1.14
Length 4 (L4): 1.10
Length 5 (L5): 0.39
Weight:10.0 oz
The Mosmatic WDB Swivel 43.259 is a compact, high-performance swivel specifically designed for use in Mosmatic ceiling booms and high-pressure hose systems. Manufactured from nickel-plated brass, this swivel provides excellent durability and corrosion resistance. It features a sliding bearing for smooth rotation and an O-ring NBR seal for reliable leak protection. Engineered without a snap ring, it is optimized for integration into Mosmatic ceiling booms. With ⅜” NPTF inlet to G¼” male outlet, this swivel supports up to 4000 psi, 30 RPM, and 250°F, making it ideal for rigorous commercial cleaning applications.
Applications
-
Mosmatic ceiling booms (designed for direct fit)
-
High-pressure hose reels
-
Industrial and commercial pressure cleaners
-
Car wash equipment
-
Service bay and garage pressure wash setups
Key Features
-
Durable nickel-plated brass body for long-lasting performance
-
Sliding bearing enables smooth, controlled rotation
-
No snap ring, tailored for use in Mosmatic ceiling booms
-
Thread IN: ⅜” NPTF | Thread OUT: G¼” M
-
Compact size: Height – 1.06” | Overall Length – 1.77”
-
Nominal Width (NW): ¼”
-
Rated for 4000 psi maximum pressure
-
Handles temperatures up to 250°F
-
Designed for 30 RPM max rotational speed
-
O-ring NBR seal provides secure, leak-free operation
Specs
Pressure: 4000 psi
Temperature: 250°
RPM: 30
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 G1/4" M
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.87
Height (H): 1.06
Length 1 (L1) :1.77
Length 2 (L2) (overall length): 1.77
Length 3 (L3): 1.14
Length 4 (L4): 0.98
Length 5 (L5): 0.43
Weight: 9.6 oz
The Mosmatic WDRS Swivel 41.922 is a premium stainless steel swivel coupling designed for high-pressure hose reels, automatic car wash systems, and industrial high-flow applications. Engineered for long-lasting performance and smooth operation, this swivel ensures reliable rotation and leak-free function in even the most demanding environments.
Featuring a robust dual bearing system with 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.922 provides stable, low-friction performance and reduces wear over time. Its stainless steel construction offers excellent corrosion resistance, making it ideal for use with water, chemicals, and compressed air.
The swivel includes a Thread In of 3/4” NPTF and a Thread Out of 3/4” NPTF, with a nominal width (NW) of 3/4”, overall diameter of 1.97”, and overall length of 6.39”. Rated for up to 3000 PSI, it operates at speeds up to 130 RPM and handles temperatures between 40°F and 180°F. Compatible with pH 3–12 media and 10-micron filtered compressed air up to 290 PSI.
Applications
-
Automatic car wash systems
-
Industrial high-pressure hose reels
-
High-flow water and chemical transfer lines
-
Pneumatic and compressed air tool connections
-
Rotary spray tools and surface cleaners
-
Commercial cleaning and fluid handling setups
Features
-
Durable stainless steel construction for superior corrosion resistance
-
Dual bearing system with 2x radial ball bearings for smooth, stable rotation
-
NBR O-ring seal for effective leak prevention and extended service life
-
Thread In: 3/4” NPTF | Thread Out: 3/4” NPTF
-
Nominal Width (NW): 3/4”
-
Max Pressure: 3000 PSI
-
Max Temperature Range: 40°F to 180°F
-
Max RPM: 130
-
Overall Diameter: 1.97” | Overall Length: 6.39” | Height: 1.69”
-
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)
Specs
Pressure: 3000 psi
Temperature: 40°F - 180°F
RPM: max 130
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 3/4" NPTF
Thread Out: G2 3/4" NPTF
Nominal Width (NW): 3/4"
Wrench Size 2 (SW2): 1.26
Height (H): 1.69
Length 1 (L1) (overall length) : 6.39
Length 2 (L2): 3.54
Length 3 (L3): 3.06
Diameter (D) (overall diameter): 1.97
Weight: 45 oz
The Mosmatic WDRS Swivel 41.921 is a high-quality stainless steel swivel coupling engineered for high-pressure hose reels, automatic car wash systems, and industrial high-flow applications. Designed for smooth, reliable performance, this swivel ensures long-lasting operation in environments where consistent rotation and leak resistance are critical.
Built with a robust dual bearing system featuring 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.921 provides stable, low-friction operation while preventing leaks and extending service life. Its stainless steel body offers excellent corrosion resistance, making it suitable for use with water, chemicals, and compressed air.
The swivel features a Thread In of 1/2” NPTF and a Thread Out of 1/2” NPTM, with a nominal width (NW) of 1/2”, an overall diameter of 1.77”, and an overall length of 6.10”. Rated for up to 3000 PSI, it supports rotational speeds up to 150 RPM and operates within a temperature range of 40°F to 180°F. Compatible with pH 3–12 media and 10-micron filtered compressed air up to 290 PSI.
Applications
-
Automatic car wash systems
-
Industrial high-pressure hose reels
-
High-flow water and chemical transfer systems
-
Pneumatic tool and compressed air line connections
-
Rotary spray tools and surface cleaners
-
Commercial cleaning and spraying equipment
Features
-
Corrosion-resistant stainless steel construction for durability
-
Dual bearing system with 2x radial ball bearings for smooth rotation
-
NBR O-ring seal for reliable leak prevention and long service life
-
Thread In: 1/2” NPTF | Thread Out: 1/2” NPTM
-
Nominal Width (NW): 1/2”
-
Max Pressure: 3000 PSI
-
Max Temperature Range: 40°F to 180°F
-
Max RPM: 150
-
Overall Diameter: 1.77” | Overall Length: 6.10” | Height: 1.57”
-
Suitable for pH 3–12 media and 10-micron filtered compressed air (290 PSI)
Specs
Pressure: 3000 psi
Temperature: 40°F - 180°F
RPM: max 150
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 1/2" NPTF
Thread Out: G2 1/2" NPTM
Nominal Width (NW): 1/2"
Wrench Size 1 (SW1): 0.75
Height (H): 1.57
Length 1 (L1) (overall length) : 6.10
Length 2 (L2): 3.15
Length 3 (L3): 0.60
Length 4 (L4): 3.31
Diameter (D) (overall diameter): 1.77
Weight: 36 oz
The Mosmatic WDRS Swivel 41.662 is a heavy-duty stainless steel swivel coupling designed for high-pressure hose reels, automatic car wash systems, and industrial high-flow applications. Built for long-lasting durability and smooth rotation, this swivel delivers reliable, leak-free operation in demanding environments.
Featuring a dual bearing system with 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.662 ensures low-friction, stable performance while minimizing wear and maintenance. Its robust stainless steel construction offers excellent corrosion resistance, making it ideal for use with water, chemicals, and compressed air systems.
This swivel is designed with a Thread In of 2” NPTF and a Thread Out of 2” NPTF, with a nominal width (NW) of 2”, overall diameter of 3.54”, and an overall length of 7.99”. Rated for up to 3000 PSI, it operates at speeds up to 60 RPM and withstands temperatures from 40°F to 180°F. The unit is compatible with media in the pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.
Applications
-
Automatic car wash systems
-
Industrial high-pressure hose reels
-
High-flow water and chemical transfer lines
-
Pneumatic tool and compressed air connections
-
Rotary spray equipment and surface cleaners
-
Commercial cleaning and fluid handling systems
Features
-
Durable stainless steel construction for superior corrosion resistance
-
Dual bearing system with 2x radial ball bearings for smooth, stable rotation
-
NBR O-ring seal for effective leak prevention and long service life
-
Thread In: 2” NPTF | Thread Out: 2” NPTF
-
Nominal Width (NW): 2”
-
Max Pressure: 3000 PSI
-
Max Temperature Range: 40°F to 180°F
-
Max RPM: 60
-
Overall Diameter: 3.54” | Overall Length: 7.99” | Height: 2.76”
-
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)
Specs
Pressure: 3000 psi
Temperature: 40°F - 180°F
RPM: max 60
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 2" NPTF
Thread Out: G2 2" NPTF
Nominal Width (NW): 2"
Wrench Size 1 (SW1): 2.76
Wrench Size 2 (SW2): 2.76
Height (H): 2.76
Length 1 (L1) (overall length) : 7.99
Length 2 (L2): 5.28
Length 3 (L3): 4.10
Diameter (D) (overall diameter): 3.54
Weight: 190 oz
The Mosmatic WDRS Swivel 41.661 is a high-performance stainless steel swivel designed for large-diameter, high-pressure applications, including automatic car wash systems, industrial hose reels, and high-flow water or chemical transfer. Engineered for durability and precision, this swivel delivers smooth rotation, high stability, and long-lasting reliability in demanding operating conditions.
Equipped with a dual bearing system featuring 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.661 ensures consistent, low-friction operation with effective leak prevention. Its rugged stainless steel construction offers excellent corrosion resistance, making it suitable for use with water, chemicals, and compressed air.
This model includes a Thread In of 2” NPTF and a Thread Out of 2” NPTM, with a nominal width of 2”, an overall diameter of 3.54”, and an overall length of 7.09”. Rated for up to 3000 PSI, it operates at speeds up to 60 RPM and temperatures from 40°F to 180°F. Compatible with media ranging from pH 3–12 and 10-micron filtered compressed air up to 290 PSI.
Applications
-
Automatic car wash systems
-
Industrial high-pressure hose reels
-
High-flow water and chemical transfer lines
-
Pneumatic tool and compressed air connections
-
Surface cleaning and rotary spray equipment
-
Commercial cleaning and spraying systems
Features
-
Heavy-duty stainless steel construction for superior corrosion resistance
-
Dual bearing system with 2x radial ball bearings for smooth and stable rotation
-
NBR O-ring seal for reliable leak protection and long service life
-
Thread In: 2” NPTF | Thread Out: 2” NPTM
-
Nominal Width (NW): 2”
-
Max Pressure: 3000 PSI
-
Max Temperature Range: 40°F to 180°F
-
Max RPM: 60
-
Overall Diameter: 3.54” | Overall Length: 7.09” | Height: 2.76”
-
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)
Specs
Pressure: 3000 psi
Temperature: 40°F - 180°F
RPM: max 60
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 2" NPTF
Thread Out: G2 2" NPTM
Nominal Width (NW): 2"
Wrench Size 1 (SW1): 2.76
Height (H): 2.76
Length 1 (L1) (overall length) : 7.09
Length 2 (L2): 5.28
Length 3 (L3): 0.87
Length 4 (L4): 3.82
Diameter (D) (overall diameter): 3.54
Weight: 173 oz
The Mosmatic WDRS Swivel 41.562 is a high-performance stainless steel swivel coupling designed for automatic car wash systems, industrial hose reels, and high-flow pressure applications. Engineered for smooth, reliable operation, this swivel ensures stable rotation and effective sealing under tough working conditions.
Featuring a dual bearing system with 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.562 provides consistent low-friction performance, minimizes wear, and extends operational life. Its robust stainless steel construction delivers excellent corrosion resistance, making it ideal for use with water, chemicals, and compressed air.
This model includes a Thread In of 1 ½” NPTF and a Thread Out of 1 ½” NPTF, with a nominal width (NW) of 1 ½”, an overall diameter of 2.80”, and an overall length of 6.77”. Rated for pressures up to 3000 PSI, it operates at a maximum speed of 76 RPM and withstands temperatures from 40°F to 180°F. The swivel supports media with a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.
Applications
-
Automatic car wash systems
-
Industrial high-pressure hose reels
-
High-flow water and chemical transfer systems
-
Pneumatic tool and compressed air connections
-
Rotary spray tools and surface cleaners
-
Commercial cleaning and fluid handling systems
Features
-
Stainless steel construction for superior durability and corrosion resistance
-
Dual bearing system with 2x radial ball bearings for smooth, stable rotation
-
NBR O-ring seal for reliable leak prevention and extended service life
-
Thread In: 1 ½” NPTF | Thread Out: 1 ½” NPTF
-
Nominal Width (NW): 1 ½”
-
Max Pressure: 3000 PSI
-
Max Temperature Range: 40°F to 180°F
-
Max RPM: 76
-
Overall Diameter: 2.80” | Overall Length: 6.77” | Height: 2.36”
-
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)
Specs
Pressure: 3000 psi
Temperature: 40°F - 180°F
RPM: max 76
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 1 1/2" NPTF
Thread Out: G2 1 1/2" NPTF
Nominal Width (NW): 1 1/2"
Wrench Size 1 (SW1): 2.17
Wrench Size 2 (SW2): 2.17
Height (H): 2.36
Length 1 (L1) (overall length) : 6.77
Length 2 (L2): 4.33
Length 3 (L3): 3.90
Diameter (D) (overall diameter): 2.80
Weight: 101 oz
The Mosmatic WDRS Swivel 41.561 is a heavy-duty stainless steel swivel coupling designed for high-flow, high-pressure applications including automatic car wash systems, industrial hose reels, and commercial cleaning equipment. Engineered for durability and reliable performance, this swivel ensures smooth rotation and effective sealing even under demanding operating conditions.
Featuring a robust dual bearing system with 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.561 delivers consistent, low-friction operation while minimizing wear and maintenance. Its stainless steel construction provides excellent corrosion resistance, making it suitable for use with water, chemicals, and compressed air.
This model is equipped with a Thread In of 1 ½” NPTF and a Thread Out of 1 ½” NPTM, with a nominal width of 1 ½”. It handles up to 3000 PSI, operates at a maximum speed of 76 RPM, and is rated for temperatures between 40°F and 180°F. Compatible with media ranging from pH 3–12 and 10-micron filtered compressed air up to 290 PSI, the 41.561 is built for dependable, long-term performance.
Applications
-
Automatic car wash systems
-
Industrial high-pressure hose reels
-
High-flow water and chemical transfer applications
-
Pneumatic tool and compressed air line connections
-
Surface cleaners and rotary spray equipment
-
Commercial cleaning and spraying systems
Features
-
Heavy-duty stainless steel construction for superior corrosion resistance
-
Dual bearing system with 2x radial ball bearings for smooth, stable rotation
-
NBR O-ring seal for reliable leak prevention and long-lasting durability
-
Thread In: 1 ½” NPTF | Thread Out: 1 ½” NPTM
-
Nominal Width (NW): 1 ½”
-
Max Pressure: 3000 PSI
-
Max Temperature Range: 40°F to 180°F
-
Max RPM: 76
-
Overall Diameter: 2.80” | Overall Length: 5.91” | Height: 2.36”
-
Supports pH 3–12 media and 10-micron filtered compressed air (290 PSI)
Specs
Pressure: 3000 psi
Temperature: 40°F - 180°F
RPM: max 76
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 1 ½" NPTF
Thread Out: G2 1 ½" NPTM
Nominal Width (NW): 1 ½"
Wrench Size 1 (SW1): 2.17
Height (H): 2.36
Length 1 (L1) (overall length) : 5.91
Length 2 (L2): 4.33
Length 3 (L3): 0.79
Length 4 (L4): 3.27
Diameter (D) (overall diameter): 2.80
Weight: 95 oz
Showing 60/123
Cleaning News
Cleaning News
Cleaning News
