The Mosmatic DGV Swivel 32.564 is a high-performance brass, nickel-plated swivel engineered for HP-Guns, hydraulic systems, and hose connections requiring full rotation under pressure. Featuring a single thrust ball bearing and a durable O-ring NBR seal system (optional EBDM or FKM), this swivel ensures live rotation, excellent resistance to corrosion, and low-maintenance operation even in high-stress environments.
Applications
-
High-pressure spray guns
-
Hydraulic connections
-
Hose reel assemblies
-
Pressure cleaning tools
-
Pneumatic and tangle-free setups
Features
-
Material: Brass with nickel plating
-
Thread IN (G1): 3/8” NPTM
-
Thread OUT (G2): 3/8” NPTF
-
Overall Length: 2.75”
-
Nominal Width (NW): 1/4”
-
Wrench Size (SW): 0.94”
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Seal System: O-ring NBR (upgradeable to EBDM or FKM)
-
Bearing Configuration: 1x thrust ball bearing
-
Advantages: Compact, corrosion resistant, live rotation, no maintenance
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTM
Thread Out: G2 3/8" NPTF
Nominal Width (NW): 1/4”
Wrench Size 1 (SW1): 0.94"
Wrench Size 2 (SW2): 0.87"
Length 1 (L1) (overall length) : 2.75"
Lenght 2 (L2): 0.43"
Weight: 6.2 oz
The Mosmatic DGV Swivel 32.552 is a brass, nickel-plated high-pressure swivel engineered for HP-Guns, hose connections, and hydraulic systems. Designed for tangle-free operation and durability, it supports live rotation at full pressure. With a compact design, it features a single thrust ball bearing and O-ring NBR seal system (EBDM and FKM options available). Ideal for demanding industrial environments, it is corrosion resistant, maintenance free, and built to last.
Applications
-
High-pressure HP-Guns
-
Hydraulic and pneumatic hose systems
-
Hose reel and rotary joint systems
-
Industrial and commercial cleaning tools
Features
-
Material: Brass, nickel-plated
-
Thread Type: 1/4” NPTM inlet x 1/4” NPTF outlet
-
Overall Length: 2.60”
-
Nominal Width (NW): 1/4”
-
Wrench Size (SW): 0.94”
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Seal: O-ring NBR (optional EBDM or FKM)
-
Bearing System: 1x thrust ball bearing
-
Features: Compact, corrosion resistant, and maintenance free
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4" NPTM
Thread Out: G2 1/4" NPTF
Nominal Width (NW): 1/4”
Wrench Size 1 (SW1): 0.94"
Wrench Size 2 (SW2): 0.75"
Length 1 (L1) (overall length) : 2.60"
Lenght 2 (L2): 0.39"
Weight: 5.2 oz
The Mosmatic DGV Swivel 32.864 is a high-quality brass, nickel-plated swivel engineered for high-pressure guns, hose connections, and hydraulic applications requiring smooth, tangle-free operation. Designed for live rotation at maximum pressure, this swivel features a thrust ball bearing and a reliable O-ring NBR seal system, with optional EBDM or FKM material upgrades. Its corrosion-resistant construction, compact size, and maintenance-free performance make it ideal for heavy-duty industrial and commercial use.
Applications
-
High-pressure spray guns
-
Hydraulic hose connections
-
High-pressure hose reels
-
Tangle-free cleaning systems
-
Industrial fluid transfer
Features
-
Material: Brass, nickel plated
-
Thread IN (G1): 1/2” NPTM
-
Thread OUT (G2): 1/2” NPTF
-
Overall Length: 3.01”
-
Nominal Width (NW): 3/8”
-
Wrench Size (SW): 1.06”
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Seal: O-ring NBR (optional: EBDM or FKM)
-
Bearing: 1x thrust ball bearing
-
Design: Compact, corrosion-resistant, and maintenance free
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2" NPTM
Thread Out: G2 1/2" NPTF
Nominal Width (NW): 3/8”
Wrench Size 1 (SW1): 1.06"
Wrench Size 2 (SW2): 1.06"
Length 1 (L1) (overall length) : 3.03"
Lenght 2 (L2): 0.59"
Weight: 8.7 oz
The Mosmatic DGF Swivel - 35.163 is a premium swivel engineered for high-efficiency cleaning in high-pressure environments. Constructed from brass with a durable nickel-plated finish, it provides excellent corrosion resistance and long-term performance. Designed for use in tire cleaning, parts washing, and self-rotating systems, it features a triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth and reliable rotation. An integrated O-ring NBR seal enhances its resistance to temperature, pressure, and wear, making it a dependable solution for industrial and commercial cleaning systems.
Applications:
-
High-pressure cleaning systems
-
Tire and wheel cleaning equipment
-
Parts washers
-
Self-rotating cleaning tools
Key Features:
-
Brass construction with nickel-plated corrosion-resistant finish
-
Triple bearing system: 2 radial + 1 thrust ball bearing
-
O-ring NBR seal for dependable performance
-
Thread IN: 3/8" NPTF | Thread OUT: G3/8" Male
-
Nominal Width (NW): 1/4"
-
Overall Diameter: 2.36"
-
Overall Length: 1.49"
-
Rated for up to 4000 PSI
-
Max rotational speed: 1000 RPM
-
Temperature range: 90°F @ 1000 RPM, 250°F @ 30 RPM
Specs
Pressure: 4000 psi
Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).
RPM: max 1,000 rpm
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8"NPTF
Thread Out: G2 G3/8"M
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87
Wrench Size 2 (SW2): 0.75
Diameter (D) (overall diameter): 2.36
Length 1 (L1) (overall length): 1.49
Length 2 (L2): 0.39
Weight: 11.6oz
The Mosmatic WDB Swivel 43.252 is a compact, heavy-duty swivel engineered for high-pressure cleaning applications. Built from nickel-plated brass, this swivel resists corrosion and ensures long-term performance in industrial environments. It features a sliding bearing for smooth, low-friction rotation and is sealed with an O-ring NBR for secure, leak-resistant operation. With 3/8” NPTF (inlet) to 3/8” NPTM (outlet) threading, this swivel is capable of handling up to 4000 psi, 30 RPM, and 250°F, making it an ideal component for compact, high-pressure hose systems.
Applications
-
High-pressure hose reels in wash bays and mobile cleaning
-
Ceiling boom systems for garages and industrial cleaning
-
High-pressure washer setups
-
Car wash systems and detailing bays
-
Equipment requiring low-speed, high-durability swivel movement
Key Features
-
Rugged brass construction with nickel plating for enhanced durability
-
Thread IN: 3/8” NPTF | Thread OUT: 3/8” NPTM
-
Sliding bearing for smooth rotational performance
-
O-ring NBR seal ensures reliable leak protection
-
Compact form factor: Height – 1.06” | Overall Length – 1.93”
-
Nominal Width (NW): ⅜”
-
Rated for up to 4000 psi working pressure
-
Supports operating temperatures up to 250°F
-
Max rotational speed of 30 RPM
Specs
Pressure: 4000 psi
Temperature: 250°
RPM: 30
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTM
Nominal Width (NW): 3/8"
Wrench Size (SW): 0.87
Height (H): 1.06
Length 1 (L1) :1.77
Length 2 (L2) (overall length): 1.93
Length 3 (L3): 1.14
Length 4 (L4): 1.14
Length 5 (L5): 0.43
Weight: 9.2 oz
The Mosmatic 55.253 DYCI Swivel is a high-flow, high-pressure stainless steel swivel built for self-rotating applications like surface cleaners and parts washers. Designed for intense industrial and commercial cleaning environments, this swivel provides reliable, smooth rotation and long service life.
Featuring a triple bearing system - with two radial ball bearings and one thrust ball bearing - the swivel offers exceptional rotational stability and efficiency. Its carbide seal system ensures high durability and leak prevention under demanding use. Integrated weep holes provide a clear indication of seal failure, allowing for proactive maintenance. Rated for 5000 PSI, 2000 RPM, and 250°F, this swivel is a top-tier component for high-performance cleaning tools.
Applications
-
Commercial surface cleaners
-
High-pressure parts washers
-
Self-rotating nozzles and spray arms
-
Industrial cleaning and automation systems
-
Robotic and rotary pressure washing tools
Key Features
-
Thread In: M22x1.5 Male
-
Thread Out: G3/8" Male
-
Material: 100% stainless steel construction
-
Triple Bearing System: 2 radial + 1 thrust bearing for smooth rotation
-
Seal Type: Carbide seal for high durability under pressure
-
Weep Holes: Provide early warning for seal failure
-
Pressure Capacity: Up to 5000 PSI
-
High-Speed Capability: Up to 2000 RPM
-
Temperature Resistance: Up to 250°F
-
Compact & Durable: Engineered for consistent, long-term use
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: M22x1.5M
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size (SW1): 0.79"
Wrench Size (SW2): 0.63"
Diameter (D1): 2.36"
Diameter (D2): 1.10"
Length 1 (L1): 2.28"
Length 2 (L2): 1.46"
Length 3 (L3): 0.47"
Length 4 (L4): 0.12"
Weight: 23.0 oz
The Mosmatic DGVI Swivel 32.754 is a precision-engineered stainless steel swivel designed for high-pressure hose reels, HP-Guns, and hydraulic applications. Featuring a live-rotation design and robust stainless steel construction, this swivel is built to perform under maximum pressure with zero maintenance required.
With a single thrust ball bearing and O-ring NBR seal system (upgradable to EPDM or FKM), this swivel ensures smooth rotation, excellent seal integrity, and corrosion resistance in the toughest industrial environments.
Applications
-
High-pressure hose reels
-
Hydraulic tools and lines
-
HP-Guns and industrial washdown systems
-
Tangle-free hose management
-
Pressure cleaning machinery
Features
-
Material: 100% stainless steel for maximum durability
-
Thread IN (G1): 3/8” NPTM
-
Thread OUT (G2): 3/8” NPTF
-
Overall Length: 2.75”
-
Nominal Width (NW): 1/4”
-
Wrench Size (SW): 0.94”
-
Max Pressure: 7300 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Bearing System: 1x thrust ball bearing
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Benefits: Live rotation, compact build, maintenance-free, corrosion-resistant
Specs
Pressure: 7300 psi (50 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTM
Thread Out: G2 3/8" NPTF
Nominal Width (NW): 1/4”
Wrench Size 1 (SW1): 0.94"
Wrench Size 2 (SW2): 0.87"
Length 1 (L1) (overall length) : 2.75"
Lenght 2 (L2): 0.43"
Weight: 6.4 oz
The Mosmatic DGVI Swivel 32.779 is designed for high-performance applications in high-pressure hose reels, hydraulic systems, and HP-Guns. Built from stainless steel, it delivers maximum durability, live rotation under pressure, and seamless integration in dynamic environments.
Equipped with a single thrust ball bearing and O-ring NBR seal system (optional EPDM or FKM), this swivel is maintenance-free, corrosion-resistant, and engineered to maintain pressure without binding—ensuring a tangle-free, smooth user experience.
Applications
-
High-pressure hose reels
-
Hydraulic connections
-
High-performance HP-Guns
-
Tangle-free cleaning equipment
-
Industrial fluid transfer systems
Features
-
Material: Full stainless steel construction
-
Thread IN (G1): 3/8” NPTF
-
Overall Length: 3.20”
-
Nominal Width (NW): 1/4”
-
Wrench Size (SW): 0.94”
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Bearing System: 1x thrust ball bearing
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Design: Compact, corrosion-resistant, and maintenance-free
Specs
Pressure: 5000 psi (35 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
D (Diameter): ø0.60
Thread In: G1 3/8" NPTF
Nominal Width (NW): 1/4”
Wrench Size 1 (SW1): 0.94"
Wrench Size 2 (SW2): 0.87"
Length 1 (L1) (overall length) : 3.20"
Weight: 6.2 oz
The Mosmatic DGV Swivel 32.569 is a brass, nickel-plated swivel built for superior performance in high-pressure systems. Designed for HP-Guns, hydraulic applications, and hose connections, it provides smooth and reliable rotation under pressure. The single thrust ball bearing and O-ring NBR seal (with optional EBDM or FKM upgrades) offer leak-free operation and extended service life. This swivel is ideal for keeping hoses tangle-free while ensuring optimal flow and control, all in a compact, corrosion-resistant, and maintenance-free design.
Applications
-
High-pressure spray guns
-
Hydraulic and pneumatic hose connections
-
Industrial fluid handling
-
Hose reels and car wash systems
-
Anti-kink swivel joints
Features
-
Material: Brass, nickel plated
-
Thread IN (G1): 3/8” NPTF
-
Thread OUT (G2): 3/8” NPTF
-
Overall Length: 2.87”
-
Nominal Width (NW): 1/4”
-
Wrench Size (SW): 0.94”
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Seal System: O-ring NBR (optional: EBDM or FKM)
-
Bearing Type: 1x thrust ball bearing
-
Design Benefits: Compact, corrosion-resistant, tangle-free, maintenance-free
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTF
Nominal Width (NW): 1/4”
Wrench Size 1 (SW1): 0.94"
Wrench Size 2 (SW2): 0.87"
Length 1 (L1) (overall length) : 2.87"
Weight: 7.1 oz
Ensure reliable performance of your Mosmatic WDG Swivel with the Mosmatic WDG Swivel Seal Kit 40.502 - NW 1/4”. This professional-grade replacement kit includes precision-engineered NBR O-rings, designed specifically for WDG Swivels with a nominal width of 1/4 inch. Ideal for use in ceiling booms, high-pressure hose reels, and high-pressure cleaners, this kit restores leak-free operation and prolongs the life of your swivel system. An essential maintenance component for demanding environments.
Mosmatic - DYL/DYG/DYF/DYW/DYCI/DYDI/DYT/DYU Swivel Seal Kit - 36.905 - NW 1/4"
$117.00 USD
Unit price perMosmatic - DYL/DYG/DYF/DYW/DYCI/DYDI/DYT/DYU Swivel Seal Kit - 36.905 - NW 1/4"
$117.00 USD
Unit price perEnsure long-lasting, high-performance operation of your Mosmatic swivel with the Mosmatic Seal Kit 36.905 - NW ¼”. This premium carbide seal kit is designed for DYL, DYG, DYF, DYW, DYCI, DYDI, DYT, and DYU Swivels with a nominal width of ¼ inch. Engineered for high-pressure and high-RPM applications, it’s ideal for surface cleaners, wall cleaners, tire cleaners, parts washers, and self-rotating systems. Built to withstand intense operating conditions, this kit ensures leak-free, durable swivel performance in professional cleaning environments.
The Mosmatic DGG Swivel 33.351 (90 Degrees) is a high-precision, brass, nickel-plated swivel designed for high-pressure, self-rotating cleaning applications. Built to perform in demanding environments like tire washers, parts cleaning systems, and industrial surface cleaners, this swivel ensures longevity and efficiency.
Featuring a compact 90-degree angle design, it includes a triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, reliable operation. The swivel is sealed with a dependable O-ring NBR system, with optional upgrades to EPDM or FKM for chemical resistance. Designed for corrosion resistance, easy bulkhead mounting, and maintenance-free use, the 33.351 delivers long-term durability and exceptional precision.
Applications
-
High-pressure rotating cleaning systems
-
Tire and underbody cleaning equipment
-
Parts washers and degreasers
-
Industrial wash stations
-
Surface cleaners and sprayers
Key Features
-
Design: 90° angled swivel
-
Material: Brass, nickel plated
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Bearing Type: Triple bearing (2x radial, 1x thrust)
-
Thread IN (G1): 1/4” NPTF
-
Thread OUT (G2): 1/4” NPTM
-
Overall Diameter: 1.34”
-
Overall Length: 2.71”
-
Nominal Width (NW): 1/4”
-
Wrench Size (SW): 0.87”
-
Max Pressure: 4000 PSI
-
Max RPM: 1000
-
Max Temperature:
-
90°F at 1000 RPM
-
250°F at 30 RPM
-
-
Mounting Style: Bulkhead
-
Maintenance: Maintenance-free
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 90°F at 1000 RPM, 250°F at 30 RPM
RPM: max 1,000 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8” NPTF
Thread Out: G2 1/4” NPTM
Nominal Width (NW): 1/4”
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.67"
Wrench Size 3 (SW3): 1.34"
Diameter (D) (overall diameter): 1.34"
Length 1 (L1) (overall length) : 2.71"
Length 2 (L2): 0.43"
Weight: 7.8 oz

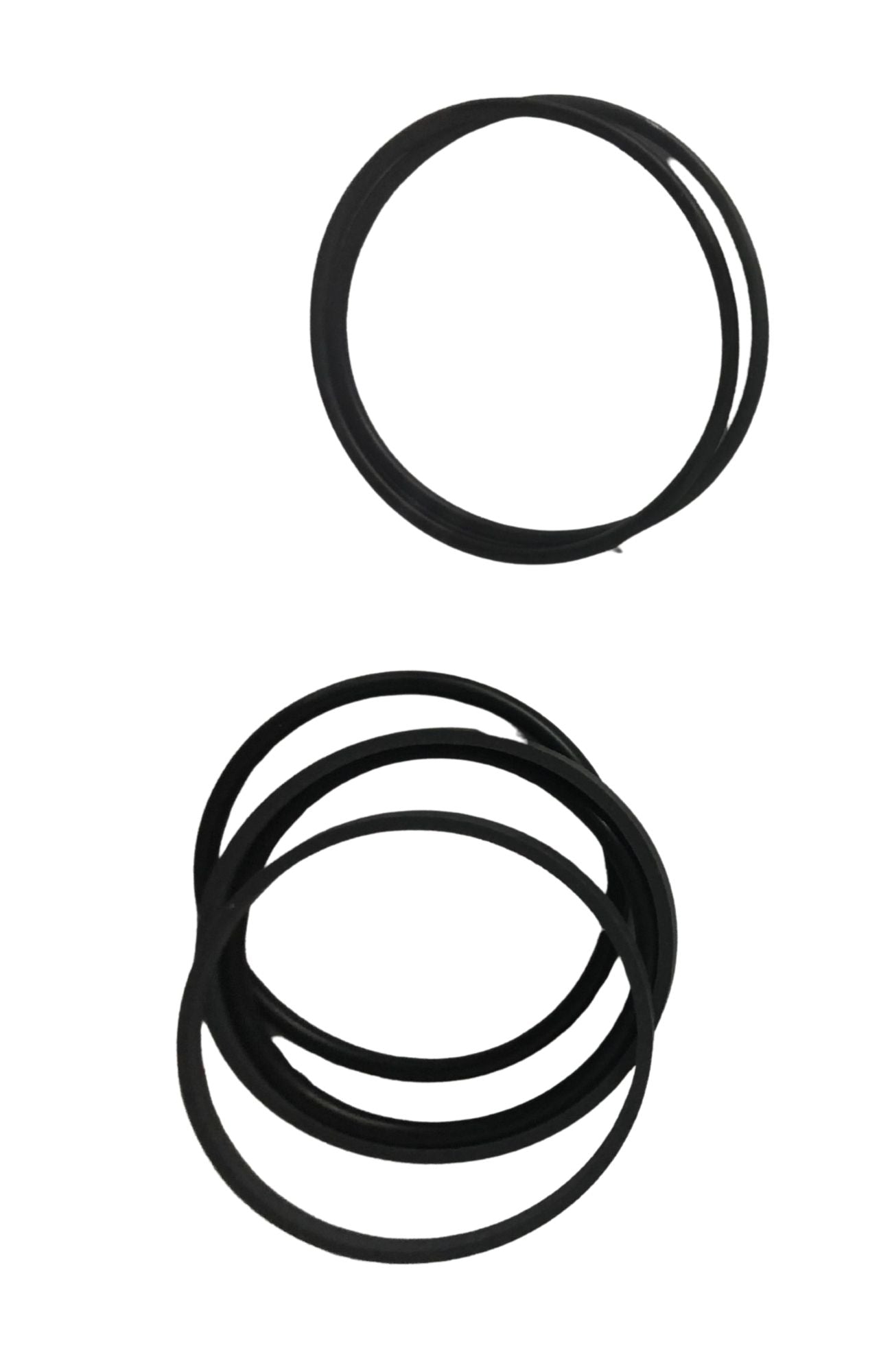

The Mosmatic Seal Kit (External Ring + O-Ring) - 64.501 is a replacement seal kit designed to ensure a secure, leak-proof connection in high-pressure equipment. It includes both an external ring and O-ring, making it ideal for maintaining optimal sealing performance in Mosmatic pressure cleaning systems. This kit is essential for keeping your system running smoothly and preventing leaks, extending the lifespan of your equipment.
The Mosmatic 55.163 DYCI Swivel is a premium stainless steel swivel built for high-flow, high-pressure, self-rotating applications such as surface cleaners and parts washers. Precision-engineered for performance and durability, this swivel is ideal for use in commercial and industrial cleaning systems.
It features a triple bearing system - comprising two radial ball bearings and one thrust ball bearing - for stable, smooth rotation. A carbide seal system ensures long-lasting sealing performance, while integrated weep holes provide early warning in the event of seal failure. With a pressure capacity of 5000 PSI, it’s designed to operate efficiently at up to 2000 RPM and 250°F, delivering consistent, high-performance rotation.
Applications
-
High-pressure surface cleaners
-
Self-rotating cleaning nozzles and tools
-
Industrial parts washers
-
Automated or robotic cleaning systems
-
Commercial pressure washing setups
Key Features
-
Thread In: 3/8" NPT Female
-
Thread Out: G3/8" Male
-
Material: Full stainless steel construction
-
Triple Bearing System: Includes 2 radial and 1 thrust bearing
-
Seal System: Durable carbide seal for high-pressure performance
-
Weep Holes: Built-in for early seal failure detection
-
High Pressure & Speed Rated: 5000 PSI / 2000 RPM
-
Temperature Resistant: Up to 250°F
-
Compact & Reliable: Efficient form factor with dual wrench flats
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8" NPTF
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size (SW1): 0.87"
Wrench Size (SW2): 0.63"
Diameter (D1): 2.36"
Diameter (D2): 1.10"
Length 1 (L1): 2.28"
Length 2 (L2): 1.46"
Length 3 (L3): 0.47"
Length 4 (L4): 0.12"
Weight: 23.0 oz
The Mosmatic DXGI Swivel 37.168 is a high-precision stainless steel swivel engineered for high-RPM, self-rotating cleaning systems. Ideal for surface cleaners, parts washers, and tire cleaning applications, this swivel offers exceptional corrosion resistance, leak protection, and smooth performance. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for stable and efficient rotation. A ceramic seal system ensures long-lasting, leak-free operation under pressure. With a secure bulkhead mounting design and maintenance-free construction, the DXGI 37.168 delivers industrial-grade reliability for the most demanding environments.
Applications
-
Surface cleaners
-
Parts washers
-
Tire and wheel cleaning tools
-
Self-rotating, high-RPM cleaning systems
-
Industrial and commercial pressure washing equipmentv
Key Features
-
Corrosion-resistant stainless steel body
-
Triple bearing system: 2x radial, 1x thrust ball bearing
-
Ceramic seal system for superior leak protection
-
Designed for high-RPM, self-rotating cleaning tools
-
Maintenance-free performance
-
Bulkhead fitting for secure, fixed installation
-
Thread IN: 3/8" NPTF | Thread OUT: G3/8” M
-
Max Pressure: 2500 PSI (17 MPa)
-
Max RPM: 2000
-
Temperature Range: 40°F – 250°F
-
Overall Diameter: 1.42”
-
Overall Length: 3.14”
-
Nominal Width (NW): 1/4”
-
Wrench Size (SW): 0.87”
Specs
Pressure: 2500 psi (17 MPa)
Temperature: 40°- 250°
RPM: max 2,000 rpm
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: Ceramic
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8” NPTF
Thread Out: G2 G3/8”M
Nominal Width (NW): 1/4”
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.75"
Wrench Size 3 (SW3): 1.42"
Diameter (D) (overall diameter): 1.42"
Length 1 (L1) (overall length) : 3.14"
Length 2 (L2): 0.39"
Weight: 9.7 oz
Showing 15/477
