The Mosmatic DGLI Swivel 31.943 is a high-performance stainless steel swivel engineered for demanding applications involving thrust and radial forces. Ideal for automatic car wash systems and high-pressure hose reels, this swivel supports high flow and delivers reliable performance under pressure.
Designed with a triple bearing system—featuring two radial ball bearings and one thrust bearing—the DGLI 31.943 ensures smooth operation and longevity. It comes with a durable O-ring NBR seal system, with optional EPDM or FKM upgrades for improved chemical resistance. Corrosion-resistant and maintenance-free, this swivel provides precision and durability in every application.
Applications
-
Automatic and tunnel car washes
-
High-pressure hose reel systems
-
Commercial vehicle wash bays
-
Industrial cleaning equipment
-
Self-rotating cleaning tools
Key Features
-
Model: Mosmatic DGLI 31.943
-
Material: Stainless Steel
-
Thread IN (G1): 3/8" NPTF
-
Thread OUT (G2): G3/8" M
-
Seal Type: O-ring NBR (optional EPDM or FKM)
-
Bearing System: Triple bearing (2 radial, 1 thrust)
-
Mounting: Bulkhead fitting
-
Corrosion Resistant: Yes
-
Maintenance: Maintenance-free
-
Overall Diameter: 0.98”
-
Overall Length: 2.59”
-
Nominal Width (NW): 1/4”
-
Wrench Size (SW): 0.87”
-
Max Pressure: 4000 PSI
-
Max RPM: 1000
-
Temperature Range:
-
90°F at 1000 RPM
-
250°F at 30 RPM
-
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 90°F at 1000 RPM, 250°F at 30 RPM
RPM: max 1,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 G3/8" M
Nominal Width (NW): 1/4”
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.75"
Length 1 (L1) (overall length) : 2.59"
Length 2 (L2): 0.47"
Diameter (D) (overall diameter): 0.98"
Weight: 5.7 oz
The Mosmatic DGLI Swivel 31.942 is a high-performance stainless steel swivel designed to handle both thrust and radial forces in high-flow, high-pressure cleaning applications. Built for automatic car wash systems and hose reels, it delivers unmatched durability, smooth rotation, and long-term reliability.
This model features a triple bearing system—two radial ball bearings and one thrust bearing—along with a dependable O-ring NBR seal system (optional: EPDM or FKM). Its corrosion-resistant stainless steel construction and bulkhead mount design make it ideal for harsh environments and continuous operation with minimal maintenance.
Applications
-
Automatic and tunnel car wash systems
-
High-pressure hose reels
-
Commercial wash bays
-
Agricultural and industrial equipment cleaning
-
Water recovery systems
Key Features
-
Model: Mosmatic DGLI 31.942
-
Material: Stainless Steel
-
Thread IN (G1): 3/8" NPTF
-
Thread OUT (G2): 3/8" NPTF
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Bearing Type: Triple bearing (2 radial, 1 thrust)
-
Mounting Style: Bulkhead
-
Corrosion Resistant: Yes
-
Maintenance: Maintenance-free design
-
Overall Diameter: 0.98”
-
Overall Length: 2.87”
-
Nominal Width (NW): 1/4”
-
Wrench Size (SW): 0.87”
-
Maximum Pressure: 4000 PSI
-
Maximum RPM: 1000
-
Max Temperature:
-
90°F at 1000 RPM
-
250°F at 30 RPM
-
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 90°F at 1000 RPM, 250°F at 30 RPM
RPM: max 1,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTF
Nominal Width (NW): 1/4”
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.87"
Length 1 (L1) (overall length) : 2.87"
Diameter (D) (overall diameter): 0.98"
Weight: 6.5 oz
The Mosmatic DGK Swivel 32.986 is engineered to enhance precision and control for compressed air and paint guns. Featuring a nickel-plated brass/stainless steel body, this swivel ensures corrosion resistance and extended service life in professional environments.
Equipped with a thrust ball bearing and O-ring NBR seal system (optional EPDM or FKM), the swivel allows for smooth 360° rotation at high pressure. Designed with an ISO-6150 B-profile plug nipple, it supports versatile connections, making it a top-tier choice for industrial-grade spray and air gun applications.
Applications
-
Compressed air tools
-
Spray and paint guns
-
Pneumatic equipment
-
Automotive detailing
-
Industrial and workshop use
Features
-
Material: Stainless steel/brass with nickel plating
-
Thread IN (G1): G1/4" Female
-
Plug Nipple: ISO-6150 B-profile
-
Connection Size (S1): 1/4"
-
Overall Length: 2.24"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.67"
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Bearing: 1x thrust ball bearing
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Benefits: Easy rotation, plug-and-play design, enhanced mobility
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Stainless steel, Brass, Nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 G1/4" F
S1: 1/4"
Nominal Width (NW): 1/4”
Wrench Size 1 (SW1): 0.67"
Length 1 (L1) (overall length) : 2.24"
Lenght 2 (L2): 0.94"
Lenght 3 (L3): 1.30"
Diameter 1 (D1): 0.46"
Diameter 2 (D2): 0.31"
Weight: 2.8 oz
The Mosmatic WDEI Swivel 40.465 is a heavy-duty, stainless steel swivel engineered for high-performance in industrial hose reel and pressure systems. Designed for durability in harsh environments, it features a sliding bearing for smooth, low-resistance rotation and a standard O-ring NBR seal, with optional EPDM or FKM materials available for enhanced chemical and temperature compatibility. With a 1” NPTF inlet and 1” NPTM outlet, this swivel supports operating pressures up to 3000 psi, speeds up to 30 RPM, and temperatures up to 250°F—ideal for large-diameter hose applications where flow efficiency and strength are critical.
Applications
-
Heavy-duty hose reels
-
Industrial fluid transfer systems
-
Pressure washer and cleaning systems
-
OEM equipment and component integration
Features
-
Stainless steel construction for corrosion and wear resistance
-
Sliding bearing for reliable, smooth rotational performance
-
Thread IN: 1” NPTF | Thread OUT: 1” NPTM
-
Dimensions: Overall Diameter – 2.35” | Overall Length – 3.54”
-
Nominal Width (NW): 1”
-
Rated for up to 3000 psi working pressure
-
Max temperature: 250°F
-
Rotational speed: 30 RPM max
-
O-ring NBR sealing (optional EPDM or FKM available for special media requirements)
Specs
Pressure: 3000 psi (20 MPa)
Temperature: 250°F
RPM: 30
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1" NPTF
Thread Out: G2 1" NPTM
Nominal Width (NW): 1"
Wrench Size (SW): 1.61
Length 1 (L1): 3.35
Length 2 (L2) (overall length): 3.54
Length 3 (L3): 1.89
Length 4 (L4): 2.36
Diameter (D1): 2.35
Weight: 37.7 oz
The Mosmatic WDEI Swivel 40.464 is a heavy-duty, stainless steel swivel built to deliver long-lasting performance in high-pressure hose reel systems. Engineered for strength and reliability, this swivel features a sliding bearing for smooth rotational movement and a standard O-ring NBR seal, with optional EPDM or FKM seals available to accommodate a wider range of chemicals and temperatures. Designed with 3/4” NPTF inlet to 3/4” NPTM outlet, it handles 3000 psi, supports up to 30 RPM, and operates in temperatures up to 250°F. Its durable construction and wide internal diameter make it ideal for industrial cleaning and fluid transfer systems.
Applications
-
High-flow hose reel swivels
-
Car wash booms and ceiling arms
-
Industrial cleaning with water or chemicals
-
Food-grade washdown systems
-
Fluid transport under 3000 psi
Features
-
Stainless steel construction for superior corrosion and wear resistance
-
Sliding bearing ensures smooth and stable operation
-
Thread IN: ¾” NPTF | Thread OUT: ¾” NPTM
-
Dimensions: Overall Diameter – 2.16” | Overall Length – 3.34”
-
Nominal Width (NW): ¾”
-
Rated for up to 3000 psi working pressure
-
Handles temperatures up to 250°F
-
Max rotational speed: 30 RPM
-
Equipped with O-ring NBR seal, optional EPDM or FKM available for specialized media compatibility
Specs
Pressure: 3000 psi (20 MPa)
Temperature: 250°F
RPM: 30
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/4" NPTF
Thread Out: G2 3/4" NPTM
Nominal Width (NW): 3/4"
Wrench Size (SW): 1.42
Length 1 (L1): 2.95
Length 2 (L2) (overall length): 3.34
Length 3 (L3): 1.89
Length 4 (L4): 2.26
Diameter (D1): 2.16
Weight: 27.5 oz
The Mosmatic WDEI Swivel 40.461 is a high-pressure stainless steel swivel engineered for durability and high-performance in hose reel systems. Built with a sliding bearing for smooth rotation and sealed with a high-quality O-ring NBR—with optional EPDM or FKM for expanded chemical or thermal compatibility—this swivel is designed to handle extreme conditions. Featuring 1/4” NPTF inlet and 1/4” NPTM outlet, the WDEI 40.461 supports up to 5800 psi, 30 RPM, and 250°F, making it an ideal solution for demanding industrial hose reel applications where strength and reliability are critical.
Applications
-
High pressure hose reels
-
Industrial fluid handling systems
-
Equipment requiring high-pressure swivel connections
Features
-
Stainless steel construction for maximum strength and corrosion resistance
-
Sliding bearing for smooth and stable rotation
-
Thread IN: 1/4” NPTF | Thread OUT: 1/4” NPTM
-
Dimensions: Overall Diameter – 1.26” | Overall Length – 2.13”
-
Nominal Width (NW): 1/4”
-
Rated for up to 5800 psi of operating pressure
-
Handles temperatures up to 250°F
-
Supports rotational speeds up to 30 RPM
-
Sealing system includes O-ring NBR (optional EPDM or FKM seals available)
Specs
Pressure: 5800 psi (40 MPa)
Temperature: 250°F
RPM: 30
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4" NPTF
Thread Out: G2 1/4" NPTM
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.87
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 2.13
Length 3 (L3): 1.14
Length 4 (L4): 1.50
Diameter (D1): 1.26
Weight: 9.2 oz
The Mosmatic WDEI Swivel 40.462 is a high-pressure stainless steel swivel designed for durability and peak performance in hose reel applications. Engineered with a sliding bearing for smooth, consistent rotation, this swivel is ideal for demanding environments where reliability is key. It features a standard O-ring NBR seal, with optional EPDM or FKM for enhanced compatibility with specific fluids or elevated temperatures. The swivel's 3/8” NPTF inlet to 3/8” NPTM outlet connection supports up to 5800 psi, 30 RPM, and 250°F, making it a trusted solution for industrial pressure systems.
Applications
-
High pressure hose reels
-
Industrial cleaning systems
-
Equipment requiring high-strength swivel connections
-
Chemical or fluid handling applications (with optional seals)
Features
-
Stainless steel construction for corrosion resistance and durability
-
Sliding bearing enables smooth and controlled rotation
-
Thread IN: 3/8” NPTF | Thread OUT: 3/8” NPTM
-
Dimensions: Overall Diameter – 1.26” | Overall Length – 2.17”
-
Nominal Width (NW): 3/8”
-
Supports pressures up to 5800 psi
-
Withstands temperatures up to 250°F
-
Max RPM: 30
-
Sealing system: O-ring NBR (optional EPDM or FKM for chemical compatibility)
Specs
Pressure: 5800 psi (40 MPa)
Temperature: 250°F
RPM: 30
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTM
Nominal Width (NW): 3/8"
Wrench Size (SW): 0.87
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 2.17
Length 3 (L3): 1.14
Length 4 (L4): 1.54
Diameter (D1): 1.26
Weight: 8.7 oz
The Mosmatic WDEI Swivel 40.463 is a premium stainless steel swivel designed for high-performance hose reel applications in industrial and commercial environments. Built to withstand high pressure and temperature, it features a sliding bearing for smooth, low-resistance rotation and a standard O-ring NBR seal, with optional EPDM or FKM seal materials available for enhanced chemical and thermal compatibility. With a ½” NPTF inlet and ½” NPTM outlet, this swivel is capable of handling 5800 psi, up to 30 RPM, and a maximum temperature of 250°F, making it a robust and reliable solution for demanding operations.
Applications
-
High pressure hose reels
-
Industrial fluid and chemical transfer
-
Commercial pressure washing systems
-
OEM assembly and equipment integration
Features
-
Stainless steel construction for superior durability and corrosion resistance
-
Sliding bearing ensures stable and efficient rotational movement
-
Thread IN: 1/2” NPTF | Thread OUT: 1/2” NPTM
-
Dimensions: Overall Diameter – 1.57” | Overall Length – 2.60”
-
Nominal Width (NW): 1/2”
-
Rated for up to 5800 psi working pressure
-
Tolerates temperatures up to 250°F
-
Max RPM: 30 for consistent rotational performance
-
Sealing system includes O-ring NBR, with optional EPDM or FKM for varied media compatibility
Specs
Pressure: 5800 psi (40 MPa)
Temperature: 250°F
RPM: 30
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2" NPTF
Thread Out: G2 1/2" NPTM
Nominal Width (NW): 1/2"
Wrench Size (SW): 0.87
Length 1 (L1): 1.97
Length 2 (L2) (overall length): 2.60
Length 3 (L3): 1.34
Length 4 (L4): 1.81
Diameter (D1): 1.57
Weight: 13.2 oz
The Mosmatic DGVI Swivel 32.773 is a high-performance stainless steel swivel connector designed for use in high-pressure hose reels, hydraulic systems, and HP-Guns. With a 1/4” NPTM inlet, this swivel delivers live rotation under pressure for smooth, tangle-free hose movement.
Built for durability and corrosion resistance, it features a single thrust ball bearing and a reliable O-ring NBR seal system. The compact design makes it perfect for tight installations in industrial and commercial cleaning systems.
Applications
-
High-pressure hose reels
-
Hydraulic equipment
-
Pressure washing and HP-Guns
-
Tangle-free hose management
-
Industrial cleaning systems
Features
-
Material: Complete stainless steel construction
-
Thread IN (G1): 1/4” NPTM
-
Overall Length: 2.80”
-
Nominal Width (NW): 1/4”
-
Wrench Size (SW): 0.94”
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Bearing System: 1x thrust ball bearing
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Performance: Live rotation, corrosion resistant, maintenance free
Specs
Pressure: 5000 psi (35 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
D (Diameter): ø0.47
Thread In: G1 1/4" NPTM
Nominal Width (NW): 1/4”
Wrench Size 1 (SW1): 0.94"
Wrench Size 2 (SW2): 0.67"
Length 1 (L1) (overall length) : 2.80"
Lenght 2 (L2): 0.43"
Weight: 4.2 oz

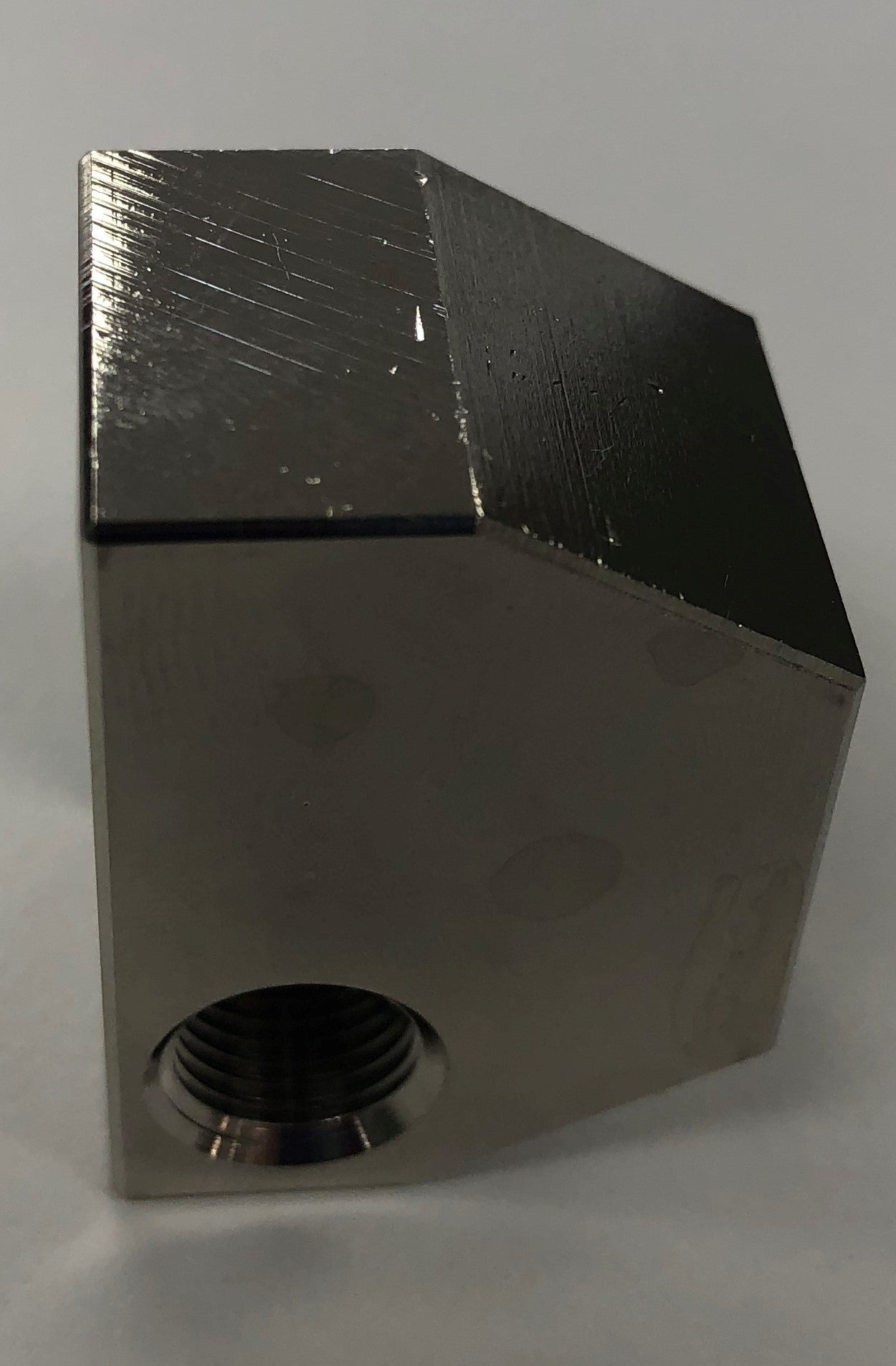

Manifold brass-nickel-plated, TRA-3"-2fs2 G3/8"F 2xM10x1-F
High pressure hose reels, ceiling booms, high pressure cleaners
- Slide or dual bearings systems
- Stainless steel
- Maintenance free
Technical data
- Pressure: 4000 psi (27.5 MPa)
- Temperature: 250°F
- RPM: see chart (max. rpm)
- Body: brass, nickel plated
- Inner part: Stainless steel
- Seal: O-ring NBR (optional: EPDM or FKM)
- Bearing: WDC: sliding bearing, WDCL: 2x radial ball bearings, WDCS: 2x radial ball bearings
- Throughput: pH 3-12
- Medium: filtered 10 microns, compressed air (290 psi)
The Mosmatic WDEI Swivel 40.465B – Box of 10 Units provides a durable, high-performance swivel solution for industrial hose reels and large-diameter fluid systems. Each swivel is made from premium stainless steel and designed for long-term reliability in high-pressure environments. Featuring a sliding bearing for smooth rotation and sealed with a standard O-ring NBR—with optional EPDM or FKM seals for chemical or high-temp applications—these swivels offer consistent performance under heavy use. With 1” NPTF inlet and 1” NPTM outlet, each unit supports 3000 psi, 30 RPM, and temperatures up to 250°F, making this 10-piece bulk pack ideal for OEMs, maintenance operations, and large-scale equipment installs.
Applications
-
Large-diameter hose reels
-
Commercial and industrial washdown systems
-
Chemical and food-grade processing equipment
-
Fluid transfer setups requiring corrosion resistance
-
OEM or maintenance installs for high-flow systems
Features
-
Box includes 10 stainless steel swivels
-
Thread IN: 1” NPTF | Thread OUT: 1” NPTM
-
Robust stainless steel construction for corrosion and pressure resistance
-
Sliding bearing ensures smooth, consistent rotation
-
Standard O-ring NBR seal with optional EPDM or FKM for chemical/media compatibility
-
Dimensions per unit: Overall Diameter – 2.35” | Overall Length – 3.54”
-
Nominal Width (NW): 1”
-
Rated for up to 3000 psi and 250°F
-
Max operating speed: 30 RPM
Specs
Pressure: 3000 psi (20 MPa)
Temperature: 250°F
RPM: 30
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1" NPTF
Thread Out: G2 1" NPTM
Nominal Width (NW): 1"
Wrench Size (SW): 1.61
Length 1 (L1): 3.35
Length 2 (L2) (overall length): 3.54
Length 3 (L3): 1.89
Length 4 (L4): 2.36
Diameter (D1): 2.35
Box: 10 pcs
Weight: 37.7 oz
The Mosmatic WDEI Swivel 40.464B – Box of 10 Units provides a reliable, high-quality swivel solution for industrial hose reel and pressure washing systems. Each swivel is built from premium stainless steel to withstand corrosion and high-pressure use in harsh environments. Designed with a sliding bearing for smooth operation and a standard O-ring NBR seal, these swivels also offer optional EPDM or FKM seal materials for enhanced compatibility with a variety of chemicals and fluids. With a 3/4” NPTF inlet and 3/4” NPTM outlet, each unit is rated for 3000 psi, 250°F, and 30 RPM, making this 10-piece bulk pack ideal for OEMs, maintenance crews, and industrial equipment suppliers.
Applications
-
OEM packaging for industrial cleaning setups
-
Large hose reel systems in food and chemical sectors
-
Commercial pressure wash infrastructure
-
Washdown systems requiring 3/4" NPT connection
-
Bulk supply for maintenance departments
Features
-
Box includes 10 stainless steel swivels
-
Thread IN: 3/4” NPTF | Thread OUT: 3/4” NPTM
-
Made from corrosion-resistant stainless steel
-
Sliding bearing ensures consistent, smooth rotation
-
Per swivel dimensions: Overall Diameter – 2.16” | Overall Length – 3.34”
-
Nominal Width (NW): 3/4”
-
Supports up to 3000 psi operating pressure
-
Max temperature rating: 250°F
-
30 RPM max rotational speed
-
Sealing: O-ring NBR standard, with optional EPDM or FKM for specific fluid compatibility
Specs
Pressure: 3000 psi (20 MPa)
Temperature: 250°F
RPM: 30
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/4" NPTF
Thread Out: G2 3/4" NPTM
Nominal Width (NW): 3/4"
Wrench Size (SW): 1.42
Length 1 (L1): 2.95
Length 2 (L2) (overall length): 3.34
Length 3 (L3): 1.89
Length 4 (L4): 2.26
Diameter (D1): 2.16
Box: 10 pcs.
Weight: 27.5 oz
The Mosmatic WDEI Swivel 40.463B – Box of 25 Units offers a cost-effective, high-performance solution for industrial hose reel systems and OEM applications. Each swivel is crafted from corrosion-resistant stainless steel, ensuring long-lasting durability under high-pressure conditions. Featuring a sliding bearing for smooth rotation and sealed with a dependable O-ring NBR (with optional EPDM or FKM seals available), these swivels handle demanding environments with ease. With 1/2” NPTF inlet and 1/2” NPTM outlet threading, they are rated for 5800 psi, 250°F, and up to 30 RPM, making this bulk pack ideal for maintenance teams, equipment manufacturers, and high-volume operations.
Applications
-
High pressure hose reels
-
Industrial fluid handling systems
-
OEM and equipment production lines
-
Pressure washing and cleaning systems
Features
-
Box includes 25 stainless steel swivels
-
Durable stainless steel body for superior corrosion resistance
-
Sliding bearing for smooth and reliable rotational movement
-
Thread IN: 1/2” NPTF | Thread OUT: 1/2” NPTM
-
Per unit dimensions: Overall Diameter – 1.57” | Overall Length – 2.60”
-
Nominal Width (NW): 1/2”
-
Rated for up to 5800 psi operating pressure
-
Withstands temperatures up to 250°F
-
Max RPM: 30 per swivel
-
Includes O-ring NBR seal (with optional EPDM or FKM for specialized applications)
Specs
Pressure: 5800 psi (40 MPa)
Temperature: 250°F
RPM: 30
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2" NPTF
Thread Out: G2 1/2" NPTM
Nominal Width (NW): 1/2"
Wrench Size (SW): 0.87
Length 1 (L1): 1.97
Length 2 (L2) (overall length): 2.60
Length 3 (L3): 1.34
Length 4 (L4): 1.81
Diameter (D1): 1.57
Box: 25 pcs.
Weight: 13.2 oz
The Mosmatic WDEI Swivel 40.462B – Box of 25 Units offers a high-quality, bulk solution for outfitting hose reels in industrial and commercial high-pressure systems. Constructed from premium stainless steel, each swivel features a sliding bearing for smooth, low-friction rotation and an O-ring NBR seal for reliable leak protection. Optional EPDM or FKM seals are available to accommodate a wide range of fluids and temperatures. Designed with ⅜” NPTF inlet and ⅜” NPTM outlet, these swivels support 5800 psi, operate at 30 RPM, and withstand temperatures up to 250°F, making this bulk pack ideal for OEMs, service teams, and maintenance operations.
Applications
-
High pressure hose reels
-
Industrial cleaning systems
-
OEM and service team supply
-
Chemical and fluid handling (with optional seal upgrades)
Features
-
Box includes 25 stainless steel swivels
-
Thread IN: 3/8” NPTF | Thread OUT: 3/8” NPTM
-
Robust stainless steel body for corrosion resistance and strength
-
Sliding bearing for smooth, stable operation
-
O-ring NBR seal with optional EPDM or FKM variants
-
Dimensions per unit: Overall Diameter – 1.26” | Overall Length – 2.17”
-
Nominal Width (NW): 3/8”
-
Rated for 5800 psi and 250°F max temperature
-
Max RPM: 30 — suitable for moderate-speed, high-pressure systems
Specs
Pressure: 5800 psi (40 MPa)
Temperature: 250°F
RPM: 30
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTM
Nominal Width (NW): 3/8"
Wrench Size (SW): 0.87
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 2.17
Length 3 (L3): 1.14
Length 4 (L4): 1.54
Diameter (D1): 1.26
Box: 25 pcs.
Weight: 8.7 oz
Showing 150/477
Cleaning News
Cleaning News
Cleaning News
