Mosmatic – LED-Control Box for Ceiling Boom with LED Lighting – 65.975

$362.52 USD $327.00 USD

Find out more about our returns policy or warranty policy.

Description

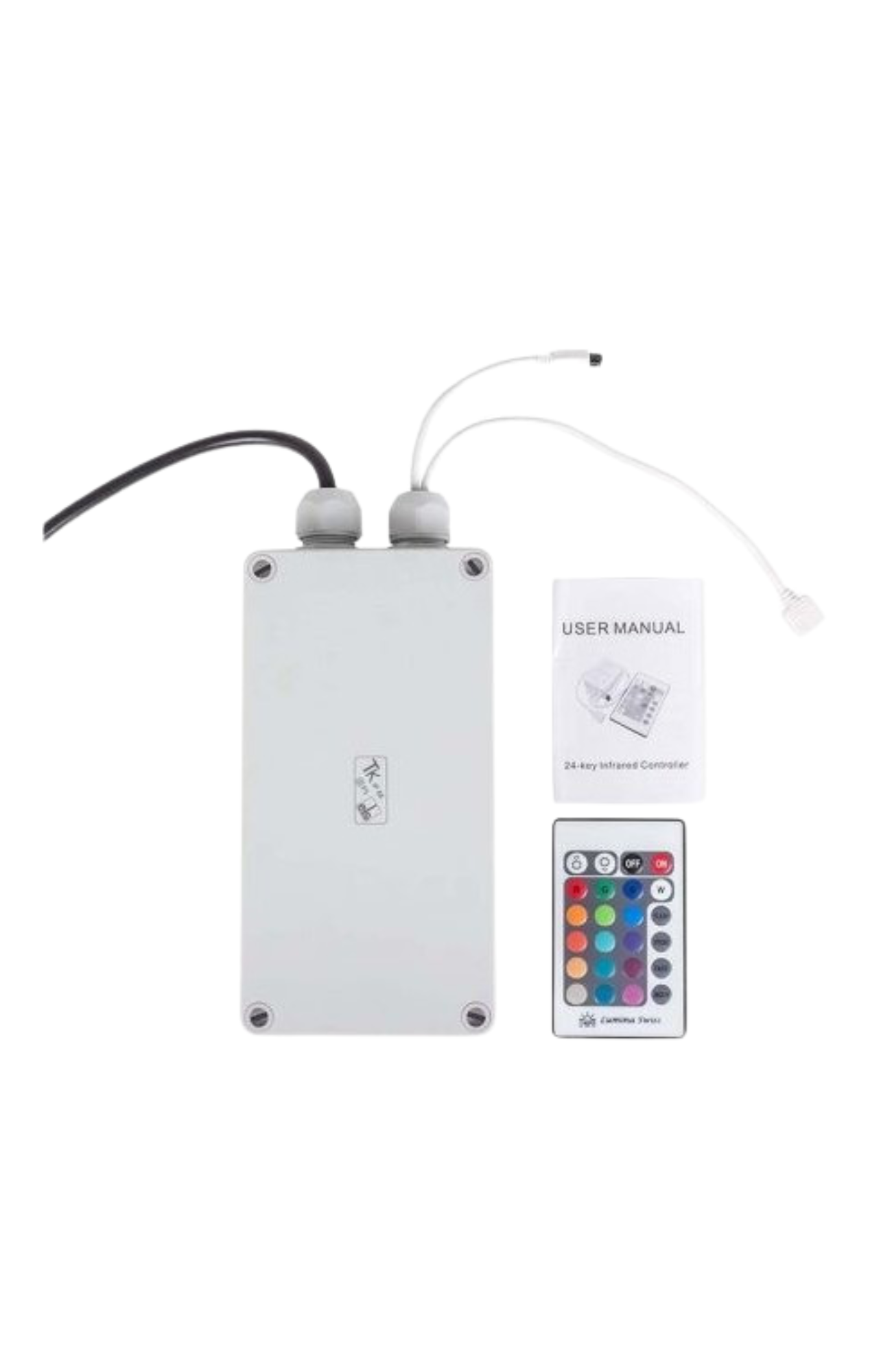

The Mosmatic 65.975 LED-Control Box is an advanced lighting control system designed to enhance the visual experience and functionality of ceiling boom setups in car wash bays. This system features integrated LED lighting to clearly visualize wash cycles, improve lighting conditions, and create modern visual effects that elevate the customer experience.

Designed for use with up to two ceiling booms, the package includes a controller, power supply, remote control, and a receiver with protective housing. With a durable IP66 rating and 24V operation, this unit is built to withstand demanding wash environments. Installation must be performed by a certified electrician.

Applications

  • Car wash bays and detailing centers

  • Ceiling boom systems with LED enhancement

  • Facilities seeking to visualize wash cycles and improve ambiance

  • Professional wash systems requiring illuminated guidance

Key Features

  • Includes: Controller, power supply, remote control, receiver with housing

  • Supports: Up to 2x ceiling booms

  • Pressure rating: 4000 PSI (27.5 MPa)

  • Temperature rating: 250°F

  • Thread Inlet/Outlet: 3/8" NPTF (top & side)

  • Operating voltage: 24V

  • Light output: 120 lx | 30 LEDs per 39"

  • IP Code: IP66 for water and dust protection

  • Media compatibility: Water, oil, air (pH 3–12)

  • Provides modern visual cues and additional lighting

  • Enhances aesthetic appeal and user experience

Mosmatic Legend

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread IN(top&side): 3/8" NPTF

Thread OUT: 3/8" NPTF

Operating voltage: 24v

Light intensity: 120 lx

Amount: 30 x LED/39"

IP Code: IP66

Throughput medium: water, oil, air at pH 3-12

Weight: 1.3 lbs

Energy Ring Connection of LED-control Box

Mosmatic Ceiling Boom Z Series Main Diagram

Mosmatic Legend
