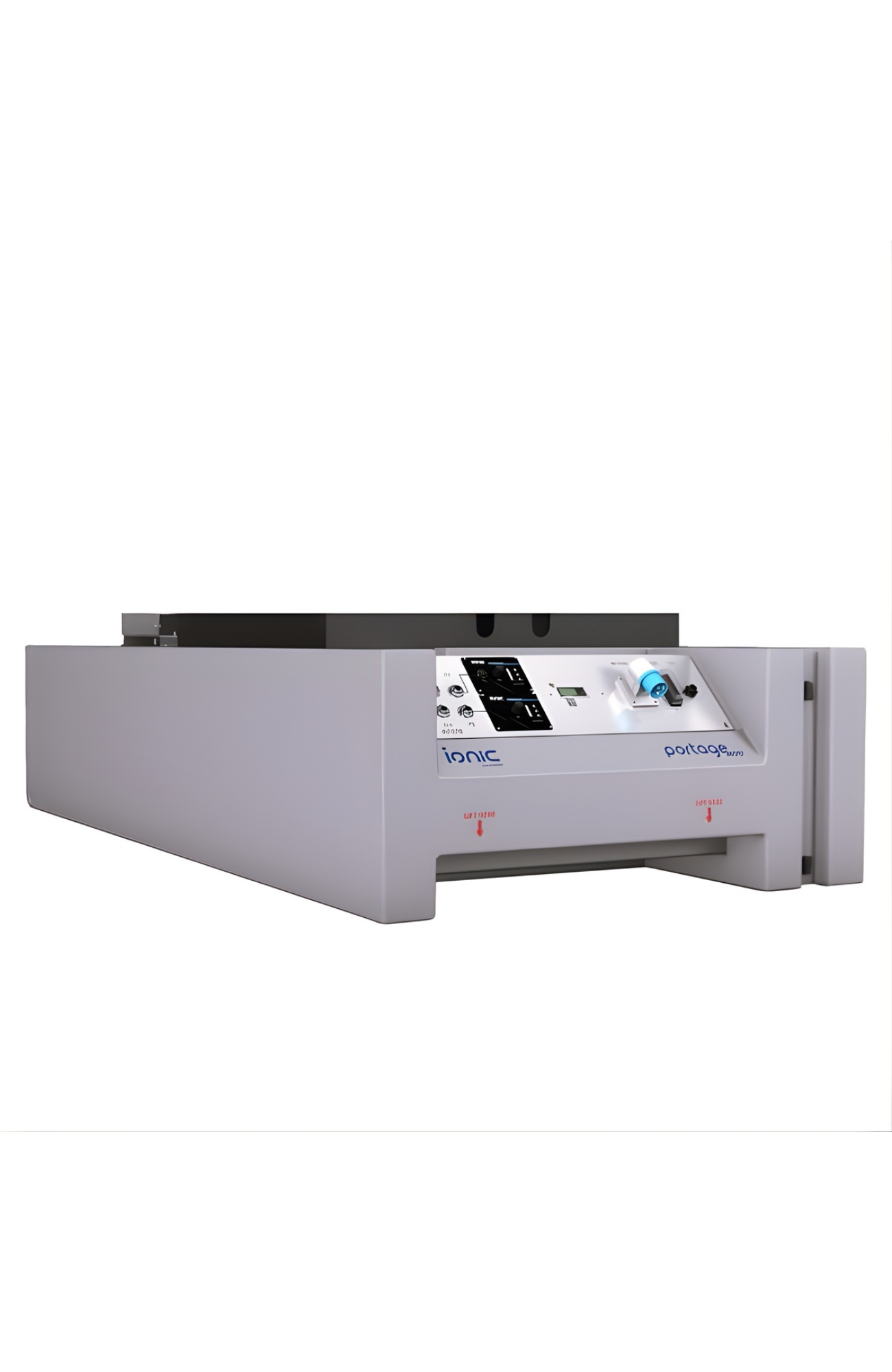

Ionic Systems Portage Fusion™️ Window Cleaning Pure Water Truck-Mount System

The Portage Fusion™ from Ionic Systems is the ultimate de-mountable pure water window cleaning system—designed for professionals who demand flexibility, performance, and safety. Easily slide the system in and out of your van or truck in minutes, giving you a fully functional work vehicle during the week and a personal one on weekends.

Efficient and Flexible Design

Available in 105-gallon (400L) and 211-gallon (800L) options, the Portage Fusion™ allows complete removal without tools—simply disconnect the battery quick connector, remove the mounting pin, and lift out the tank. Store it safely until your next job.

High-Performance Filtration

Engineered as a five-stage RO/DI system, the Fusion model includes Ionic’s advanced PFS™, ROMS™, and PDI™ technologies, producing up to 3 liters of ultra-pure water per minute (depending on supply pressure). It’s ideal for consistent, spotless window cleaning results on commercial and residential projects.

Smart, Ergonomic Construction

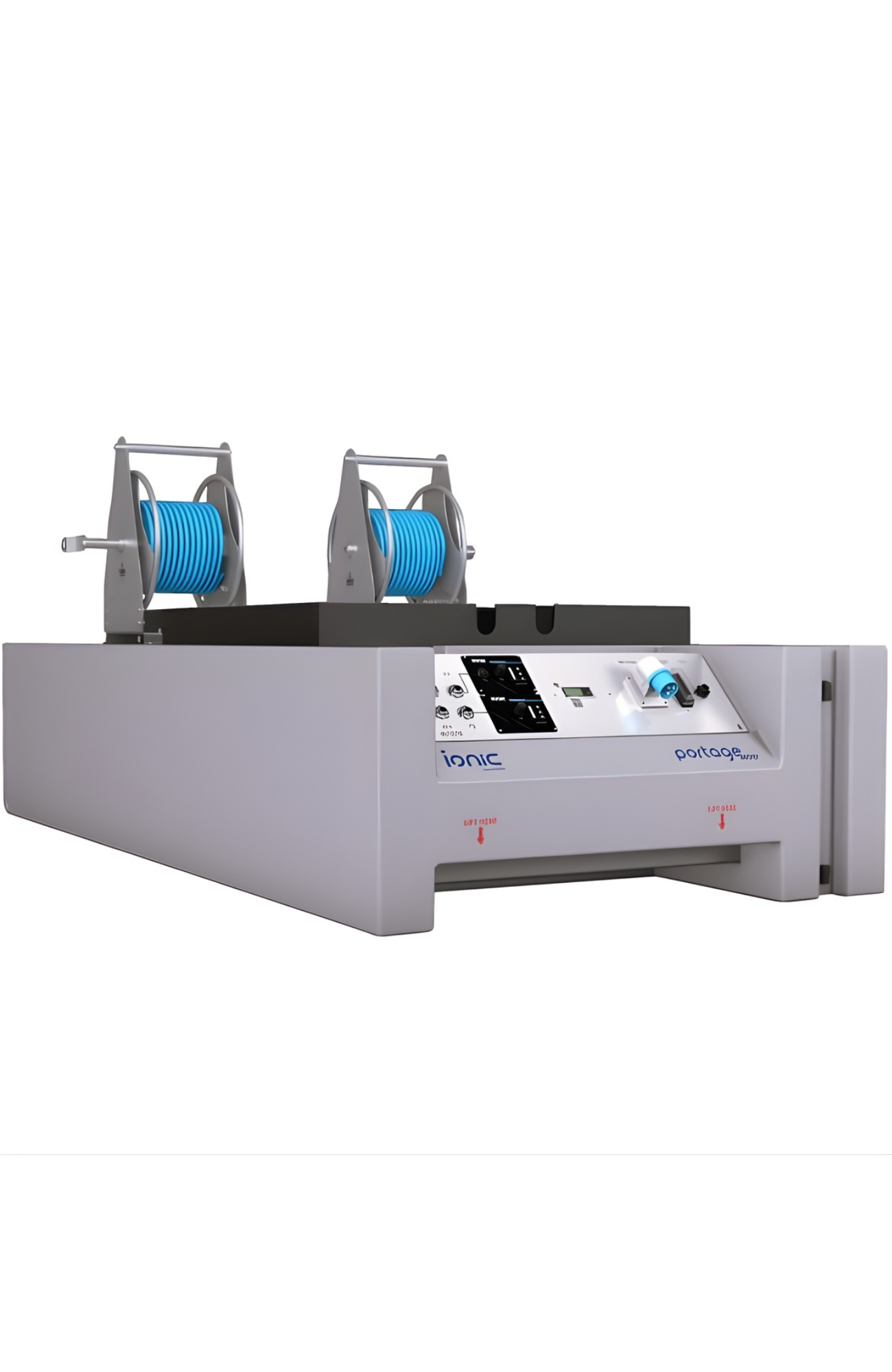

The Portage Fusion™ features an ergonomic layout for easy access to controls and filters, along with a convenient tool tray for poles and accessories. The 211-gallon model offers optional stainless steel hose reels accessible via side doors, ensuring efficient workflow on every job.

Engineered for Maximum Safety

Safety is built into every detail. Inspired by Ionic’s Thatcham crash test program, the Portage™ tank system incorporates FMVSS-208 compliant brackets and a design that minimizes forward tank movement in the event of a collision—protecting both the operator and vehicle occupants.

Simple Installation and Connectivity

Mounting in a Pickup Truck-

A fitting kit is not required for Portage™ tanks that are carried in pickup vehicles. It is however recommended that Portage™ tanks that completely fill the load space are selected. Although it is not a requirement, it is also recommended that Portage™ tanks are secured with ‘tie-down’ straps when transported in pickup type vehicles. If tie-down straps are not used then it is recommended to use wooden blocks to prevent lateral and front to back movement of the tank

Mounting in a Van or on a flatbed trailer-

It must be understood that in the event of a head-on collision an unsecured heavy load need only move the driver and passenger seats forward a small distance for the pre-tensioned seat belts to cause fatal compression injuries. For this reason a Portage™ fitting kit must be installed by a competent person in all vans even when a bulkhead is present. In the event of a head on collision the fitting kits resists the forward movement of the Portage™ tank. The fitting instructions must be followed in every detail.

12 Volt Connection-

Bearing in mind the demountable nature of the Portage™ tank system, the standard 12v connection is made by means of a quick connect fly-lead that plugs into the cigarette lighter. For more permanent installations are intended other more robust 12v power sources with split charging and quick connections are available as optional extras.

Professional-Grade Flexibility

Whether you’re operating a single van or managing a fleet, the Ionic Systems Portage Fusion™ delivers unmatched versatility, performance, and peace of mind. Contact your Clean Direct Representative to configure your system or request a custom quote.

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.

Standard Features for the Portage™️ Fusion System

Included as standard:

• Main Unit with Tank
• Twin 12v Delivery Pumps
• Pressure Gauge
• Dual TDS Meter
• Automatic Fill Shut Off (after cycle completes)
• Auto-Compensating Pump Flow Control
• 12" Carbon Filter
• 12" Sediment Filter
• 12" DI Filter
• 4029 RO Filter
• PDI™️
• PFS™️ (Perpetual Flushing System)
• ROMS™️ (Reverse Osmosis Maintenance System)
• Plastic Housings for Carbon, Sediment & DI Filters
• Stainless Steel Housing for RO Membrane

Optional:

• Fitting Kit for Portage Fusion Van/Trailer (FKPF-V)
• Cast Mounting Brackets (FMVSS-208)
• Mountable Steel Hose Reels*
• Ionic RX Hose (sold as one length 328 ft. / 100m) (suitable for hot water)
• Variable Pump Control
• Dual 360º Stainless Steel Hose Reels (P-SHR x 2)
• Split Charger
• Stainless Steel Tank (ask us for custom quote)

*SPECIAL NOTE ABOUT HOSE REEL MOUNTING

The 211 gallon (800L) size Portage is designed with a top cover (with storage compartments) and has enough room to mount two hose reels towards the back of the unit.

Because the 105 gallon (400L) size Portage is shorter it does not have the same room to accommodate the hose reels so we have designed an optional custom size cover that has the ability to mount hose reels. This is an optional item, sold separately. Please ask your Clean Direct Rep for details.

Optional for Hard Water Areas:

In-line water softeners are highly recommended for use in hard water areas. TDS readings over 200 would be considered hard water area.

Dimensions

105 Gallons (400 L) - Length = 4 ft 9 in, Width = 4 ft, Height = 1 ft 7 in

211 Gallons (800 L) - Length = 8 ft 2 in, Width = 4 ft, Height = 1 ft 7 in

Special Note

All Portage shipments require to be packed in a 6 sided crate for safe shipment from the UK manufacturing plant to our facility in NC. We do charge our actual cost for this crate to the customer as a separate line item. Please ask your Clean Direct Sales Rep to supply you a quote. Local pick up is also available but crate charge still applies.

Manual

Ionic Systems Portage User Manual for the full user guide and instructions.
