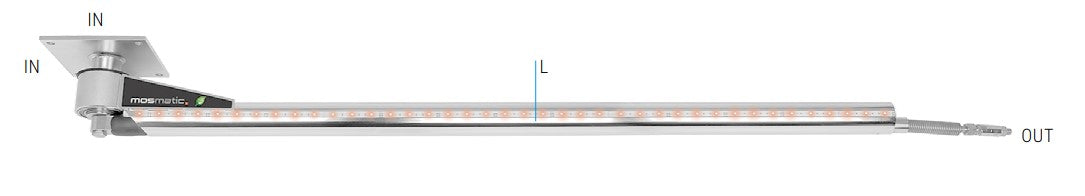

Mosmatic – Ceiling Boom with Led Lighting - DKPbI - 6ft 9in - 66.249

The Mosmatic Ceiling Boom with LED Lighting DKPbl (66.249) introduces a powerful blend of innovation and safety to self-service car wash bays. At 6 ft 9 in, this boom is equipped with synchronized LED lighting, designed to visually communicate each phase of the wash cycle—enhancing the customer experience while improving bay visibility and safety.

Engineered for tough conditions, the boom handles up to 4000 PSI and temperatures of 250°F. It features 3/8" NPTF inlets (top and side) and a 3/8" outlet, compatible with water, oil, and air across a pH range of 3–12. The LED system integrates 30 LEDs per 39 inches, producing 120 lx brightness in a rugged, IP66-rated waterproof enclosure, powered by 24V.

This eye-catching and eco-conscious ceiling boom elevates both functionality and appearance in modern wash bays. Installation must be completed by a certified electrician to ensure safety and optimal performance.

Applications

• Self-service car wash installations

• Wash bays with visual program indicators

• Enhanced lighting for customer safety

• High-performance, visually engaging wash upgrades

Key Features

• 6 ft 9 in LED-integrated ceiling boom

• 30x LEDs per 39" with 120 lx light output

• 24V operation with IP66 waterproof LED housing

• 3/8" NPTF inlets (top and side) and 3/8" outlet

• Supports 4000 PSI and 250°F operation

• Suitable for water, oil, and air (pH 3–12)

• Eco-friendly design with modern visual impact

• Installation by a certified electrician required

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Lenght: 6'9"

Throughput/medium: water, oil, air at pH 3-12

Operating voltage: 24V

Light intensity: 120 lx

Amount: 30 x LED/39"

IP Code: IP66

Weight: 23.8 lbs
