Mosmatic Ceiling Boom Z-Series DKZ 5ft 9in 66.029

Mosmatic Ceiling Boom Z-Series DKZ 5ft 5in 65.029

  • $1,148.27
Shipping calculated at checkout.

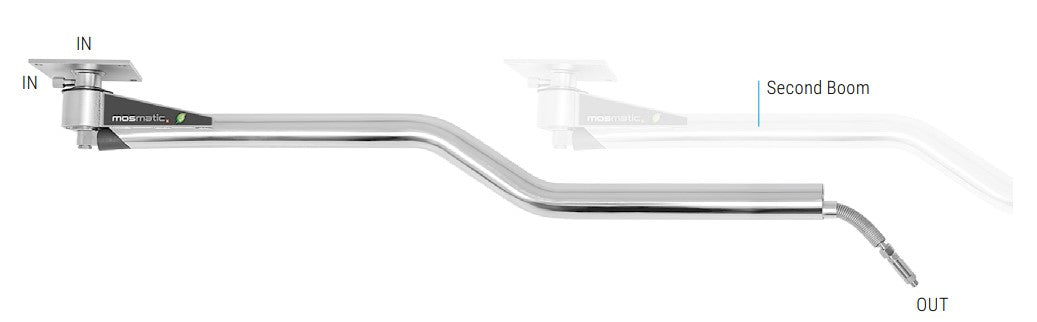

The ideal solution for self-service car washes. The unique shape of Mosmatic Z-boom allows the installation of multiple ceiling booms in a wash bay. This makes it possible to add additional services such as foam applications and Air Drying ceiling mount and increases your profits

  • 360° smooth rotation
  • Rated to 4000psi
  • Multiple booms with center rotation points
  • Polished stainless steel (INOX)
  • Clean and classic appearance

L 5'5", A 16', B 38" C 63" D 32", Weight 24 lbs

Part No. includes one ceiling boom

Technical data

  • Pressure: 4000 psi (27.5 MPa)
  • Temperature: 250°
  • Inlet (top & side): 3/8" NPTF (other options available)
  • Outlet: 3/8" NPTF (other options available)
  • Throughput medium: water, oil, air at pH 3-12

Mosmatic Ceiling Boom Z Series Main Diagram


Mosmatic Ceiling Boom Z Set Up Diagrams

Mosmatic Legend
