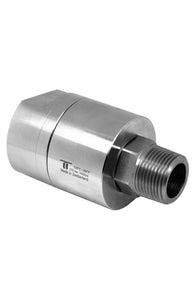

Mosmatic – DGE Swivel - 34.854 - G1 3/4"NPTF to G2 3/4"NPTM

Description

The Mosmatic DGE Swivel - 34.854 is a high-pressure, high-flow swivel designed for industrial and food service applications where both thrust and radial forces must be managed with precision. Constructed from nickel-plated brass with a stainless steel interior, this swivel offers excellent corrosion resistance and durability in demanding environments. It includes a quadruple bearing system featuring one thrust ball bearing for smooth, controlled rotation. Built for long-lasting performance, this swivel is ideal for high-pressure fluid transfer systems requiring strength, efficiency, and sanitation compliance.

Applications:

• Industrial high-pressure fluid and washdown systems

• Food and beverage processing equipment

• Chemical handling and sanitation systems

• Low-speed, high-pressure rotary unions

Key Features:

• Nickel-plated brass body with stainless steel internal components

• Quadruple bearing system with 1x thrust ball bearing

• Designed to withstand both thrust and radial forces

• High-flow capacity with low maintenance requirements

• Corrosion-resistant for industrial and sanitary use

• Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTM

• Nominal Width (NW): 3/4"

• Diameter: 1.97"

• Overall Length: 3.46"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 4000 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/4"NPTF

Thread Out: G2 3/4"NPTM

Nominal Width (NW): 3/4"

Wrench Size 1 (SW1): 1.06

Wrench Size 2 (SW2): 1.57

Diameter (D): 1.97"

Length 1 (L1) (overall length): 3.46"

Length 2 (L2): 2.38

Length 3 (L3): 0.63

Weight: 27.8oz
