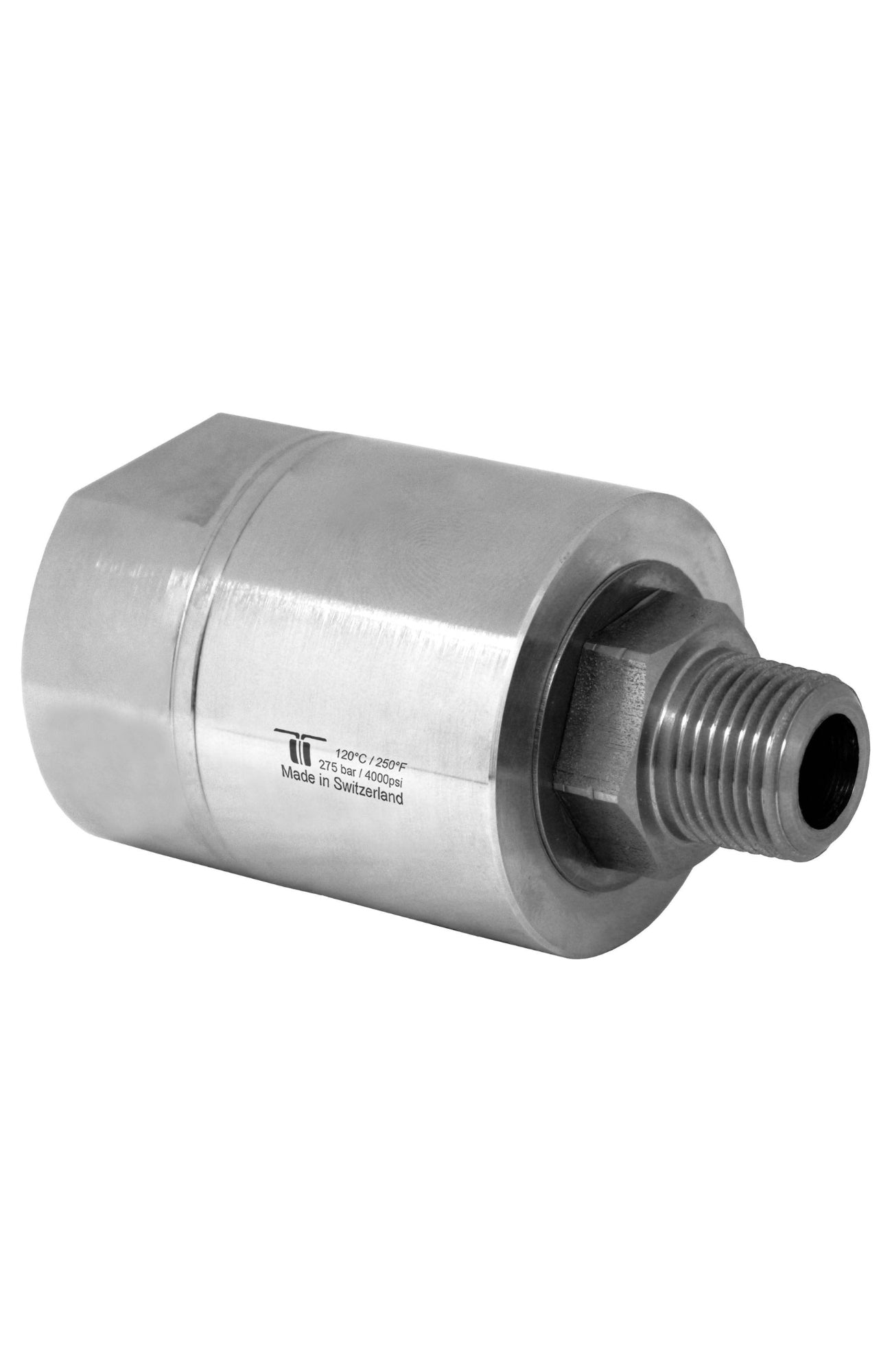

Mosmatic rotary unions DGE swivel G1 3/8"NPTF G2 3/8"NPTM NW 3/8in 34.852

Mosmatic rotary unions DGE swivel G1 3/8"NPTF G2 3/8"NPTM NW 3/8in 34.852

  • $131.98
  • Save $14.66
Shipping calculated at checkout.


High flow, low rpm, automatic car wash systems, high pressure hose reels

  • Maintenance free
  • Sealed stainless steel bearings
  • High flow

G1 (F) 3/8”NPTF, G2 (M) 3/8”NPTM, NW 3/8”, SW1 0.87, SW2 1.38, L1 2.87, L2 2.05, L3 0.43, D1 1.65, Weight 18.9 oz

Technical data

    • Pressure: 4000 psi (27.5 MPa)
    • Temperature: 250°F
    • RPM max. 30 rpm
    • Body:brass, nickel plated
    • Inner part: Stainless steel
    • Seal: O-ring NBR (optional: EPDM or FKM
    • Bearing: 1x thrust ball bearing, 1x radial ball bearing
    • Throughput: pH 3-12
    • Medium: filtered 10 microns, compressed air (290 psi)
