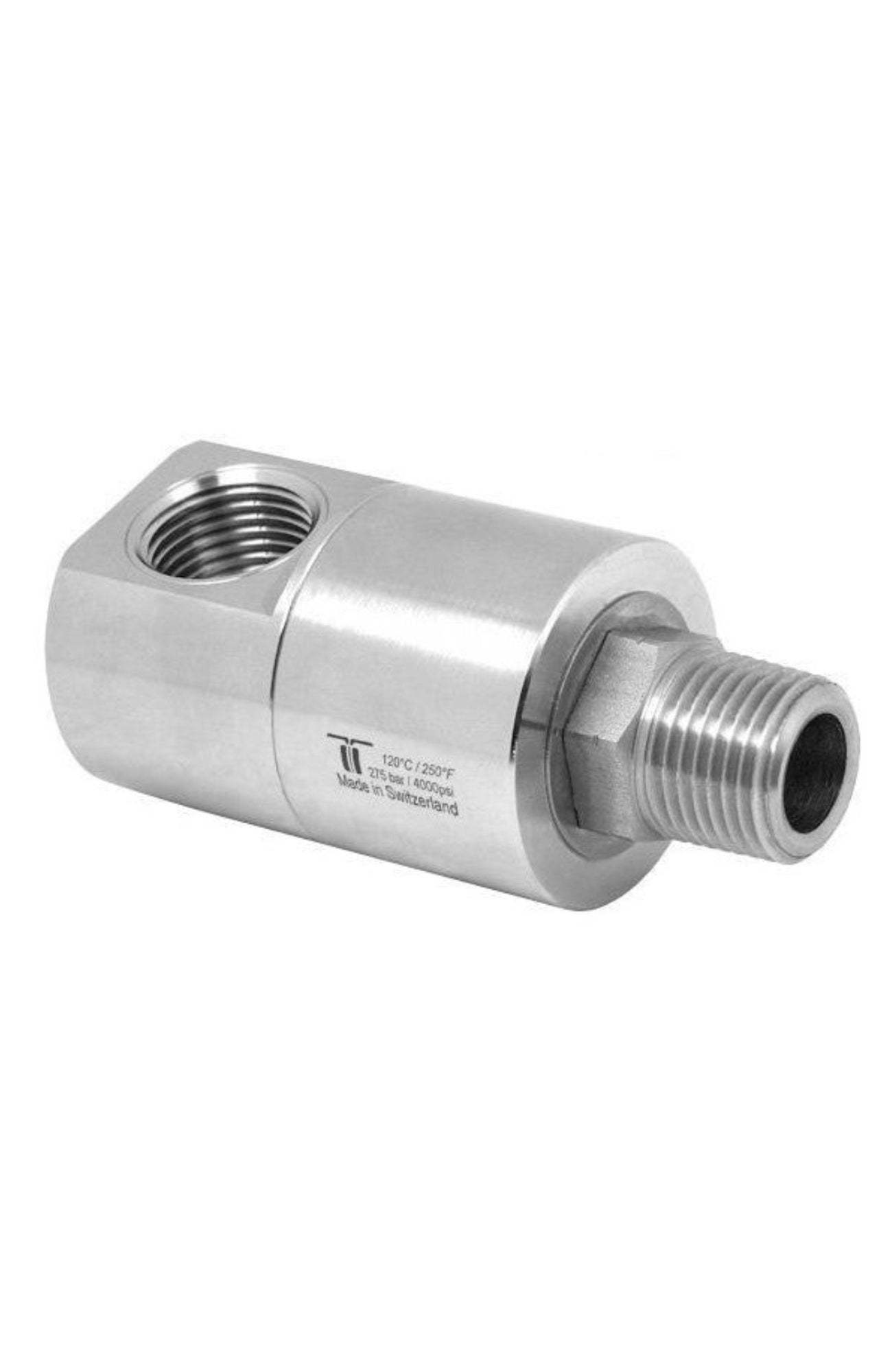

Mosmatic – DGEI 90 Degrees Swivel - 34.773 - G1 1/2"NPTF to G2 1/2"NPTM

The Mosmatic DGE Swivel - 34.773 is a high-performance stainless steel swivel engineered for high-pressure environments that require reliable operation under both thrust and radial loads. Featuring a robust bearing system—with 1x thrust ball bearing and 2x sliding bearings—this swivel ensures smooth, long-lasting performance in continuous-use applications. Rated for 5000 PSI and resistant to temperatures up to 250°F, it's an ideal choice for pharmaceutical, food service, automatic car wash, and industrial cleaning systems.

Applications:

• Clean-in-place (CIP) systems in pharmaceutical production

• Food and beverage sanitation and fluid handling

• Industrial pressure cleaning and washdown lines

• Rotary arms and sprayers in automatic car wash systems

Key Features:

• Corrosion-resistant stainless steel construction

• With 1x thrust ball bearing and 2 x sliding bearings

• Handles both thrust and radial forces

• High-flow performance with smooth rotation at low RPM

• Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTM

• Nominal Width (NW): 1/2"

• Diameter: 1.65"

• Overall Length: 3.82"

• Max Pressure: 5000 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Pressure: 5000 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Stainless Steel

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2"NPTF

Thread Out: G2 1/2"NPTM

Nominal Width (NW): 1/2"

Wrench Size (SW1): 0.87

Diameter 1 (D1): 1.65"

Diameter 2 (D2): 1.65

Length 1 (L1) (overall length): 3.82"

Length 2 (L2): 2.09

Length 3 (L3): 0.59

Length 4 (L4): 0.63

Length 5 (L5): 0.75

Weight: 23.2oz
