Mosmatic DGG Swivel 90 Degrees - 33.351 - G1 1/4"NPTF G2 1/4"NPTM

$205.00 USD $185.00 USD

Find out more about our returns policy or warranty policy.

Description

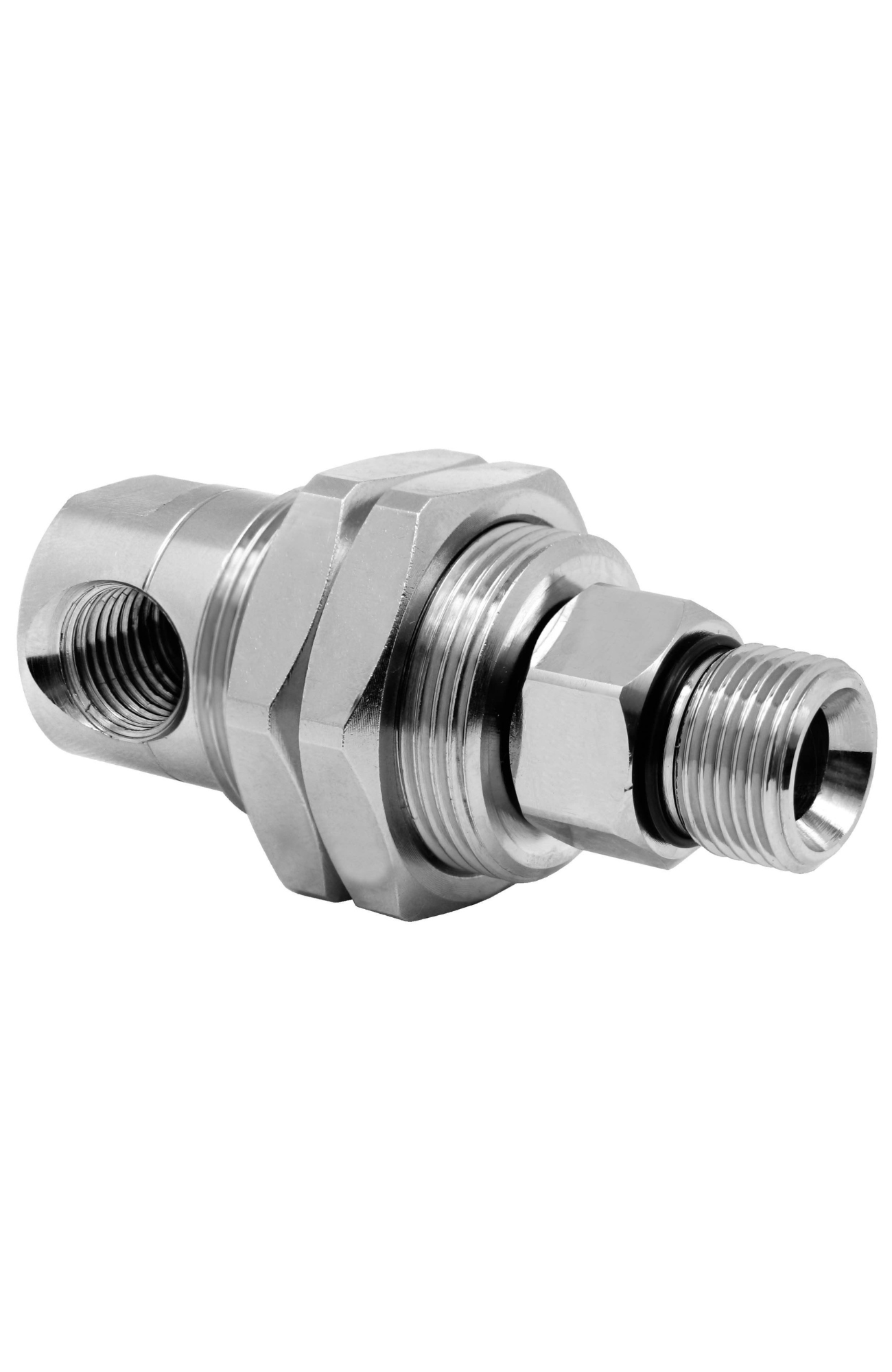

The Mosmatic DGG Swivel 33.351 (90 Degrees) is a high-precision, brass, nickel-plated swivel designed for high-pressure, self-rotating cleaning applications. Built to perform in demanding environments like tire washers, parts cleaning systems, and industrial surface cleaners, this swivel ensures longevity and efficiency.

Featuring a compact 90-degree angle design, it includes a triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, reliable operation. The swivel is sealed with a dependable O-ring NBR system, with optional upgrades to EPDM or FKM for chemical resistance. Designed for corrosion resistance, easy bulkhead mounting, and maintenance-free use, the 33.351 delivers long-term durability and exceptional precision.

Applications

  • High-pressure rotating cleaning systems

  • Tire and underbody cleaning equipment

  • Parts washers and degreasers

  • Industrial wash stations

  • Surface cleaners and sprayers

Key Features

  • Design: 90° angled swivel

  • Material: Brass, nickel plated

  • Seal System: O-ring NBR (optional EPDM or FKM)

  • Bearing Type: Triple bearing (2x radial, 1x thrust)

  • Thread IN (G1): 1/4” NPTF

  • Thread OUT (G2): 1/4” NPTM

  • Overall Diameter: 1.34”

  • Overall Length: 2.71”

  • Nominal Width (NW): 1/4”

  • Wrench Size (SW): 0.87”

  • Max Pressure: 4000 PSI

  • Max RPM: 1000

  • Max Temperature:

    • 90°F at 1000 RPM

    • 250°F at 30 RPM

  • Mounting Style: Bulkhead

  • Maintenance: Maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 1/4” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.67"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.71"

Length 2 (L2): 0.43"

Weight: 7.8 oz

Mosmatic Ceiling Boom Z Series Main Diagram

Mosmatic Legend
