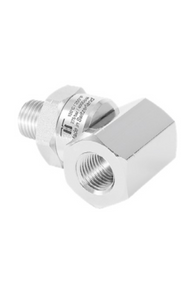

Mosmatic Swivel DGK - 32.543 90°

Mosmatic DGK Swivel - 90 Degrees - 32.549 - G1 3/8"NPTM G2 3/8"NPTF

  • $60.00
  • Save $6
Shipping calculated at checkout.

+ -
 More payment options

Description

The Mosmatic DGK Swivel 32.549 – 90 Degrees is designed for high-performance pressure cleaning, hydraulic systems, and hose connections. Built with a durable stainless steel/brass body and nickel-plated finish, this swivel delivers exceptional corrosion resistance and longevity in industrial environments.

Featuring a thrust ball bearing and a reliable O-ring NBR seal system (optional EPDM or FKM), this swivel supports live rotation under full pressure with minimal torque. Its 90-degree compact design ensures easy integration into tight setups while keeping hoses tangle-free.

Applications

  • High-pressure spray guns

  • Hydraulic hose assemblies

  • Wash bays and ceiling booms

  • Tangle-free hose connection systems

  • Industrial pressure cleaning tools

Features

  • Material: Stainless steel/brass with nickel plating

  • Thread IN (G1): 3/8" NPTM

  • Thread OUT (G2): 3/8" NPTF

  • Overall Length: 1.06"

  • Nominal Width (NW): 1/4"

  • Wrench Size (SW): 0.94"

  • Maximum Pressure: 4000 PSI

  • Maximum RPM: 30

  • Max Temperature: 250°F

  • Seal System: O-ring NBR (EPDM or FKM optional)

  • Bearing System: 1x thrust ball bearing

  • Design: 90° swivel for optimized directional flow

  • Performance: Maintenance free, low torque, high durability

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

Thread Out: G2 3/8" NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 1.06"

Lenght 2 (L2): 0.39"

Weight: 5.8 oz
