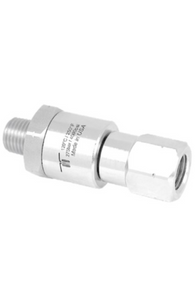

Mosmatic DGV Swivel - 32.864 - G1 1/2"NPTM G2 1/2"NPTF

The Mosmatic DGV Swivel 32.864 is a high-quality brass, nickel-plated swivel engineered for high-pressure guns, hose connections, and hydraulic applications requiring smooth, tangle-free operation. Designed for live rotation at maximum pressure, this swivel features a thrust ball bearing and a reliable O-ring NBR seal system, with optional EBDM or FKM material upgrades. Its corrosion-resistant construction, compact size, and maintenance-free performance make it ideal for heavy-duty industrial and commercial use.

Applications

• High-pressure spray guns

• Hydraulic hose connections

• High-pressure hose reels

• Tangle-free cleaning systems

• Industrial fluid transfer

Features

• Material: Brass, nickel plated

• Thread IN (G1): 1/2” NPTM

• Thread OUT (G2): 1/2” NPTF

• Overall Length: 3.01”

• Nominal Width (NW): 3/8”

• Wrench Size (SW): 1.06”

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Seal: O-ring NBR (optional: EBDM or FKM)

• Bearing: 1x thrust ball bearing

• Design: Compact, corrosion-resistant, and maintenance free

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTM

Thread Out: G2 1/2" NPTF

Nominal Width (NW): 3/8”

Wrench Size 1 (SW1): 1.06"

Wrench Size 2 (SW2): 1.06"

Length 1 (L1) (overall length) : 3.03"

Lenght 2 (L2): 0.59"

Weight: 8.7 oz
