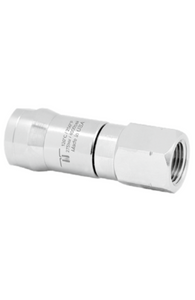

Mosmatic rotary unions DGVI swivel G1 3/8"NPTF G2 3/8"NPTF NW 3/8in 30.654

Mosmatic rotary unions DGS swivel G1 3/8"NPTF G2 3/8"NPTF NW 3/8in 30.654

  • $96.28
  • Save $10.69
Shipping calculated at checkout.


High and low pressure cleaning, hose connections, ceiling booms

  • Very Low torque
  • Sealed stainless steel bearings
  • Maintenance free
  • Easy rotation at maximum pressure

G1 (F) 3/8”NPTF, G2 (F) 3/8”NPTF, NW 3/8”, SW1 0.87, SW2 0.87, L1 2.71, D1 0.98, Weight 6.0oz

Technical data

    • Pressure: 4000 psi (27.5 MPa)
    • Temperature: 250°F
    • RPM max. 30 rpm
    • Body:brass, nickel plated
    • Inner part: Stainless steel
    • Seal: O-ring NBR (optional: EPDM or FKM
    • Bearing: 1x thrust ball bearing, 1x radial ball bearing
    • Throughput: pH 3-12
    • Medium: filtered 10 microns, compressed air (290 psi)

Mosmatic Ceiling Boom Z Series Main Diagram



Mosmatic Legend
