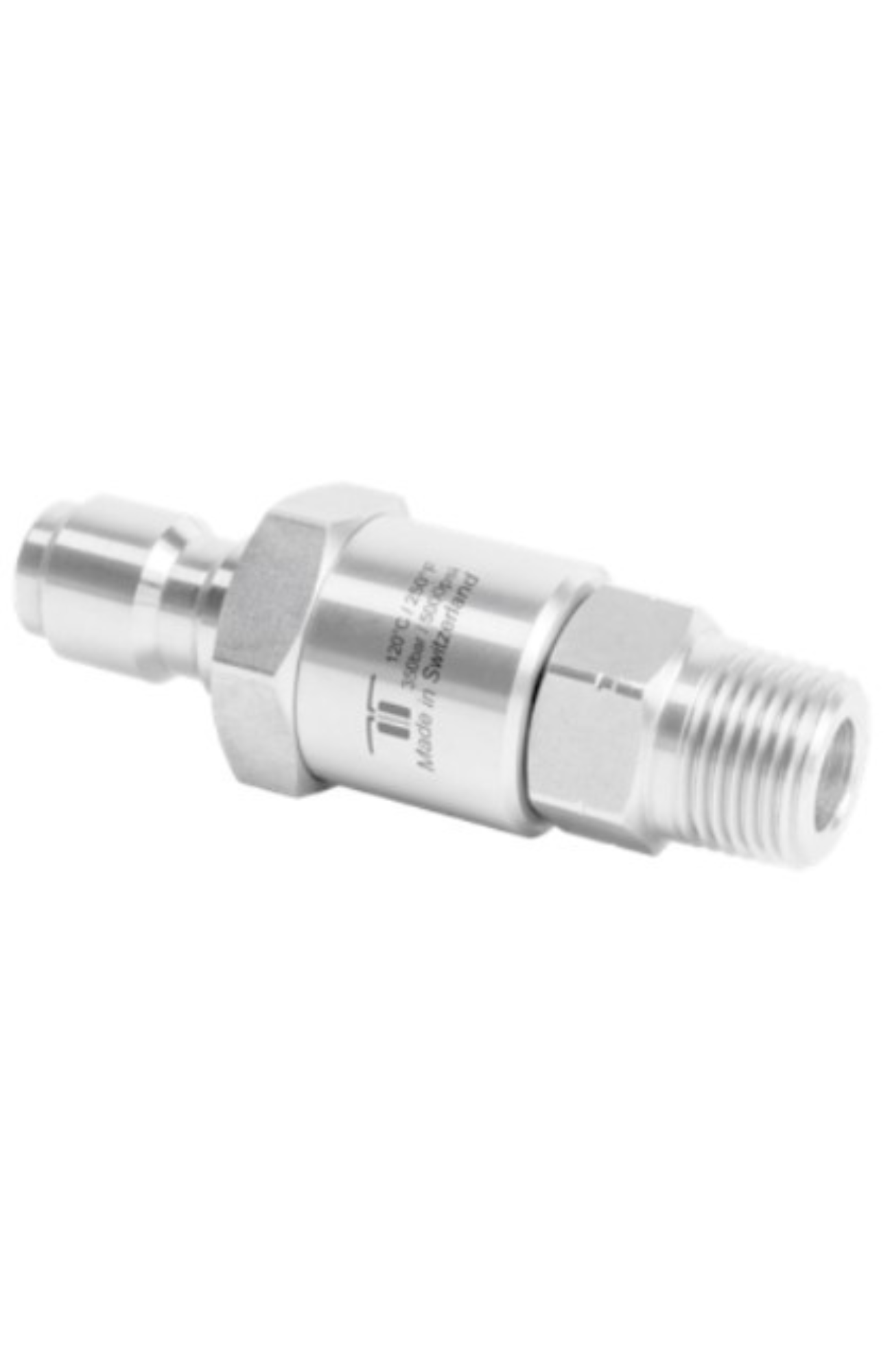

Mosmatic DGVI Swivel w/ Quick Connect Plug - 32.778 - G1 3/8"NPTM

Description

The Mosmatic DGVI Swivel 32.778 is a durable, stainless steel swivel engineered for high-pressure hose reels, HP-Guns, and hydraulic systems. With a robust 3/8” NPTM inlet, this swivel ensures live rotation under full system pressure, helping to prevent hose tangling and improve workflow efficiency.

Designed for reliability and performance in demanding environments, it features a single thrust ball bearing, corrosion-resistant stainless steel housing, and a maintenance-free O-ring NBR seal system—with optional EPDM or FKM seals available for compatibility with specific applications.

Applications

• High-pressure hose reels

• Hydraulic and pneumatic systems

• HP-Guns and industrial sprayers

• Tangle-free hose connections

• Commercial cleaning systems

Features

• Material: Full stainless steel construction

• Thread IN (G1): 3/8” NPTM

• Overall Length: 2.90”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.94”

• Max Pressure: 5000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearing System: 1x thrust ball bearing

• Seal System: O-ring NBR (optional EPDM or FKM)

• Design: Compact, corrosion resistant, maintenance free

Specs

Pressure: 5000 psi (35 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

D (Diameter): ø0.60"

Thread In: G1 3/8" NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.90"

Lenght 2 (L2): 0.47"

Weight: 5.1 oz
