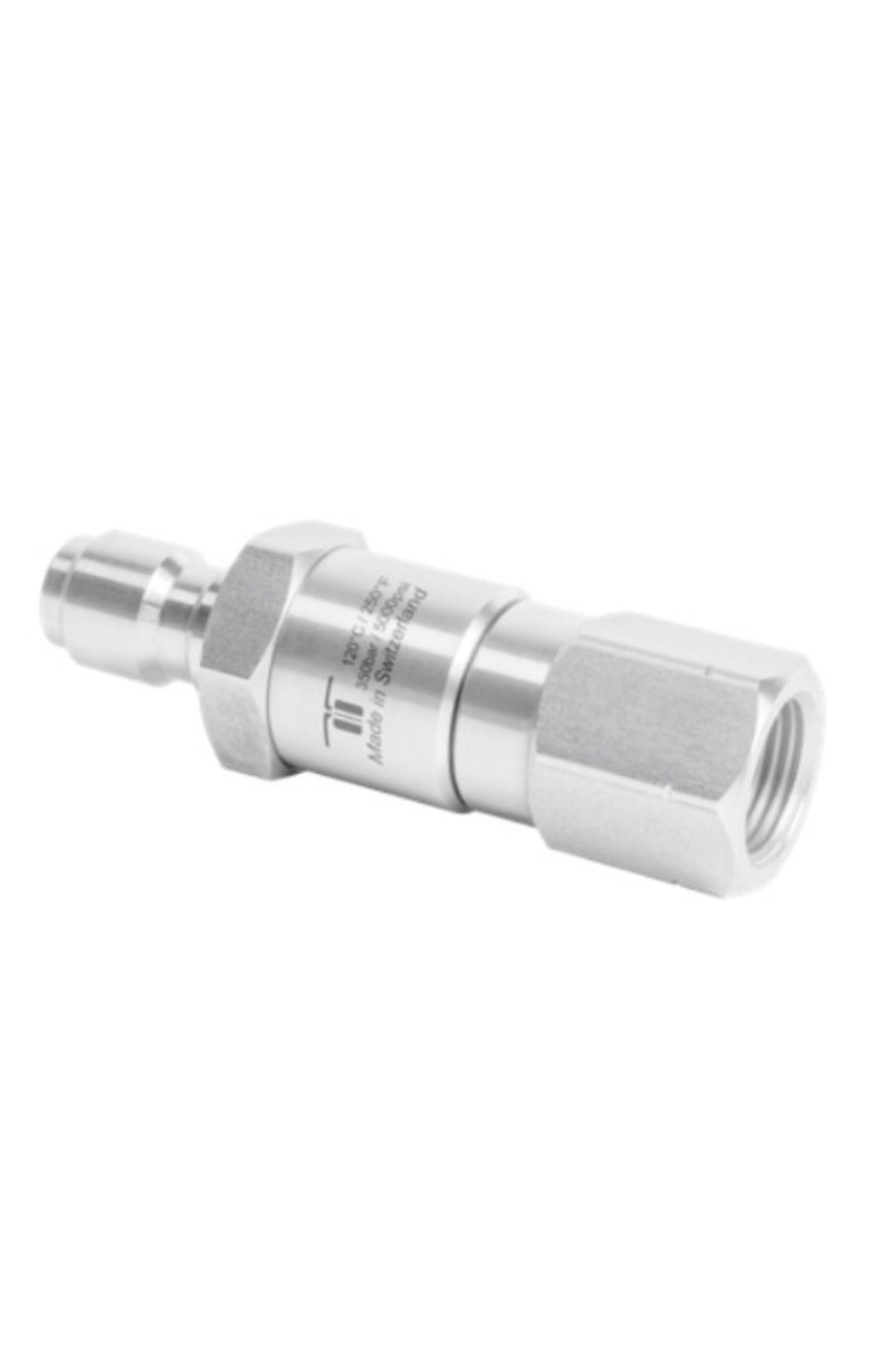

Mosmatic DGVI Swivel w/ Quick Connect Plug - 32.779 - G1 3/8"NPTF

The Mosmatic DGVI Swivel 32.779 is designed for high-performance applications in high-pressure hose reels, hydraulic systems, and HP-Guns. Built from stainless steel, it delivers maximum durability, live rotation under pressure, and seamless integration in dynamic environments.

Equipped with a single thrust ball bearing and O-ring NBR seal system (optional EPDM or FKM), this swivel is maintenance-free, corrosion-resistant, and engineered to maintain pressure without binding—ensuring a tangle-free, smooth user experience.

Applications

• High-pressure hose reels

• Hydraulic connections

• High-performance HP-Guns

• Tangle-free cleaning equipment

• Industrial fluid transfer systems

Features

• Material: Full stainless steel construction

• Thread IN (G1): 3/8” NPTF

• Overall Length: 3.20”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.94”

• Max Pressure: 5000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearing System: 1x thrust ball bearing

• Seal System: O-ring NBR (optional EPDM or FKM)

• Design: Compact, corrosion-resistant, and maintenance-free

Pressure: 5000 psi (35 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

D (Diameter): ø0.60

Thread In: G1 3/8" NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.87"

Length 1 (L1) (overall length) : 3.20"

Weight: 6.2 oz
