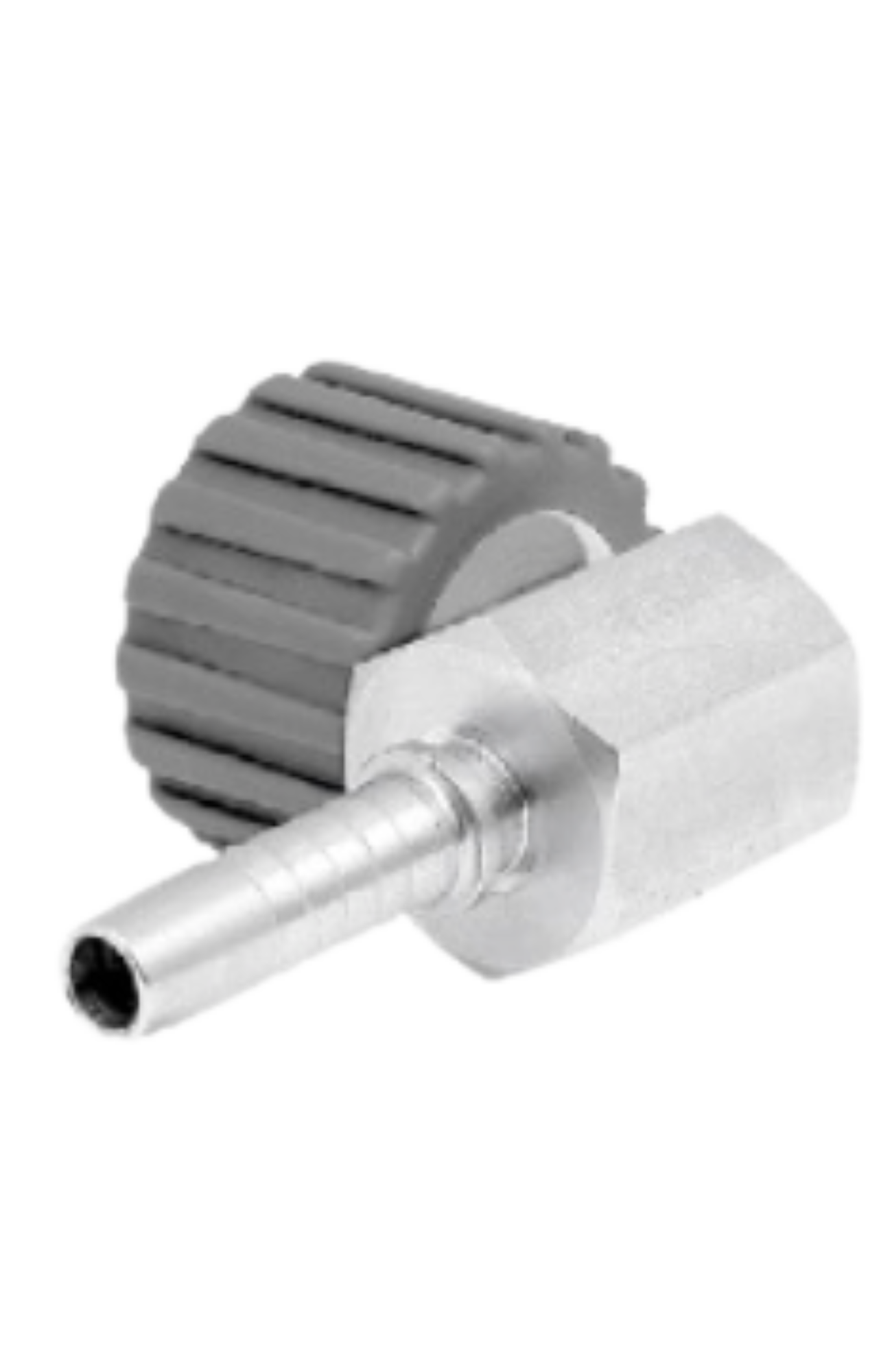

Mosmatic DKS 90° Swivel - 70.582 - G1 M22X1.5F

The Mosmatic DKS 90° Swivel Coupling 70.582 is a high-quality, right-angle swivel designed for high-pressure cleaning, hose connections, and quick coupling applications where space-saving flexibility is essential. Constructed from nickel-plated brass, this swivel offers exceptional durability, corrosion resistance, and reliable performance in industrial and commercial environments.

This 90-degree swivel features a single thrust ball bearing for smooth rotational movement and an advanced ceramic seal system to ensure long-lasting, leak-free operation. Its flanged design allows for easy and secure installation, while integrated weep holes provide early visual indication of seal failure, promoting proactive maintenance.

The 70.582 model is equipped with a Quick Connect Thread In of M22x1.5F, a nominal width (NW) of 7/32”, and supports high-pressure systems up to 3600 PSI. It operates effectively at a maximum temperature of 250°F and a rotational speed of up to 30 RPM. Compatible with a range of media, including pH 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

• High-pressure hose connections in tight or angled spaces

• Industrial and commercial cleaning systems

• Quick-connect pressure washer fittings

• Rotary surface cleaners and spray tools

• Pneumatic and compressed air tool systems

• Car wash installations and detailing setups

Features

• Durable nickel-plated brass construction for corrosion resistance

• 90° swivel design for optimal flexibility in limited spaces

• Smooth rotation with single thrust ball bearing

• Long-lasting ceramic seal system for leak protection

• Flanged design for easy and secure installation

• Seal failure warning through integrated weep holes

• Thread In: M22x1.5F

• Nominal Width (NW): 7/32”

• Max Pressure: 3600 PSI

• Max Temperature: 250°F

• Max RPM: 30

• Overall Diameter: 1.34” | Overall Length: 1.97”

• Suitable for pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Pressure: 3600 psi

Temperature: 250°

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 M22X1.5F

Nominal Width (NW): 7/32”

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 1.97

Weight: 5.7 oz
