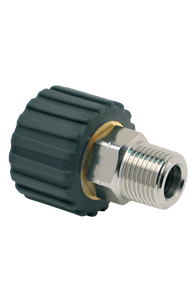

Mosmatic DKS Swivel - 70.051 - G1 M21X1.5F to G2 1/4"NPTM

$57.24 USD $52.00 USD

Find out more about our returns policy or warranty policy.

Description

The Mosmatic DKS Swivel Coupling 70.051 is a high-performance, nickel-plated brass swivel designed for high-pressure cleaning and hose connection systems. Engineered with a single thrust ball bearing and a precision ceramic seal system, it ensures smooth rotation and leak-resistant operation. A built-in flange allows for easy installation, while integrated weep holes provide early warning of seal failure to prevent downtime.

With a high-pressure capacity of up to 3600 PSI and a max temperature tolerance of 250°F, this swivel coupling is built to withstand rigorous industrial use. It features a quick-connect M21x1.5 F thread in and a ¼” NPTM thread out, offering compatibility across a range of applications. Supporting a nominal width of ¼”, and a max speed of 30 RPM, it’s optimized for pH 3–12 media and 10-micron filtered compressed air up to 290 PSI.

Applications

  • High-pressure cleaning equipment

  • Industrial hose connections

  • Quick-connect systems

  • Surface cleaners and rotary arms

  • Car wash systems

  • Pneumatic tool connections

Features

  • Durable nickel-plated brass construction

  • Single thrust ball bearing for smooth rotation

  • Advanced ceramic seal system for enhanced durability

  • Integrated flange for easy installation

  • Seal failure indicator via weep holes

  • Thread In: M21x1.5 F | Thread Out: ¼” NPTM

  • Nominal Width (NW): ¼”

  • Max Pressure: 3600 PSI

  • Max Temperature: 250°F

  • Max RPM: 30

  • Overall Diameter: 1.34” | Length: 1.76”

  • Media compatibility: pH 3–12, 10-micron filtered air up to 290 PSI

Specs

Pressure: 3600 psi

Temperature: 250°

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 M21X1.5F

Thread Out: G2 1/4"NPTM

Nominal Width (NW): ¼”

Wrench Size 1 (SW1): 0.67"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 1.76

Length 2 (L2): 0.43

Weight: 3.6 oz



Mosmatic Ceiling Boom Z Series Main Diagram
