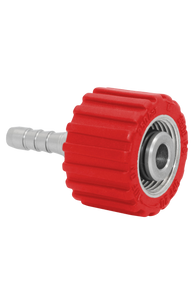

Mosmatic DKS Swivel - 70.132 - G1 M22X1.5F

$50.00 USD $45.00 USD

Find out more about our returns policy or warranty policy.

Description

The Mosmatic DKS Swivel Coupling 70.132 is a precision-engineered, high-pressure swivel coupling designed for hose connections, cleaning systems, and quick coupling applications. Manufactured from nickel-plated brass, this swivel provides superior corrosion resistance and long-lasting performance in industrial and commercial environments.

The unit features a single thrust ball bearing and an advanced ceramic seal system, ensuring smooth rotation and effective sealing even under high-pressure conditions. The integrated flange offers easy, secure installation, while built-in weep holes serve as an early warning system for seal failure, helping to maintain operational efficiency.

This model includes a Quick Connect Thread In of M22x1.5F, with a nominal width (NW) of 7/32”, an overall diameter of 1.34”, and a length of 2.34”. Rated for up to 3600 PSI, with a maximum temperature of 250°F and a maximum speed of 30 RPM, the DKS 70.132 is suitable for media within a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

  • Industrial high-pressure cleaning systems

  • Hose connection assemblies and quick coupling setups

  • Surface cleaners and rotating spray tools

  • Car wash systems and detailing equipment

  • Pneumatic tool connections and compressed air lines

  • Pressure washing accessories in commercial environments

Features

  • Heavy-duty nickel-plated brass construction for corrosion resistance

  • Long-life ceramic seal system for reliable sealing performance

  • Smooth rotation with single thrust ball bearing

  • Easy, stable installation with integrated flange design

  • Seal failure warning through weep holes for proactive maintenance

  • Thread In: M22x1.5F

  • Nominal Width (NW): 7/32”

  • Max Pressure: 3600 PSI

  • Max Temperature: 250°F

  • Max RPM: 30

  • Overall Diameter: 1.34” | Overall Length: 2.34”

  • Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3600 psi

Temperature: 250°

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 M22X1.5F

Nominal Width (NW): 7/32”

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.34

Weight: 3.0 oz

Mosmatic Ceiling Boom Z Series Main Diagram
