Mosmatic DKS Swivel - 70.054 - G1 M21X1.5F to G2 3/8"NPTF

Mosmatic DKS Swivel - 70.154 - G1 M22X1.5F to G2 3/8"NPTF

  • $49.00
  • Save $5
Shipping calculated at checkout.

+ -
 More payment options

Description

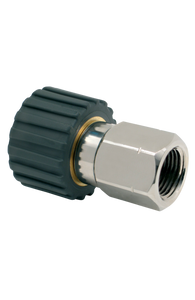

The Mosmatic DKS Swivel Coupling 70.154 is a high-performance swivel engineered for high-pressure cleaning, hose assemblies, and quick coupling systems. Built from durable nickel-plated brass, this swivel coupling is corrosion-resistant and designed for long-term reliability in heavy-duty industrial and commercial applications.

Equipped with a single thrust ball bearing and an advanced ceramic seal system, it ensures smooth rotation and a dependable seal under high pressure. The flange design enables simple, stable installation, while integrated weep holes act as a visual alert in case of seal failure, supporting preventive maintenance.

This model features a Quick Connect Thread In of M22x1.5 F and a Thread Out of 3/8” NPTF. It offers a nominal width of ¼”, supports up to 3600 PSI, and operates effectively at temperatures up to 250°F and speeds up to 30 RPM. Compatible with a variety of media, it handles pH levels from 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

  • High-pressure cleaning and spraying equipment

  • Industrial hose connection systems

  • Surface cleaners and rotary spray tools

  • Car wash and auto detailing systems

  • Quick-connect hose assemblies

  • Pneumatic and air-driven tool applications

Features

  • Nickel-plated brass body for superior durability

  • Long-life ceramic seal system for leak resistance

  • Smooth rotation with single thrust ball bearing

  • Flange for secure and simple installation

  • Seal failure warning via integrated weep holes

  • Thread In: M22x1.5 F | Thread Out: 3/8” NPTF

  • Nominal Width (NW): ¼”

  • Max Pressure: 3600 PSI

  • Max Temperature: 250°F

  • Max RPM: 30

  • Overall Diameter: 1.34” | Overall Length: 2.08”

  • Media compatibility: pH 3–12, 10-micron filtered air (290 PSI)

Specs

Pressure: 3600 psi

Temperature: 250°

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 M22X1.5F

Thread Out: G2 3/8"NPTF

Nominal Width (NW): ¼”

Wrench Size 1 (SW1): 0.87"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.08

Length 2 (L2):

Weight: 3.7 oz
