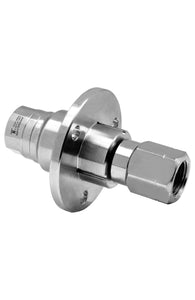

Mosmatic – DXF Swivel - 38.054 - G1 1/4"NPTF to G2 3/8"NPTF

The Mosmatic DXF Swivel - 38.054 is a high-performance stainless steel swivel built for high-RPM and high-pressure cleaning applications. Engineered for durability and precision, this swivel is ideal for self-rotating tools, surface cleaners, tire washers, and parts washers. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth and efficient rotation. The advanced ceramic seal system offers long-lasting leak protection, while built-in weep holes provide early warning in case of seal failure. A flange mount ensures easy and secure installation in a wide range of cleaning systems.

Applications:

• High-RPM self-rotating cleaning equipment

• Surface cleaners for industrial and commercial use

• Tire and wheel washing stations

• Parts washers and degreasing tools

Key Features:

• Corrosion-resistant stainless steel construction

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Long-life ceramic seal system for high-performance sealing

• Integrated weep holes for seal failure detection

• Flange mount for quick and secure installation

• Thread IN: 1/4" NPTF | Thread OUT: 3/8" NPTF

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.76"

• Max Pressure: 2500 PSI

• Max RPM: 2000

• Operating Temperature: 40°F to 250°F

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 3/8"NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.87

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.76"

Weight: 10.4oz
