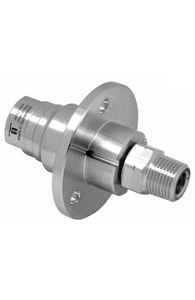

Mosmatic rotary unions DXFS steam swivel G1 1/4"NPTF G2 3/8"NPTM 38.093

Mosmatic rotary unions DXFS steam swivel G1 1/4"NPTF G2 3/8"NPTM 38.093

  • $225.23
  • Save $25.03
Shipping calculated at checkout.


Steam cleaner, self rotating applications

    • For Steam
    • High speed, triple bearing systems
    • Flange for easy installation
    • Seal Failure warming through weep holes

    G1 1/4”NPTF, G2 3/8”NPTM, NW 1/4”, SW1 0.87, SW2 0.75, L1 1.50, L2 0.47, Weight 13.9 oz

    Technical data

          • Pressure: 300 psi(2 MPa)
          • Temperature: 350°F(max. 1’000 rpm)
          • RPM: max. 2’000 rpm)
          • Body: brass, nickel plated
          • Inner part: Stainless steel
          • Seal: ceramic
          • Bearing: 2x radial ball bearings, 1x thrust ball bearing
          • Throughput: Steam
          • Medium: pH 3-12
