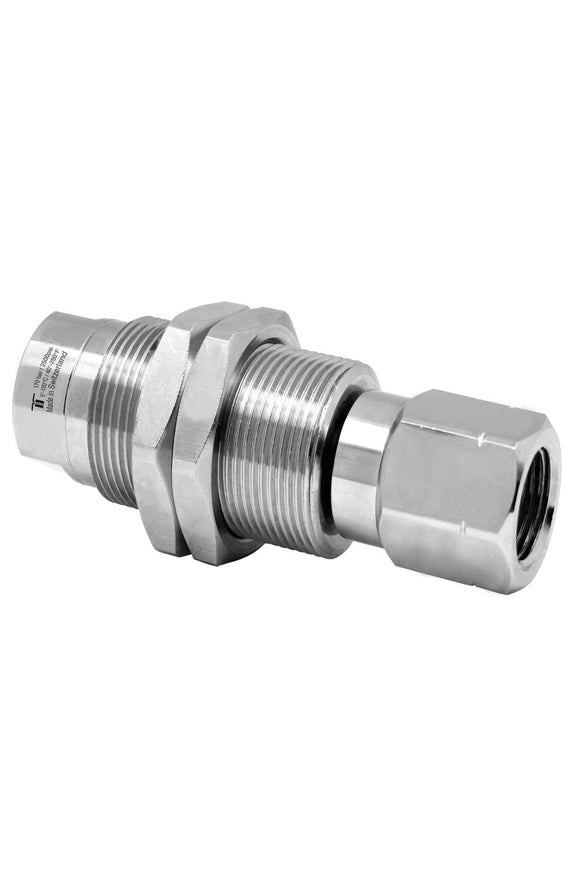

Mosmatic rotary unions DXG swivel G1 3/8"NPTF G2 3/8"NPTF 37.154

Mosmatic rotary unions DXG swivel G1 3/8"NPTF G2 3/8"NPTF 37.154

  • $177.42
  • Save $19.72
Shipping calculated at checkout.


Surface cleaners, parts washers, tire cleaners, high rpm, self rotating applications

    • High speed, triple bearing systems
    • Bulkhead fitting for mounting
    • Corrosion resistant
    • Highest quality and precision
    • Maintenance free

    The DXG swivel comes in two versions. The DXG is nickel-plated brass and the DXGI is all stainless steel. The DXGI version is part number 37.159

    Technical data

          • Pressure: 2500 psi(17 MPa)
          • Temperature: 40°F-250 °F
          • RPM: max. 2’000 rpm
          • Body:
            • DXG: brass, nickel plated
            • DXGI: stainless steel
          • Seal: ceramic
          • Bearing: 2x radial ball bearings, 1x thrust ball bearing
          • Throughput: pH 3-12
          • Medium: filtered 10 microns, compressed air (290 psi)

    G1 3/8”NPTF, G2 3/8”NPTF, NW 1/4”, SW1 0.87, SW2 0.87, SW3 1.34, L1 3.42, Weight 7.5oz
