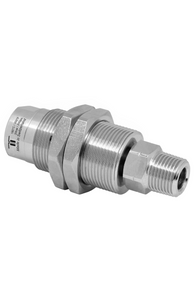

Mosmatic DXGS Steam Swivel - 37.093 - G1 1/4" NPTF to G2 G3/8" M

Mosmatic DXGS Steam Swivel - 37.093 - G1 1/4" NPTF to G2 G3/8" M

  • $302.00
  • Save $8.35
Shipping calculated at checkout.

+ -
 More payment options

Description

The Mosmatic DXGS Steam Swivel 37.093 is a premium rotary coupling designed for steam cleaners and self-rotating equipment requiring high-temperature performance and reliable rotation. Featuring a robust triple bearing system—2x radial ball bearings and 1x thrust ball bearing—along with a durable ceramic seal system, this swivel ensures smooth operation, extended service life, and superior sealing under demanding steam applications.

Manufactured from nickel-plated brass for corrosion resistance and durability, the DXGS 37.093 includes weep holes for seal failure detection, providing early maintenance alerts and enhanced operational safety. Its integrated flange design allows for quick and secure installation. The swivel supports up to 300 PSI and a maximum temperature of 350°F, making it ideal for steam-based rotary systems.

Safety Note: Always start the swivel in the downward position. Regularly monitor for seal failure through weep holes and use proper protective equipment.

Applications

  • Steam cleaning systems

  • Self-rotating steam-powered cleaning tools

  • Industrial high-temperature rotary connections

  • Commercial steam cleaning assemblies

  • Equipment requiring continuous, reliable steam-powered rotation

Features

  • Triple bearing system: 2x radial ball bearings and 1x thrust ball bearing

  • High-temperature ceramic seal system for long-lasting durability

  • Thread In: 1/4” NPTF | Thread Out: G3/8” M

  • Nominal Width (NW): 1/4”

  • Max Pressure: 300 PSI

  • Max Temperature: 350°F

  • Max RPM: 1000

  • Overall Diameter: 1.34” | Overall Length: 3.15”

  • Seal failure warning via weep holes for proactive maintenance

  • Flange design for easy and secure installation

  • Medium Compatibility: Steam | pH Range: 3–12

Specs

Pressure: 300 psi

Temperature: 350°F

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: Ceramic

Bearing: Stainless steel

Triple bearing system: 2 x radial ball bearings and 1 x thrust ball bearings

Throughput/medium: steam / ph 3-12

Thread In: G1 1/4" NPTF

Thread Out: G2 G3/8" M

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.15

Length 2 (L2): 0.47

Weight: 10.2 oz
