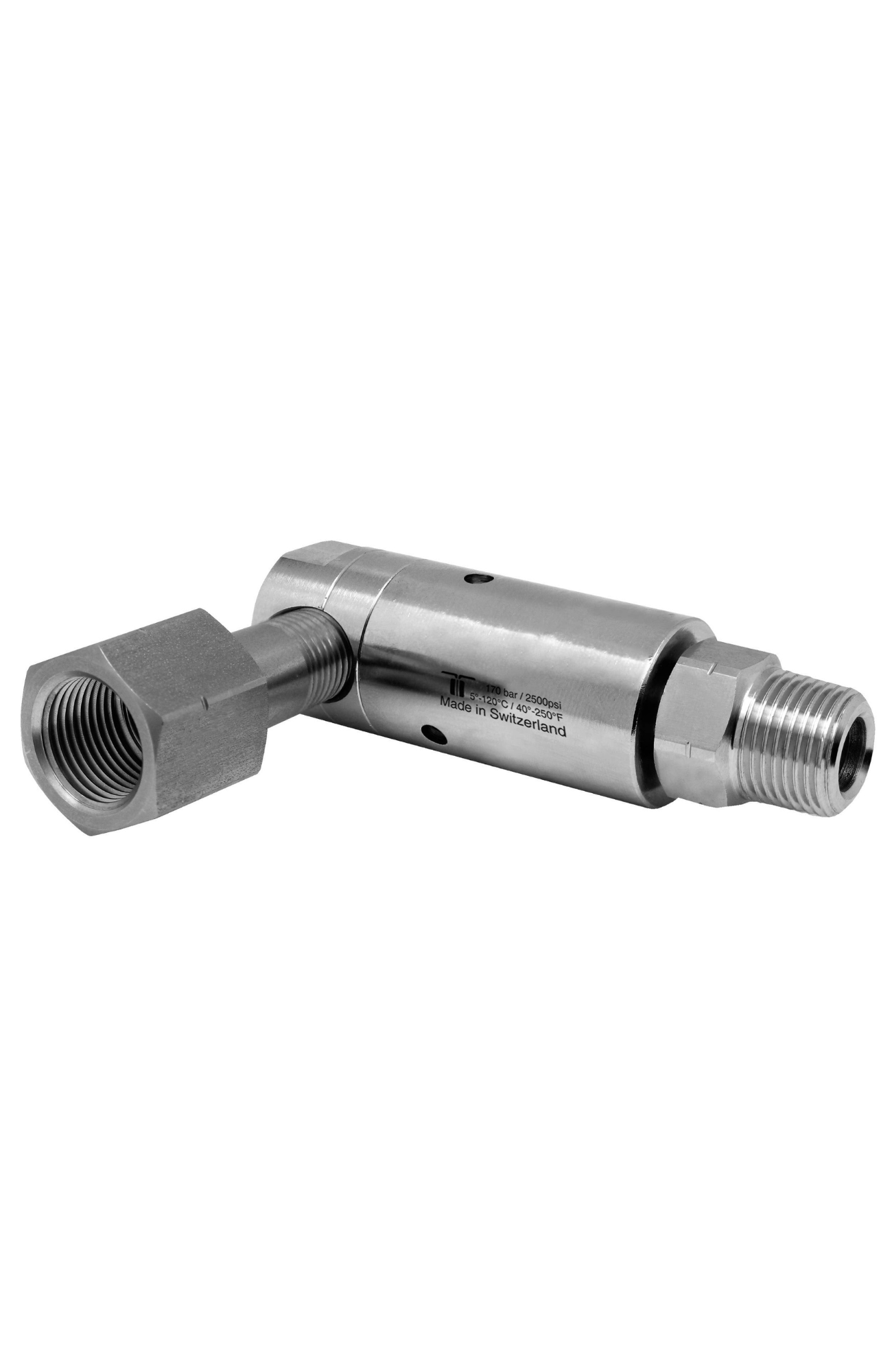

Mosmatic DXL Swivel 90 Degrees - 36.453 - G1 3/8"NPTF G2 3/8"NPTM

The Mosmatic DXL 36.453 90-Degree Swivel is a high-performance brass swivel engineered for high-pressure and high-RPM cleaning applications. Designed with a triple bearing system (2x radial, 1x thrust) and a ceramic seal system, this swivel ensures reliable performance and long-term durability in demanding industrial environments.

With a 90° configuration, it allows for efficient fluid flow and compact installation, making it ideal for use in cleaning systems where space is limited. Built with corrosion-resistant nickel-plated brass, this swivel is both maintenance-free and precision-crafted for optimal efficiency.

Applications:

• High-pressure cleaning equipment

• Parts washers

• Tire and undercarriage cleaning systems

• Self-rotating nozzles

• Automated wash stations

Key Features:

• Brass body with nickel plating for corrosion resistance

• Triple bearing design: 2 radial + 1 thrust bearing

• Ceramic seal system for enhanced longevity

• Thread IN: 3/8" NPTF

• Thread OUT: 3/8" NPTM

• 90° swivel configuration

• Overall Diameter: 0.98”

• Overall Length: 3.30”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 2500 PSI (17 MPa)

• Max RPM: 2000

• Temperature Range: 40°F to 250°F (4°C to 121°C)

• Bulkhead mounting design

• Maintenance-free operation

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 3/8” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 3.30"

Length 2 (L2): 0.47"

Diameter (D) (overall diameter): 0.98"

Weight: 8.5 oz
