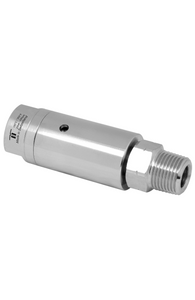

Mosmatic DXLS Steam Swivel - 36.093 - G1 1/4" NPTF to G2 G3/8" M

Description

The Mosmatic DXLS Steam Swivel 36.093 is a high-performance swivel coupling specifically designed for steam cleaning systems and self-rotating applications. Engineered for durability and efficiency, this swivel features a robust triple bearing system—comprising 2x radial ball bearings and 1x thrust ball bearing—combined with a high-quality ceramic seal system to ensure smooth, reliable rotation even under high-temperature conditions.

Constructed from nickel-plated brass for corrosion resistance and longevity, the DXLS swivel also includes weep holes for seal failure detection, providing an additional layer of safety. With easy installation via its integrated flange, this swivel handles pressures up to 300 PSI and temperatures up to 350°F, making it an ideal choice for high-demand steam applications. It features a thread inlet of 1/4” NPTF and a thread outlet of G3/8” M, with an overall diameter of 0.98” and an overall length of 3.15”.

Safety Note: Ensure proper installation and always monitor for seal failure through weep holes.

Applications

• Steam cleaning systems

• Self-rotating cleaning equipment

• Industrial steam applications

• High-temperature rotating tool assemblies

• Equipment requiring reliable rotary motion under steam pressure

Features

• Triple bearing system: 2x radial ball bearings, 1x thrust ball bearing

• Ceramic seal system for high heat resistance and long service life

• Thread In: 1/4” NPTF | Thread Out: G3/8” M

• Nominal Width (NW): 1/4”

• Max Pressure: 300 PSI

• Max Temperature: 350°F

• Max RPM: 1000

• Overall Diameter: 0.98” | Overall Length: 3.15”

• Seal failure warning via weep holes for added safety

• Flange design for simple and secure installation

• Medium: Steam / pH range 3–12

Specs

Pressure: 300 psi

Temperature: 350°F

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: Ceramic

Bearing: Stainless steel

Triple bearing system: 2 x radial ball bearings and 1 x thrust ball bearings

Throughput/medium: steam / ph 3-12

Thread In: G1 1/4" NPTF

Thread Out: G2 G3/8" M

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 0.98"

Length 1 (L1) (overall length) : 3.15

Length 2 (L2): 0.47

Weight: 7.2 oz
