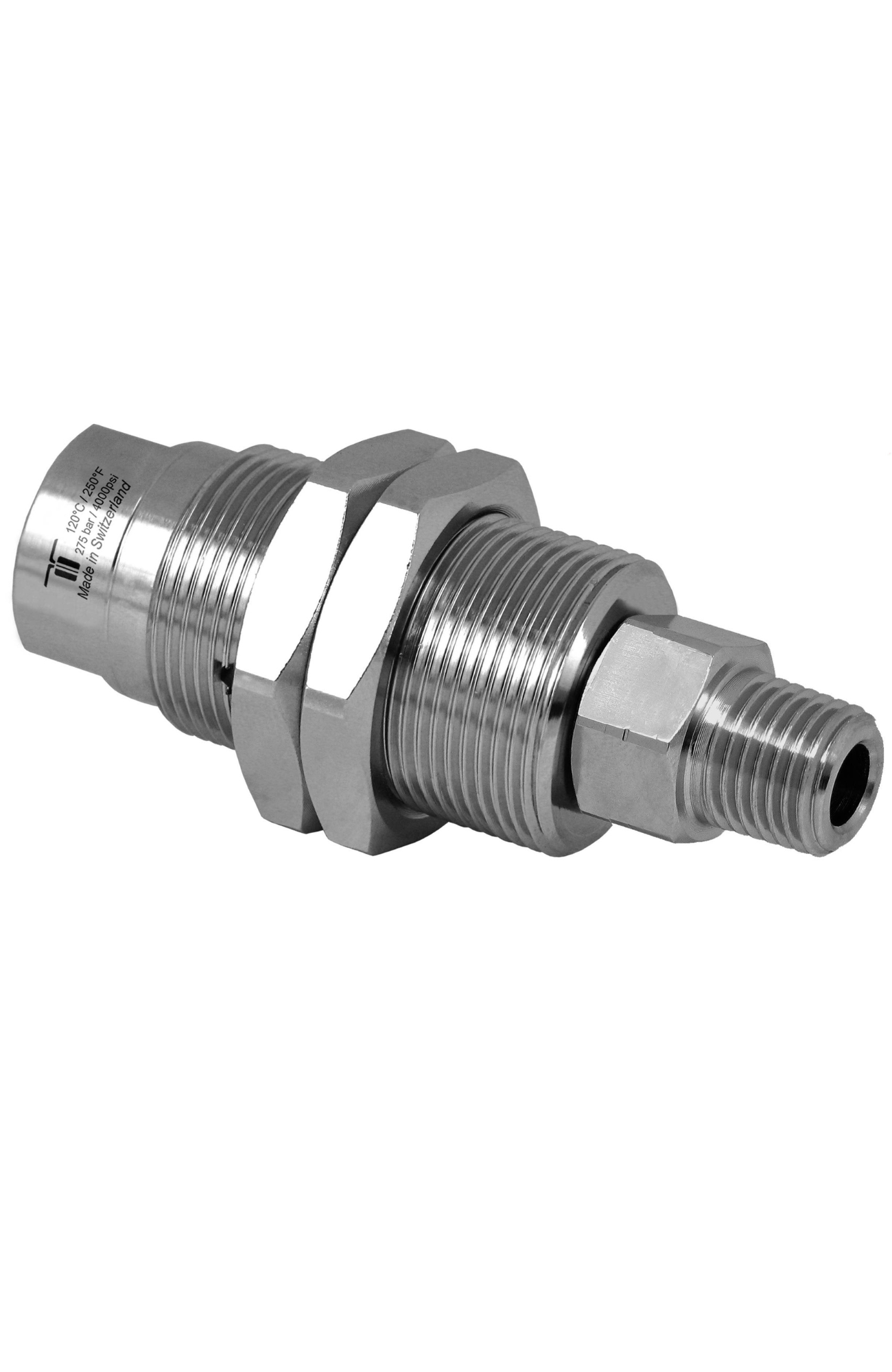

Mosmatic DYG Swivel - 57.051 - G1 1/4"NPTF to G2 1/4"NPTM

The Mosmatic DYG Swivel 57.051 is a premium, high-performance swivel engineered for demanding high-pressure applications. Designed for surface cleaners, tire cleaners, parts washers, and self-rotating systems, this precision-made swivel offers superior durability, smooth rotation, and maintenance-free operation. Constructed from nickel-plated brass with a triple bearing system, it delivers exceptional performance even in extreme conditions.

Applications

• Surface Cleaners

• Parts Washers

• Tire Cleaners

• High-Pressure Systems

• Self-Rotating Applications

Features

• Triple bearing system: 2x radial ball bearings & 1x thrust ball bearing

• Carbide seal system for long-lasting performance

• Corrosion-resistant nickel-plated brass construction

• Maintenance-free design for reliable use

• Bulkhead fitting for easy mounting

• Thread Inlet: ¼” NPTF

• Thread Outlet: ¼” NPTM

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.10”

• Nominal Width (NW): ¼”

• Wrench Size (SW): 0.87”

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 ¼” NPTF

Thread Out: G2 ¼” NPTM

Nominal Width (NW): ¼”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.67"

Wrench Size 3 (SW3): 1.34"

 Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.10

Length 2 (L2): 0.43

Weight: 8.5 oz
