Mosmatic DYL Swivel - 56.053 - G1 1/4"NPTF G2 3/8"NPTM

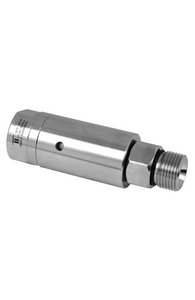

The Mosmatic DYL Swivel 56.053 is a high-precision brass swivel designed for high-pressure, high-speed cleaning applications. Featuring a corrosion-resistant nickel-plated finish, this swivel is ideal for use in parts washers, tire cleaning equipment, and rotary cleaning systems. It includes a robust triple bearing system—two radial ball bearings and one thrust ball bearing—for stable, smooth rotation. The integrated carbide seal system provides long-lasting, leak-proof performance. With a compact form factor and bulkhead fitting for secure mounting, this swivel is built for maintenance-free, high-performance operation in industrial environments.

Applications

• High-pressure cleaning technology

• Parts washers

• Tire and wheel cleaning systems

• High-speed rotary spray equipment

• Industrial and commercial cleaning solutions

Key Features

• Durable brass body with corrosion-resistant nickel plating

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Carbide seal system for enhanced sealing and long service life

• Designed for high-speed, high-pressure environments

• Maintenance-free operation

• Bulkhead fitting for fixed and secure installation

• Thread IN: 1/4” NPTF | Thread OUT: 3/8” NPTM

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 0.98”

• Overall Length: 3.14”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless Steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 3/8” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 3.14

Length 2 (L2): 0.47

Diameter (D1): 0.98

Weight: 7.5 oz
