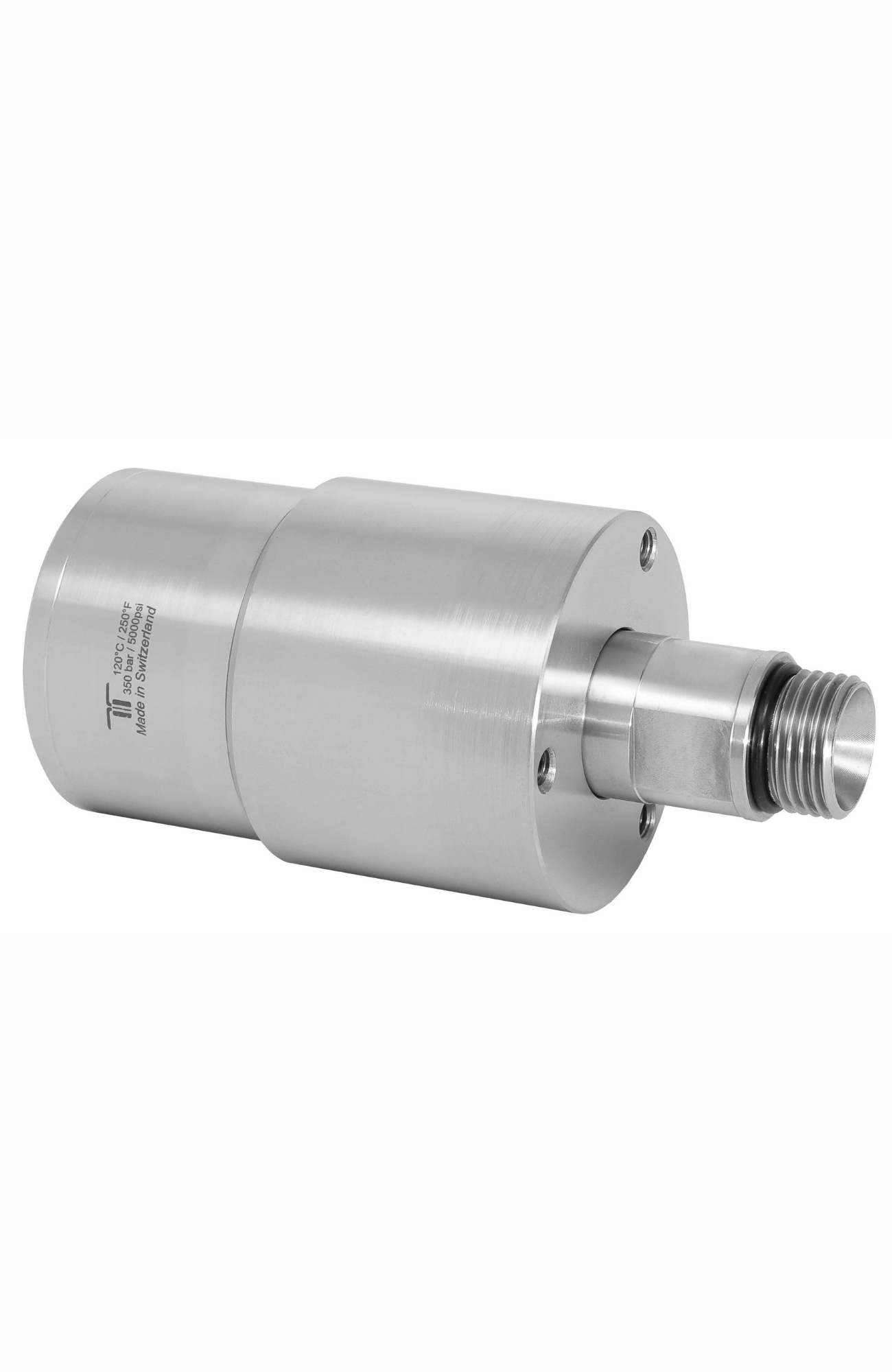

Mosmatic Rotary Unions DYT Swivel - G1 1/4"NPTF G2 1/4"NPTM - 59.051

The Mosmatic DYT- Swivel 59.051 is engineered for demanding high-pressure cleaning applications. Manufactured from high-quality stainless steel, this swivel is built for durability, precision, and long-lasting performance. Ideal for self-rotating equipment, surface cleaners, and parts washers, the DYT swivel ensures smooth rotation while handling both thrust and radial forces.

Its advanced quadruple bearing system features two radial ball bearings and two thrust ball bearings, delivering exceptional stability and efficiency. The carbide seal system ensures maximum leak protection, while integrated weep holes provide an early warning of seal failure for proactive maintenance.

Designed to operate at pressures up to 5000 PSI, the Mosmatic DYT- Swivel 59.051 delivers reliable performance in even the toughest environments.

Applications:

• High-Pressure Cleaning Systems

• Surface Cleaners

• Parts Washers

• Self-Rotating Cleaning Equipment

• Industrial and Commercial Cleaning Solutions

Features:

• Heavy-duty stainless steel construction for corrosion resistance

• Quadruple bearing system: 2x radial ball bearings & 2x thrust ball bearings

• Advanced carbide seal system for long-lasting performance

• Integrated seal failure warning through weep holes

• Thread Inlet: ¼” NPTF | Thread Outlet: ¼” NPTM

• Max Pressure: 5000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 2.36”

• Overall Length: 4.21”

• Nominal Width (NW): ¼”

• Wrench Size (SW): 0.63”

Pressure: 5000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: ¼” NPTF

Thread Out: ¼” NPTM

Nominal Width (NW): ¼”

Wrench Size (SW): 0.63

Diameter (D): 2.36”

Length 1 (L1) : 2.76

Length 2 (L2) (overall length): 4.21"

Length 3 (L3): 0.39"

Weight: 51.7 oz
