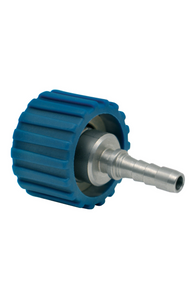

Mosmatic – QVS Quick Connections – 50.131

The Mosmatic 50.131 QVS Quick Connection is a high-performance fitting designed for use with high-pressure cleaners, hose reels, and quick couplings. Manufactured from brass, nickel-plated, and durable plastic, this quick connection offers a compact, lightweight, and robust design, ideal for professional cleaning applications requiring frequent and secure connections.

This model features a G1 (QV) Thread Inlet of M22 x 1.5 F, with an overall diameter of 0.26" and overall length of 2.26". It includes an NBR O-ring seal system (optional EPDM or FKM) for enhanced sealing and compatibility. Rated for up to 3600 PSI, 30 max RPM, and 250°F max temperature, this QVS quick connector delivers precision, reliability, and top-tier performance in demanding environments.

Applications

• High-pressure washers and hose reel systems

• Quick coupling of cleaning equipment in commercial setups

• Industrial-grade pressure cleaning tools

• Compact connections in confined or mobile cleaning systems

Key Features

• Made from brass, nickel-plated, and durable plastic

• Thread Inlet: G1 (QV) M22 x 1.5 F

• Nominal Width: 1/8"

• Overall Diameter: 0.26" | Overall Length: 2.26"

• Includes NBR O-ring seal system (EPDM/FKM optional)

• Rated to 3600 PSI, 30 RPM, and 250°F max temperature

• Compact, lightweight, and high-precision construction

• Easy to install, with secure and reliable performance

Pressure: 3600 psi (27.5 MPa) also avaliable as 7300 psi

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, Nickel plated, Plastic

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 (QV) M22x1.5 F

S1: 1/4"

Nominal Width (NW): 1/8”

Length 1 (L1) (overall length) : 2.26"

Diameter 1 (D1): 0.26"

Diameter 2 (D2): 0.29"

Diameter 3 (D3): 0.39"

Color: Blue

Weight: 2.30 oz
