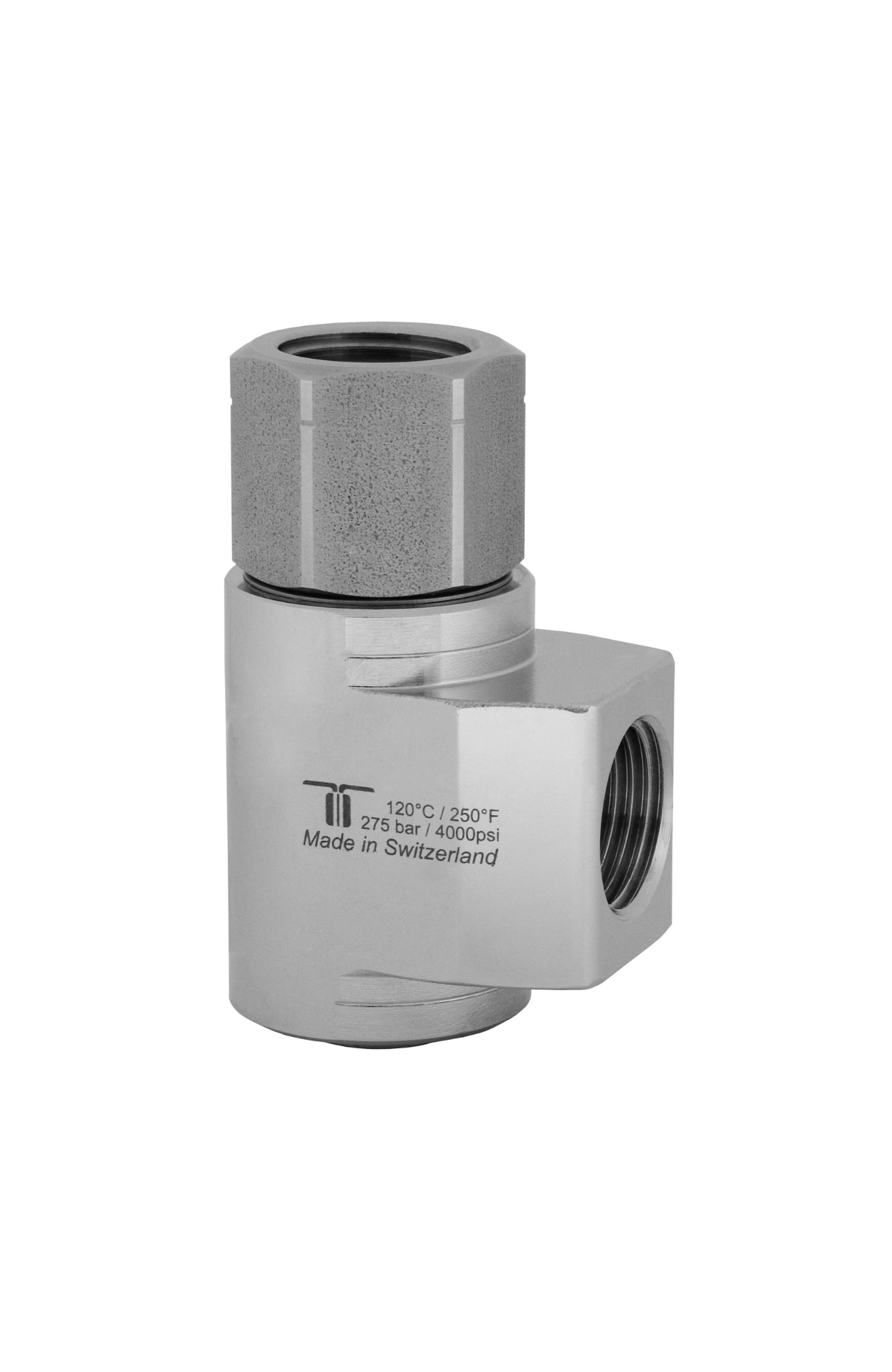

Mosmatic rotary unions WDCL swivel with radial ball bearings G1 1/2" NPTF G2 1/2"NPTF 43.364

Mosmatic rotary unions WDCL swivel with radial ball bearings G1 1/2" NPTF G2 1/2"NPTF 43.364

  • $116.84
  • Save $12.98
Shipping calculated at checkout.


High pressure hose reels, ceiling booms, high pressure cleaners

  • Slide or dual bearings systems
  • Stainless steel
  • Maintenance free

G1 (F) 1/2”NPTF, G2 (M) 1/2”NPTF, NW 1/2”, H 1.81, L1 1.77, L2 1.14, L3 2.87, L4 1.97, L5 0.59, SW1 0.87, max RPM 200, Weight 15.3oz

Technical data

    • Pressure: 4000 psi (27.5 MPa)
    • Temperature: 250°F
    • RPM: see chart (max. rpm)
    • Body: brass, nickel plated
    • Inner part: Stainless steel
    • Seal: O-ring NBR (optional: EPDM or FKM)
    • Bearing: WDC: sliding bearing, WDCL: 2x radial ball bearings, WDCS: 2x radial ball bearings
    • Throughput: pH 3-12
    • Medium: filtered 10 microns, compressed air (290 psi)
