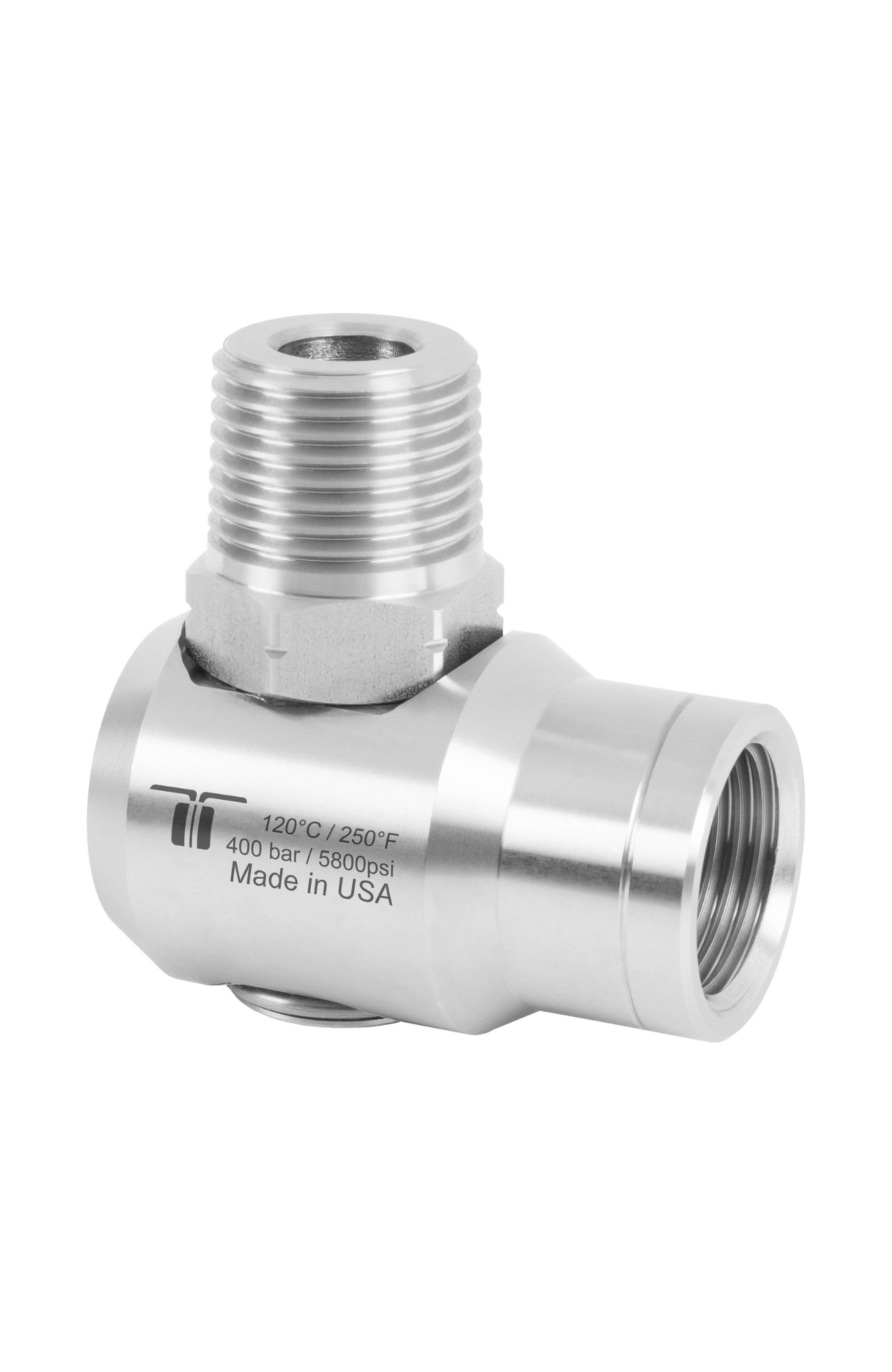

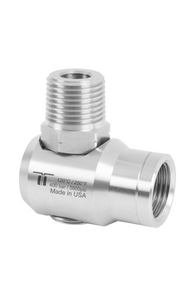

Mosmatic rotary unions WDEI swivel G1 1/2"NPTF G2 1/2"NPTM 43.463B

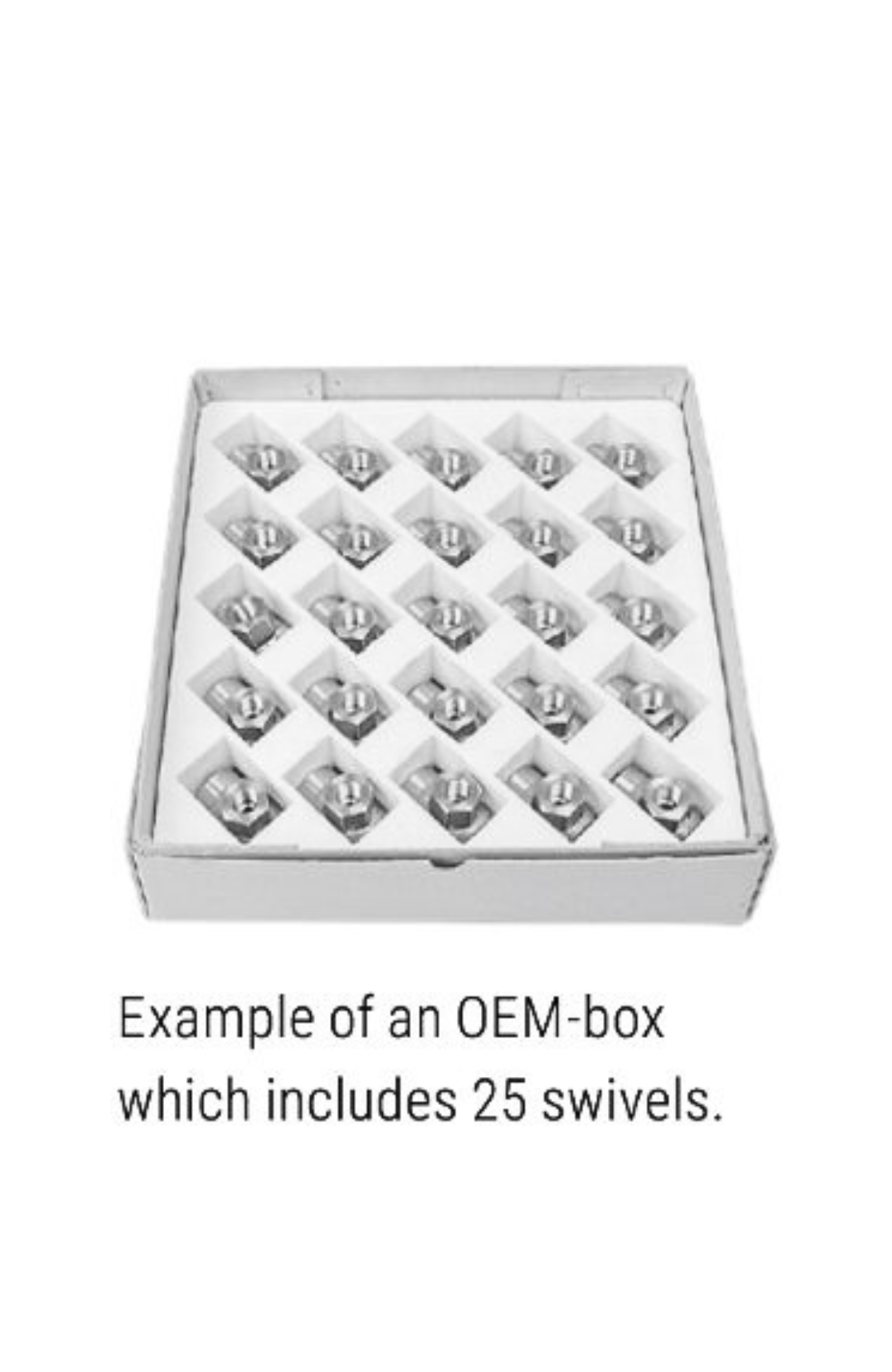

Mosmatic rotary unions WDEI swivel G1 1/2"NPTF G2 1/2"NPTM 43.463B (Case of 25)

  • $1,740.69
  • Save $193.41
Shipping calculated at checkout.


Hose reels

    • Complete stainless steel
    • Maintenance free
    • Compact design
    • Sliding bearings system

    G1 (F) 1/2”NPTF, G2 (M) 1/2”NPTM, NW 1/2”, L1 1.97, L2 2.09, L3 1.34, L4 1.50, L5 0.47, D1 1.25, SW 0.87,Box 25, Weight 220oz

    Technical data

          • Pressure: 5800 psi (40 MPa)
          • Temperature: 250°F
          • RPM: max. 30 rpm
          • Torque: max. 37 ft-lbs
          • Body: stainless steel
          • Inner part: Stainless steel
          • Seal: O-ring NBR (optional: EPDM or FKM)
          • Bearing: sliding bearing
          • Throughput: pH 3-12
          • Medium: filtered 10 microns, compressed air (290 psi)
