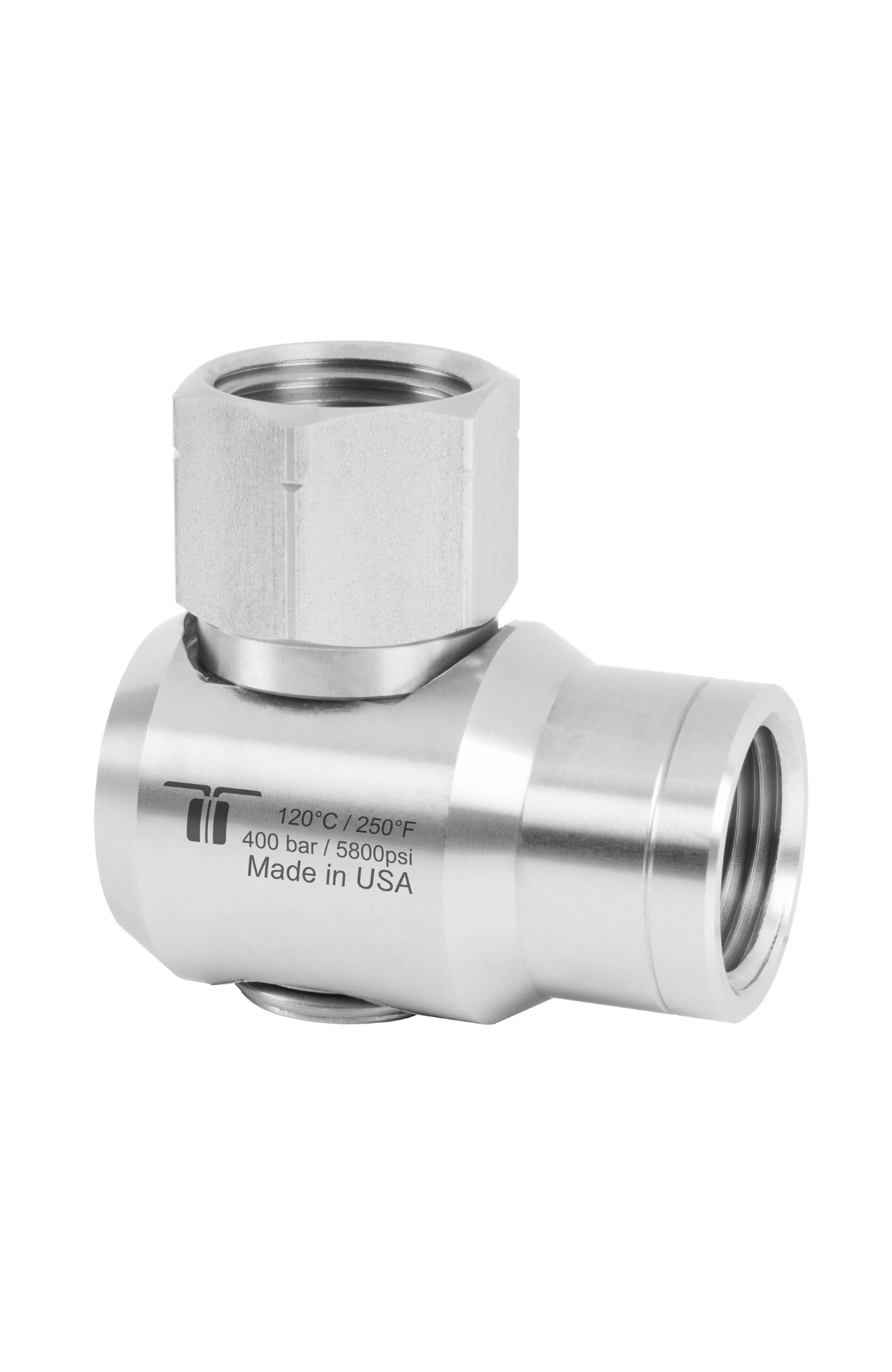

Mosmatic WDEI Swivel – 43.474 – 3/4" NPTF x 3/4" NPTF

The Mosmatic WDEI Swivel 43.474 is a high-performance stainless steel swivel engineered for use in heavy-duty hose reel and fluid transfer systems. Designed for high-pressure environments, it features a sliding bearing for smooth rotation under load and a dependable O-ring NBR seal, with optional EPDM or FKM for compatibility with aggressive chemicals or elevated temperatures. With 3/4” NPTF inlet and outlet threads, this swivel supports pressures up to 3000 psi, operates at 30 RPM, and handles temperatures up to 250°F, making it an ideal solution for industrial washdown, cleaning, and transfer operations.

Applications

• High-pressure hose reels

• Industrial washdown systems

• Commercial pressure washers

• Fluid and chemical handling systems

• OEM and equipment manufacturing

Features

• Stainless steel construction ensures corrosion resistance and long service life

• Sliding bearing enables smooth and controlled rotation

• Thread IN: 3/4” NPTF | Thread OUT: 3/4” NPTF

• Dimensions: Overall Diameter – 2.16” | Overall Length – 2.95”

• Nominal Width (NW): 3/4”

• Rated for 3000 psi operating pressure

• Max operating temperature: 250°F

• Supports rotational speeds up to 30 RPM

• Sealing system: O-ring NBR (optional EPDM or FKM for specialized media)

Pressure: 3000 psi (20 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/4" NPTF

Thread Out: G2 3/4" NPTF

Nominal Width (NW): 3/4"

Wrench Size (SW): 1.42

Length 1 (L1): 2.95

Length 2 (L2) (overall length): 2.95

Length 3 (L3): 1.89

Length 4 (L4): 1.87

Diameter (D1): 2.16

Weight: 29.6 oz
