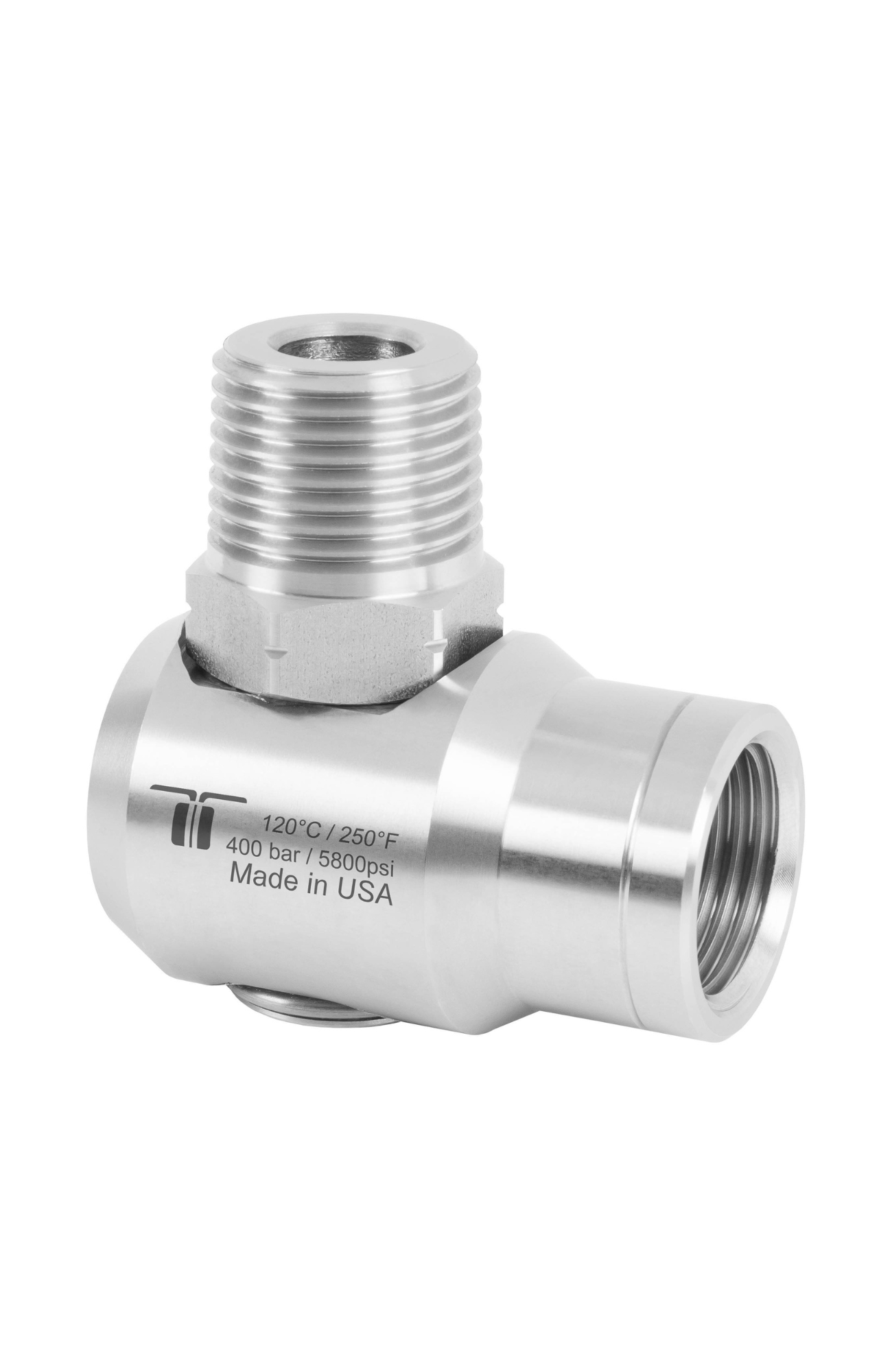

Mosmatic rotary unions WDEI swivel G1 3/4"NPTF G2 3/4"NPTM 43.464B

Mosmatic rotary unions WDEI swivel G1 3/4"NPTF G2 3/4"NPTM 43.464B (Case of 10)

  • $1,790.78
  • Save $198.97
Shipping calculated at checkout.


Hose reels

    • Complete stainless steel
    • Maintenance free
    • Compact design
    • Sliding bearings system

    G1 (F) 3/4”NPTF, G2 (M) 3/4”NPTM, NW 3/4”, L1 2.95, L2 3.15, L3 1.89, L4 2.13, L5 0.63, D1 2.00, SW 1.42,Box 10, Weight 300oz

    Technical data

          • Pressure: 5800 psi (40 MPa)
          • Temperature: 250°F
          • RPM: max. 30 rpm
          • Torque: max. 37 ft-lbs
          • Body: stainless steel
          • Inner part: Stainless steel
          • Seal: O-ring NBR (optional: EPDM or FKM)
          • Bearing: sliding bearing
          • Throughput: pH 3-12
          • Medium: filtered 10 microns, compressed air (290 psi)
