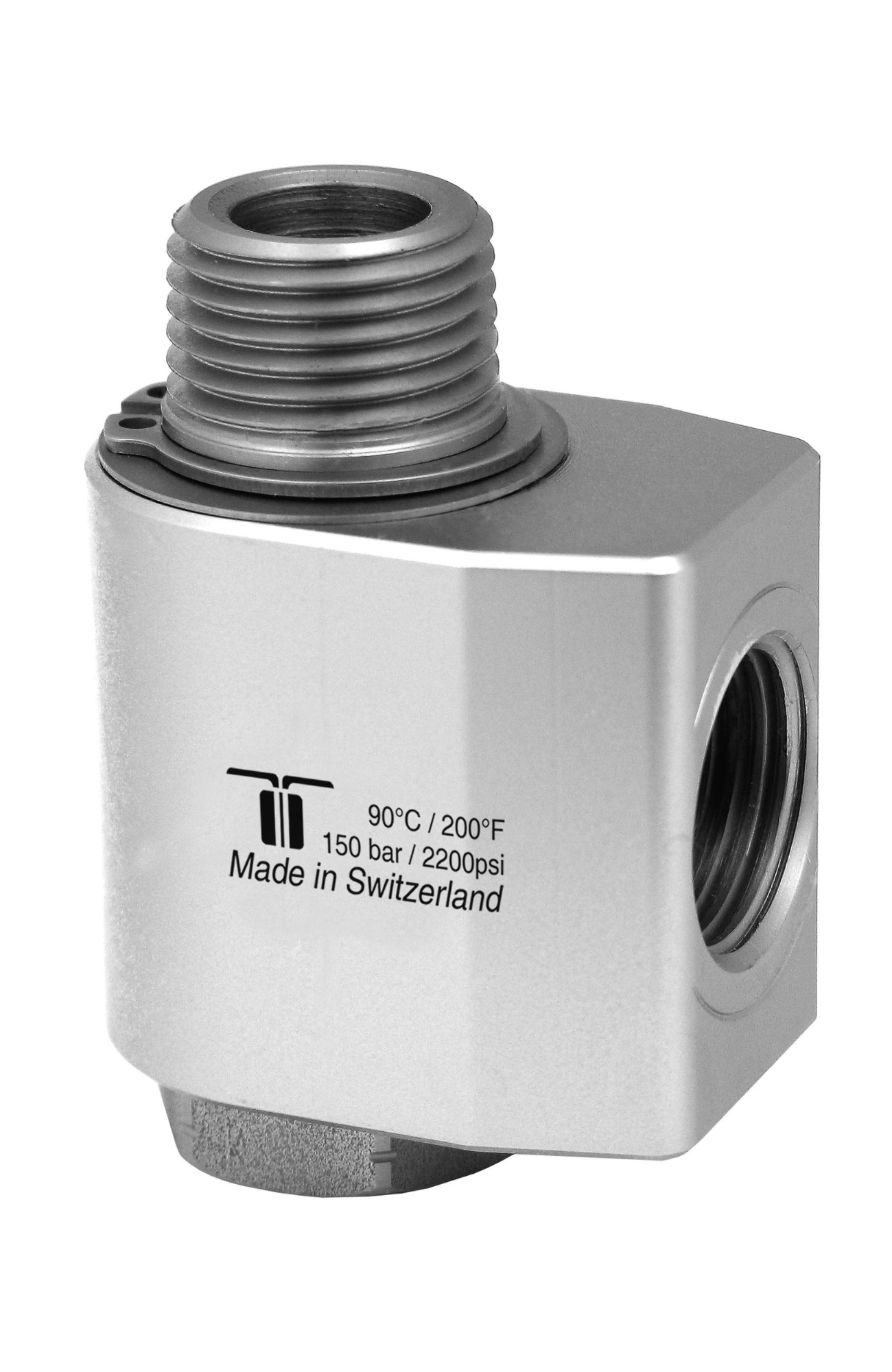

Mosmatic rotary unions WDG swivel G1 1/2"NPTF G2 1/2"NTPM 40.231

Mosmatic rotary unions WDG swivel G1 1/2"NPTF G2 1/2"NTPM 40.231

  • $90.87
  • Save $10.10
Shipping calculated at checkout.


Celling booms, high pressure hose reels, high pressure cleaners

  • Compact design
  • Stainless steel
  • Maintenance free
  • Corrosion resistant

G1 (F) 1/2” NPTF, G2 (M) 1/2”NPTM, NW 1/2”, H 1.57, L1 1.77, L2 1.14, L3 2.48, L4 1.42, L5 0.43, L6 0.28, SW 0.94, Weight 13.5oz

Technical data

    • Pressure: 2200 psi (15 MPa), 4000 psi (27.5 MPa
    • Temperature: 200°F - 250°F
    • RPM: max. 30 rpm
    • Body: brass, nickel plated
    • Inner part: Stainless steel
    • Seal: O-ring NBR (optional: EPDM or FKM)
    • Bearing: sliding bearing
    • Throughput: pH 3-12
    • Medium: filtered 10 microns, compressed air (290 psi)

Mosmatic Ceiling Boom Z Series Main Diagram



Mosmatic Legend
