Mosmatic WDG Swivel – 40.009

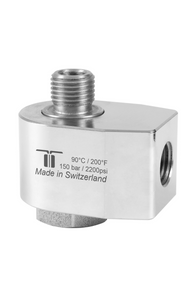

Mosmatic Swivel WDG – 40.031 – 3/8" NPTF x 1/4" NPTM

  • $93.00
  • Save $10
Shipping calculated at checkout.

+ -
 More payment options

Description

The Mosmatic WDG Swivel 40.031 is a compact, high-quality swivel designed to deliver efficient performance in high-pressure hose reels, ceiling booms, and cleaning systems. Made from nickel-plated brass, this swivel is built for corrosion resistance and long service life. It features a sliding bearing for smooth rotation and an O-ring NBR seal for dependable leak protection. With a ⅜” NPTF inlet and ¼” NPTM outlet, this swivel is ideal for systems that require connection adaptation. It supports up to 2200 psi, operates at 30 RPM, and withstands temperatures up to 200°F.

Applications

  • Pressure washers and hose reels

  • Surface cleaners and spray guns

  • Compact and mobile washdown systems

  • Equipment with mixed NPT thread sizes

  • Industrial and commercial cleaning applications

Features

  • Durable nickel-plated brass construction for corrosion resistance

  • Sliding bearing allows smooth and stable rotation

  • Thread IN: 3/8” NPTF | Thread OUT: 1/4” NPTM

  • Compact size: Height – 1.02” | Overall Length – 1.89”

  • Nominal Width (NW): 1/4”

  • Rated for 2200 psi operating pressure

  • Handles temperatures up to 200°F

  • Supports up to 30 RPM rotational speed

  • Equipped with O-ring NBR seal for leak-free operation

Mosmatic Legend

Specs

Pressure: 2200 psi

Temperature: 200°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 1/4" NPTM

Nominal Width (NW): 1/4"

Wrench Size (SW): 0.87

Height (H): 1.02

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 1.89

Length 3 (L3): 1.14

Length 4 (L4): 1.14

Length 5 (L5): 0.47

Lenght 6 (L6): 0.25

Weight: 9.6 oz
