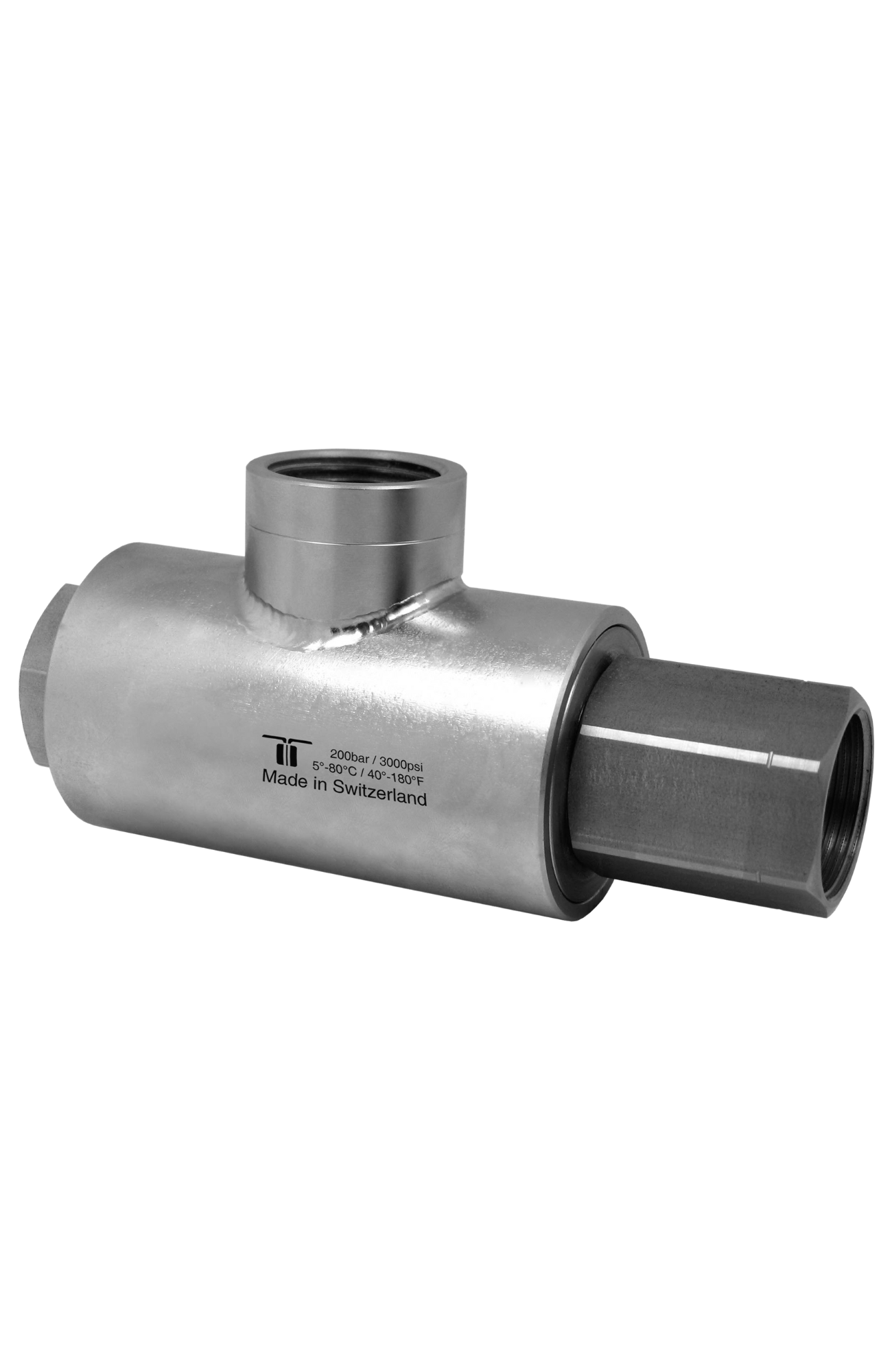

Mosmatic WDRS Swivel - 41.562 - G1 1 1/2" NPTF to G2 1 1/2" NPTF

The Mosmatic WDRS Swivel 41.562 is a high-performance stainless steel swivel coupling designed for automatic car wash systems, industrial hose reels, and high-flow pressure applications. Engineered for smooth, reliable operation, this swivel ensures stable rotation and effective sealing under tough working conditions.

Featuring a dual bearing system with 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.562 provides consistent low-friction performance, minimizes wear, and extends operational life. Its robust stainless steel construction delivers excellent corrosion resistance, making it ideal for use with water, chemicals, and compressed air.

This model includes a Thread In of 1 ½” NPTF and a Thread Out of 1 ½” NPTF, with a nominal width (NW) of 1 ½”, an overall diameter of 2.80”, and an overall length of 6.77”. Rated for pressures up to 3000 PSI, it operates at a maximum speed of 76 RPM and withstands temperatures from 40°F to 180°F. The swivel supports media with a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

• Automatic car wash systems

• Industrial high-pressure hose reels

• High-flow water and chemical transfer systems

• Pneumatic tool and compressed air connections

• Rotary spray tools and surface cleaners

• Commercial cleaning and fluid handling systems

Features

• Stainless steel construction for superior durability and corrosion resistance

• Dual bearing system with 2x radial ball bearings for smooth, stable rotation

• NBR O-ring seal for reliable leak prevention and extended service life

• Thread In: 1 ½” NPTF | Thread Out: 1 ½” NPTF

• Nominal Width (NW): 1 ½”

• Max Pressure: 3000 PSI

• Max Temperature Range: 40°F to 180°F

• Max RPM: 76

• Overall Diameter: 2.80” | Overall Length: 6.77” | Height: 2.36”

• Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: max 76

Material Type:  Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 1 1/2" NPTF

Thread Out: G2 1 1/2" NPTF

Nominal Width (NW): 1 1/2"

Wrench Size 1 (SW1): 2.17

Wrench Size 2 (SW2): 2.17

Height (H): 2.36

Length 1 (L1) (overall length) : 6.77

Length 2 (L2): 4.33

Length 3 (L3): 3.90

Diameter (D) (overall diameter): 2.80

Weight: 101 oz
