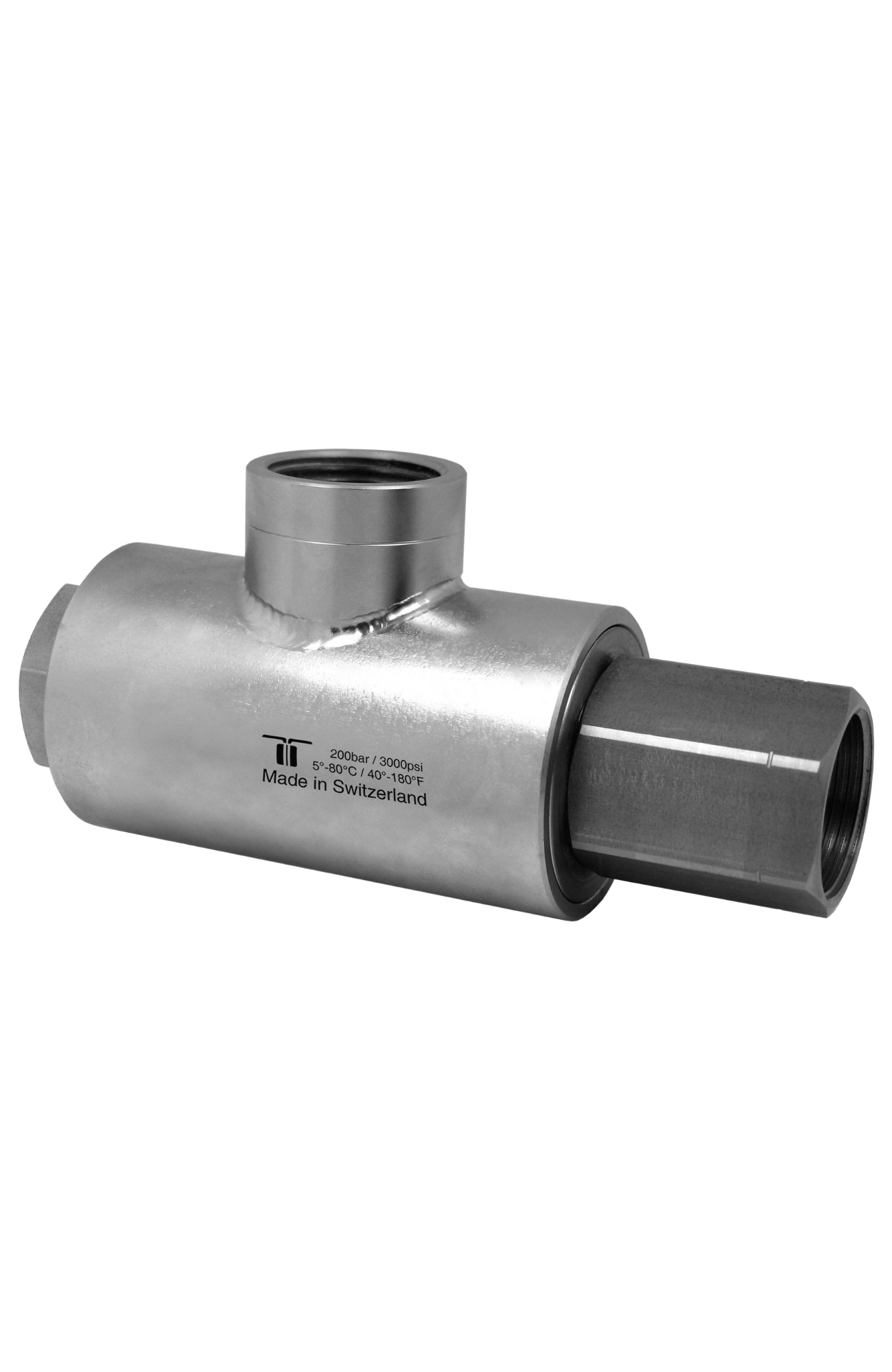

Mosmatic WDRS Swivel - 41.462 - G1 1" NPTF to G2 1" NPTF

The Mosmatic WDRS Swivel 41.462 is a premium stainless steel swivel coupling designed for high-pressure hose reels, automatic car wash systems, and industrial high-flow applications. Built for durability and dependable performance, this swivel ensures smooth, stable rotation and effective leak prevention even in the toughest operating environments.

Equipped with a dual bearing system featuring 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.462 provides reliable, low-friction operation while extending service life and reducing maintenance requirements. Its corrosion-resistant stainless steel body makes it ideal for water, chemical, and compressed air use.

This model features a Thread In of 1” NPTF and a Thread Out of 1” NPTF, with a nominal width (NW) of 1”, an overall diameter of 2.20”, and a length of 6.16”. Rated for up to 3000 PSI, it operates efficiently at speeds up to 110 RPM and temperatures ranging from 40°F to 180°F. It supports media within a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

• Automatic car wash systems

• Industrial high-pressure hose reels

• High-flow water and chemical transfer lines

• Pneumatic and compressed air tool systems

• Rotary spray equipment and surface cleaners

• Commercial cleaning and spraying systems

Features

• Rugged stainless steel construction for corrosion resistance and durability

• Dual bearing system with 2x radial ball bearings for smooth rotational performance

• NBR O-ring seal for reliable leak prevention and long service life

• Thread In: 1” NPTF | Thread Out: 1” NPTF

• Nominal Width (NW): 1”

• Max Pressure: 3000 PSI

• Max Temperature Range: 40°F to 180°F

• Max RPM: 110

• Overall Diameter: 2.20” | Overall Length: 6.16” | Height: 1.89”

• Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: max 110

Material Type:  Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 1" NPTF

Thread Out: G2 1" NPTF

Nominal Width (NW): 1"

Wrench Size 1 (SW1): 1.42

Wrench Size 2 (SW2): 1.42

Height (H): 1.89

Length 1 (L1) (overall length) : 6.16

Length 2 (L2): 3.94

Length 3 (L3): 3.72

Diameter (D) (overall diameter): 2.20

Weight: 57 oz
