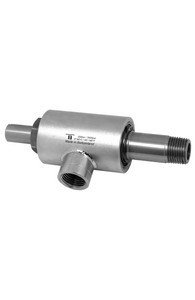

Mosmatic rotary unions WDRS swivel no front to back forces allowed G1 3/4"NPTF G2 3/4"NPTF 41.362

Mosmatic rotary unions WDRS swivel no front to back forces allowed G1 3/4"NPTF G2 3/4"NPTF 41.362

  • $424.52
  • Save $47.17
Shipping calculated at checkout.


Automatic car wash, industrial application, high pressure hose reels, high flow

    • Dual bearing system
    • Complete stainless steel construction
    • Rugged design
    • Maintenance free

    G1 (F) 3/4”NPTF, G2 (F) 3/4”NPTF, NW 3/4”, SW1 1.26, SW2 1.26, H 1.69, L1 5.51, L2 3.54, L3 3.35, D 1.97, max RPM 130, Weight 36.0 oz

    Technical data

          • Pressure: 150-3000 psi (1-20 MPa)
          • Temperature: 40°F-180°F
          • RPM: see chart (max. rpm)
          • Torque: max. 37 ft-lbs
          • Body: stainless steel
          • Inner part: Stainless steel
          • Seal: O-ring NBR (optional: EPDM or FKM)
          • Bearing: 2x radial ball bearings
          • Throughput: pH 3-12
          • Medium: filtered 10 microns, compressed air (290 psi)
