Mosmatic Swivel – 43.453 – 1/2" NPTF x 1/2" NPTM – WDE – 4000 psi – 9.3 oz

Mosmatic Swivel – 43.453 – 1/2" NPTF x 1/2" NPTM – WDE – 4000 psi – 9.3 oz

  • Save $0
Shipping calculated at checkout.

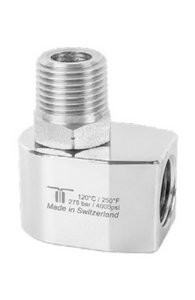

The Mosmatic 43.453 WDE Swivel is a robust, inline 360° rotating swivel built for heavy-duty high-pressure systems. With a 1/2" NPTF (female) inlet and 1/2" NPTM (male) outlet, it is ideal for hose reels, boom arms, and stationary or mobile cleaning systems.

Constructed from nickel-plated brass, and featuring stainless steel internals, a sliding bearing system, and a carbide-reinforced O-ring seal, it offers long-lasting, maintenance-free operation up to 4000 psi.

Applications

  • Industrial pressure washer setups

  • Ceiling booms and wall booms

  • Heavy-duty hose reels and spray systems

  • Food and chemical washdown equipment

  • Inline hose swivel in high-volume flow systems

Features

  • Inline swivel with 1/2" NPTF to 1/2" NPTM threading

  • High-flow performance with large internal diameter

  • Sliding bearing system for smooth 360° rotation

  • Nickel-plated brass body

  • O-ring NBR seal with optional EPDM or FKM

  • Maintenance-free construction

  • Withstands pressure up to 4000 psi

Product Type: Inline Swivel – WDE Series
Part Number: 43.453
Pressure: 4000 psi (275 bar)
Temperature: 250°F (120°C)
RPM: max. 30 rpm
Material Type (Body): Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR + support ring (optional EPDM or FKM)
Bearing: Sliding bearing
Throughput / Medium: pH 3–12 / filtered 10 microns / compressed air (290 psi)
Thread In (G1): 1/2" NPTF
Thread Out (G2): 1/2" NPTM
Nominal Width (NW): 1/2"
Height (H): 1.1"
Length 1 (L1): 1.77"
Length 2 (L2): 2.17"
Length 3 (L3): 1.14"
Length 4 (L4): 1.52"
Length 5 (L5): 0.59"
Length 6 (L6): 0.10"
Wrench Size (SW): 0.87"
Weight: 9.3 oz
