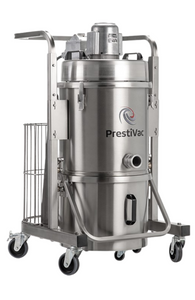

PrestiVac EX-10 RCT HEPA Explosion Proof Vacuum Electric Immersion Separator Wet Mix

  • $7,895.00
Shipping calculated at checkout.


Industrial Vacuums for Hazardous Materials

Explosion Proof Dust Ignition Proof Electrically Operated Immersion Separator Wet Mix Vacuum Cleaners

Certified Explosion proof/Dust ignition proof industrial vacuum certified Class I, Division 1, Group D and Class II, Division 1, Groups E, F and G Hazardous Locations as defined in the National Electric Code (NEC) and NFPA 70

Certified EPL Db and EPL Gb (Equipment Protection Level)

PrestiVac explosion proof/dust ignition proof vacuums are specifically designed to safely vacuum explosive, combustible and conductive dusts. Our immersion separator system neutralizes explosive, conductive, combustible dust by submerging it into a neutralizing liquid bath, rendering it inert and eliminating any risk of fire or explosion. Our explosion proof vacuums comply with NFPA 484 guidelines and are an effective tool for good housekeeping practise as per OSHA. All the electrical components, including the motor and starter are totally enclosed so there is no source of ignition. Our explosion proof/dust ignition proof vacuums are completely grounded and static dissipating because they are built entirely with non-sparking metals and do not have any painted components so there is no risk of fire or explosion from a spark or static build up.

Features:
  • Single Phase Explosion Proof Motor
  • Static dissipating ESD safe
  • All Stainless steel construction makes it a solid unit that is easy to clean and sterilize
  • Stainless steel Drain valve assembly for easy emptying
  • Complete with static dissipating suction hose and accessories
  • RCT Removable Collection Tank system makes it easy to empty and clean
  • Stainless steel storage bin for hose and accessories
  • Includes Explosion Proof Electrical Plug*
    • Plug 15A for Class I, Groups B, C, D & Class II Groups F & G
    • Not included for Group E


Filtration System:

  • 4-stage filtration system with cyclonic action for maximum performance and efficiency
  • HEPAPlus* Filtration with an efficiency of 99.995% @ 0.2 micron
  • Washable Conductive ESD safe filters
  • Stainless steel mist eliminator
  • Largest HEPAPlus* Filtration with over 21 sq. ft. of Media

Applications:

  • Combustible, Conductive, Explosive, Flammable, Hazardous dusts
  • Class II Group E* metal dusts (Aluminum, Bronze, Chromium, Iron Carbonyl, Magnesium, Tantalum, Titanium, Zinc, Zirconium, and other commercial alloys)
  • Pyrotechnics
  • Ammunitions
  • Explosives
  • Glowing media

Specifications:

  • Model: EX1-10/15 RCT IS
  • Air Watts: 321
  • Electricity: 120v 50/60Hz / 12a / 1300w
  • Air Flow (CFM): 145
  • Vacuum Pressure (H20): 72
  • Collection Type: Dry
  • Collection Capacity: 7 gallons (26L)
  • Capacity (gal): 10

Included Accessories:

  • Static Dissipating suction hose assembly (1.5" X 10')
  • Stainless steel double bend wand assembly
  • Floor tool
  • Crevice tool
  • Round brush

Optional Accessories:

  • Extension wand
  • Single bend wand
  • Wall brush
  • Dust extraction Arm

Options:

  • Grounding reel
  • Safety valve for gas vapors

Filtration Options:

  • Activated Carbon Filtration System to adsorb fumes and vapors
Special Note: It is important that the metal dust recovered is COLD. No hot embers are to be recovered.
